2-28 SM-Series SME DB Tape Feeder User's Manual 2.8. Error Code Figure2.23 SME 8mm, W4P1 Ta pe Feeder State LED / 12~88mm Tape Feeder State Lamp 1: State LED 2: Home Button 3: 7 Segment SME 8mm/ W4P1 T ape Fee der…
2-27
Operation of the Feeder
The method to set the tape feeding speed by pressing the button on the tape feeder
operation panel is as follows:
1) Pressing and holding the 'Pitch Change' button changes the status of the 7-Segment to
blinking.
2) Press the 'Home' button and hold to change the state of the 7-Segment to .
3) It is possible to change the tape
feeding speed by selecting one of the 3 types displayed
on the 7-Segment. Select the tape feeding speed by pressing the Forward or Backward
button.
Fe
eding Speed of tape Indicated with the 7-Segment
: Normal
: Slow
: Slowly
4) Press the 'Pitch Change' button briefly to finish setup of t
he tape feeding speed.
Caution Unless the pitch is set properly, part loss may occur.
Therefore, exercise care.
2-28
SM-Series SME DB Tape Feeder User's Manual
2.8. Error Code

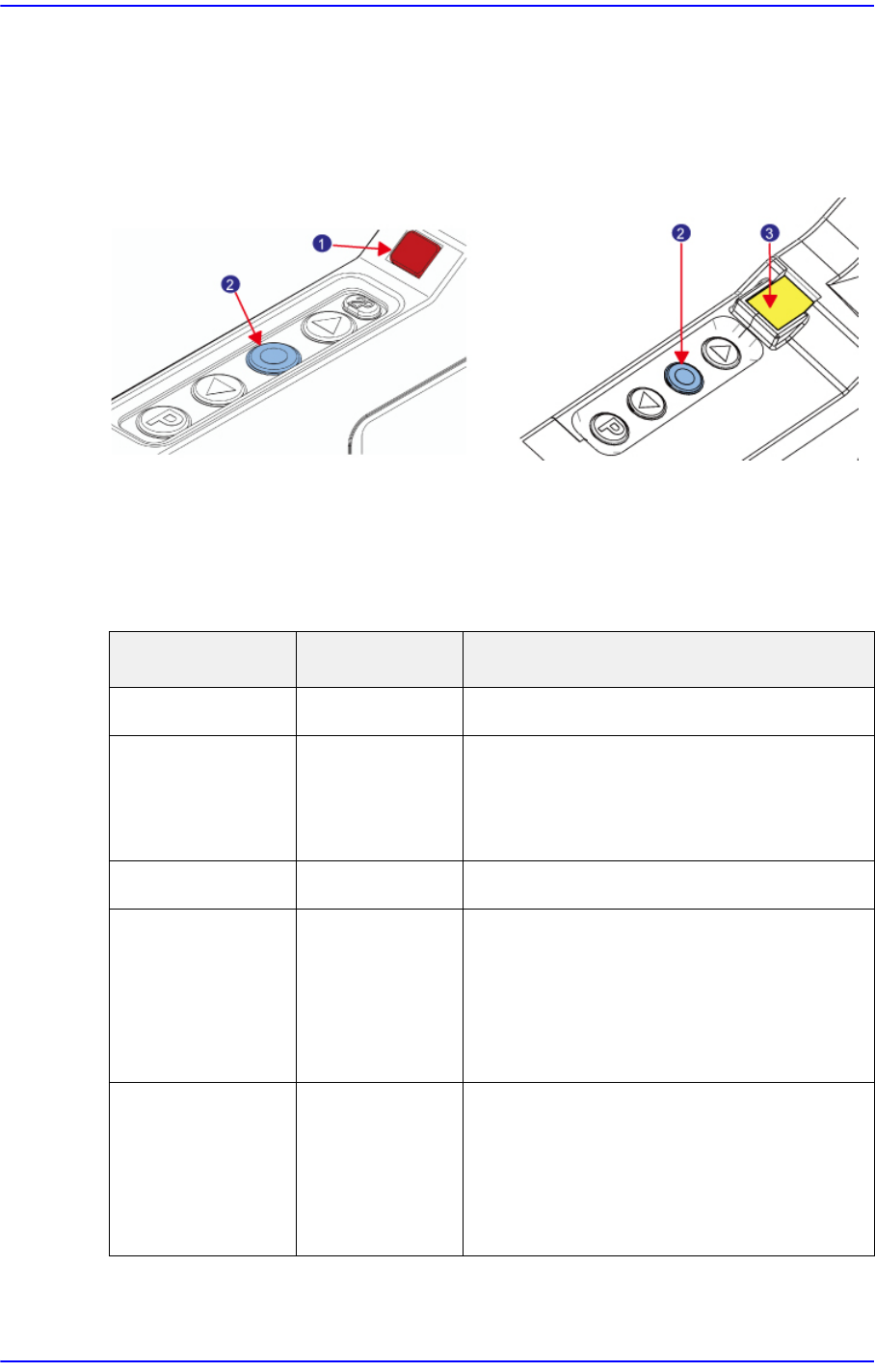

Figure2.23 SME 8mm, W4P1 Tape Feeder State LED / 12~88mm Tape Feeder State Lamp
1: State LED
2: Home Button
3: 7 Segment
SME 8mm/ W4P1 Tape Feeder
(a) SME 8mm/W4P1 tape feeder (b) SME 12~88mm tape feeder
Feeder State LED Display State Explanation
Not Powered Off No power supply
Error Red Homing movement not performed
Not detected by the drain sensor
Error occurred
Feeding Orange Under feeding
Normal (Ready) Green Normal (Ready)
The function to warn against
communication disconnection is
being used when a Non - IT
machine is using the feeder.
Slot Error Magenta Failed to connect communication
after installing the feeder.
Remove the feeder from the
machine and clean the probe
pin of the feeder.
2-29
Operation of the Feeder
Note How to set the alarm against communication disconnection of a
feeder in a Non - IT machine.
It is possible to change the setup as to whether the corresponding
function will be used or not once the feeder is installed in the feeder
base by moving the clamp lever up while pressing the P button of the
feeder switch.
12~88mm Tape Feeder State Indication Lamp
Device Net Error Magenta LED
blinking
The feeder is installed in a Non - IT
machine.
Press the home button to finish
homing and perform production
when the status LED color is
changed to purple.
Communication disconnection
occurred when the IT machine is
using the feeder.
Rerun the IT - Feeder program.
Not Homing Blue The function to warn against
communication disconnection is
not used when a Non - IT machine
is using the feeder.
Feeder State LED Display State Explanation
Feeding Under feeding
Splicing Mode Splicing tape detected
Normal (Ready) Number
indicated
Normal operation
Feeder State LED Display State Explanation
