3.1.1. Cautions related to the maintenance of the Tape feeder

For the Tape feeder, it is not recommended to lubricate and check the inside of the cover.

For the Tape feeder feeding 0603 chips, if it is disassembled without authorization, a

problem may occur with the feeder operation due to foreign materials such as fine chips

which enter the feeder. Contamination of the sprocket and sensor by lubricant may cause

defective feeder operation or a reduction of feeding accuracy.

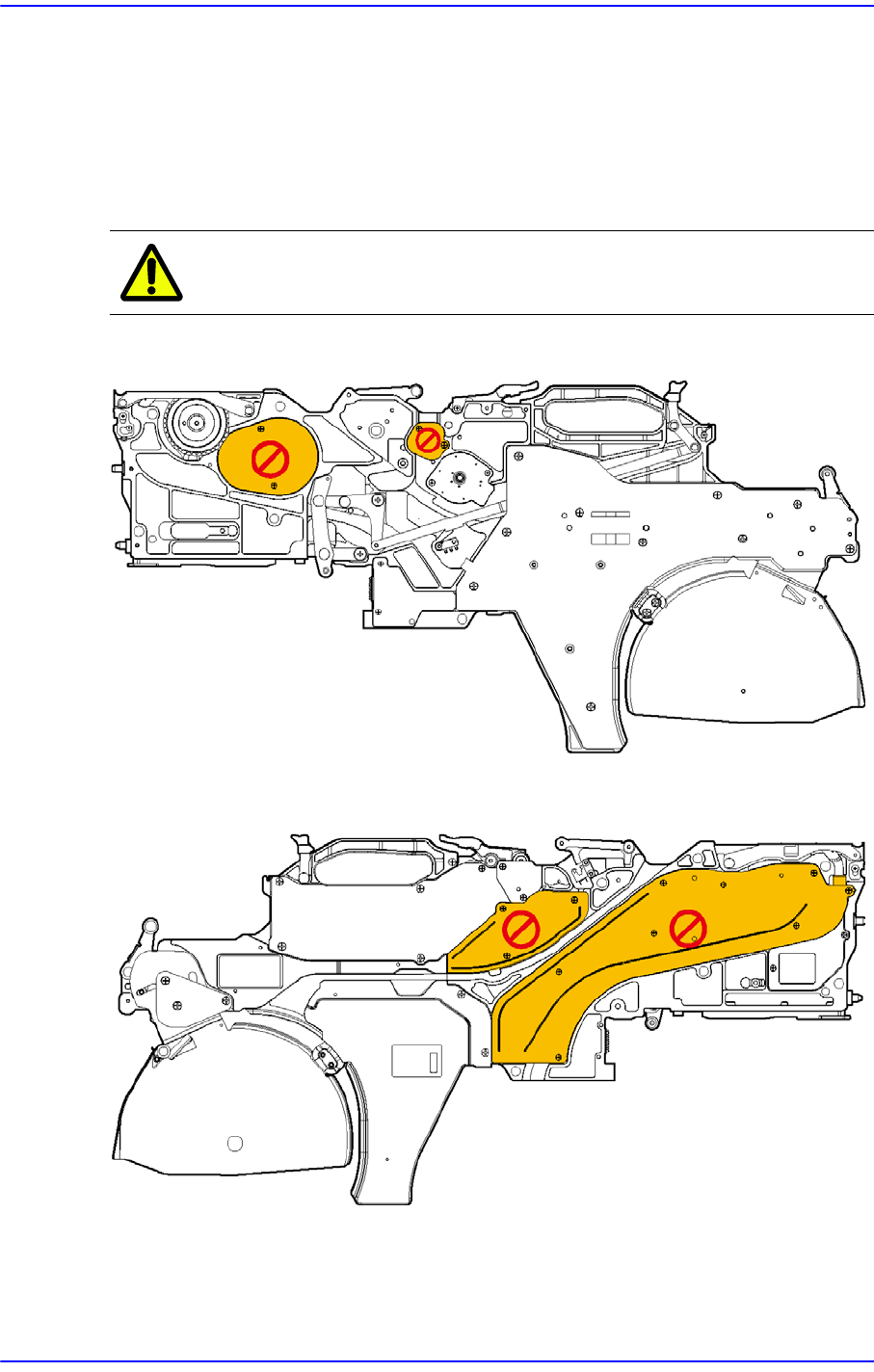

Caution Do not remove the cover as indicated in the following figure.

Figure3.1 SME 8mm/W4P1 Tape Feeder

3-3

Maintenance

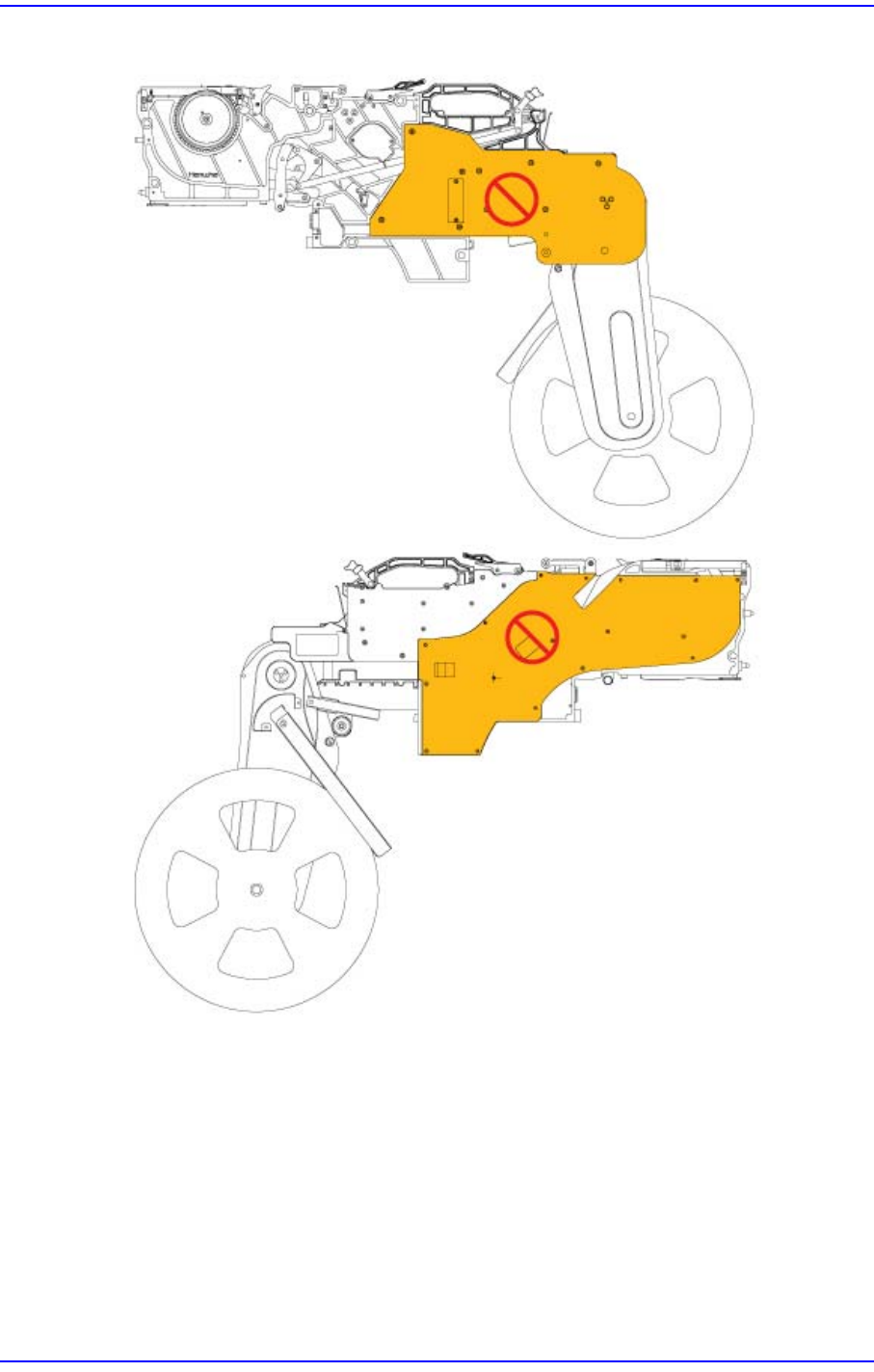

Figure3.2 SME 8mm/W4P1 Tape Feeder

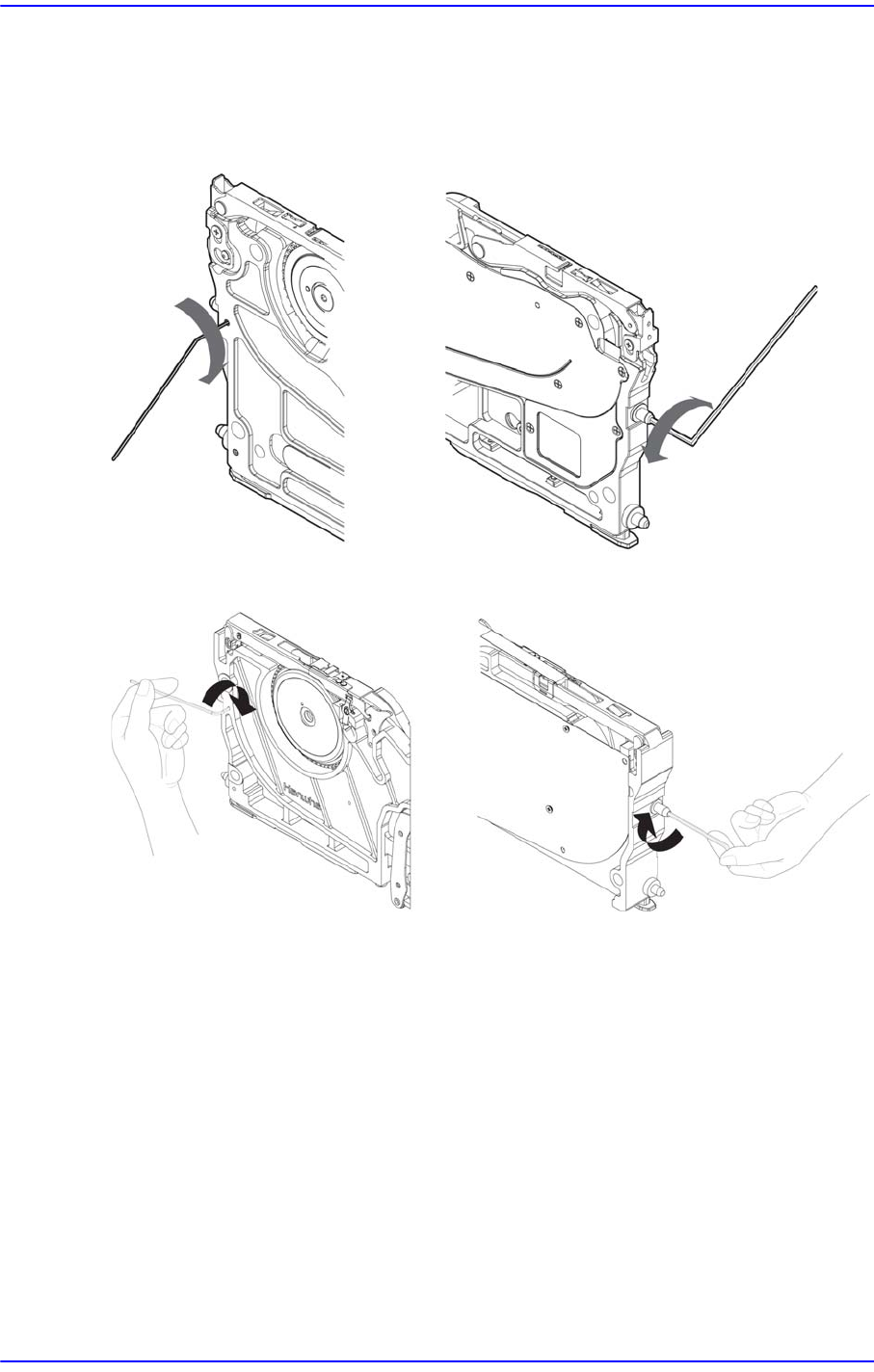

One of the location pins of a tape feeder is eccentric pin and if it is rotated, the part pickup

position is changed in the direction (X direction) perpendicular to the part feeding

direction (Y direction). If the part pickup position needs to be adjusted, measure the offset

in the X direction correctly for the part pickup position of the feeder to be adjusted using

the calibration jig calibrated by the master feeder supplied by us and adjust the feeder

offset.
