1-3 Overview 1.1.3. SME 12~88mm Tape Feeder Figure1.3 Configuration of SME 12 ~88mm tape feeder No. Name No. Name No. Name 1 T ape Guide 2 Vinyl Guide 3 Vinyl Guide Locker 4 X Eccentric Pin 5 Installation Guide 6 Probe P…
1-2
SM-Series SME DB Tape Feeder User's Manual
1.1.2. SME 8mm Tape Feeder

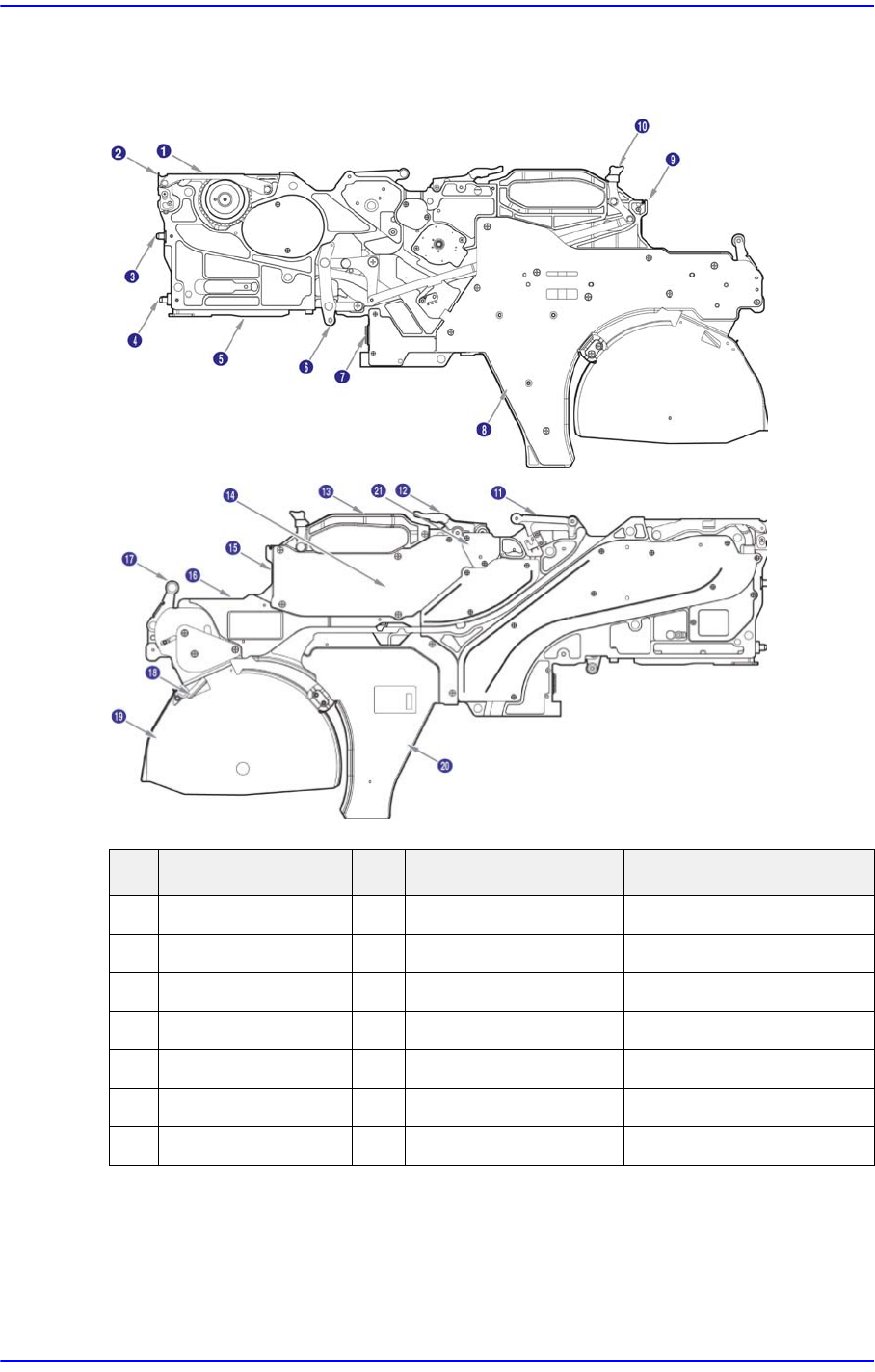

Figure1.2 Configuration of SME 8mm tape feeder
No. Name No. Name No. Name
1 Tape Guide 2 Locker 3 X Eccentric Pin
4 Location Flange 5 Installation Guide 6 Clamping Roller
7 Probe Pin 8 Reel Plate 9 Vinyl Cutter
10 Clamp Lever 11 Drain Tensioner 12 Drain Handle
13 Handle 14 Vinyl Box 15 Vinyl Box Door
16 UI Button 17 Reel Lever 18 Reel Brake
19 Reel Hanger 20 PCB Cover 21 Drain Cover
1-3
Overview
1.1.3. SME 12~88mm Tape Feeder

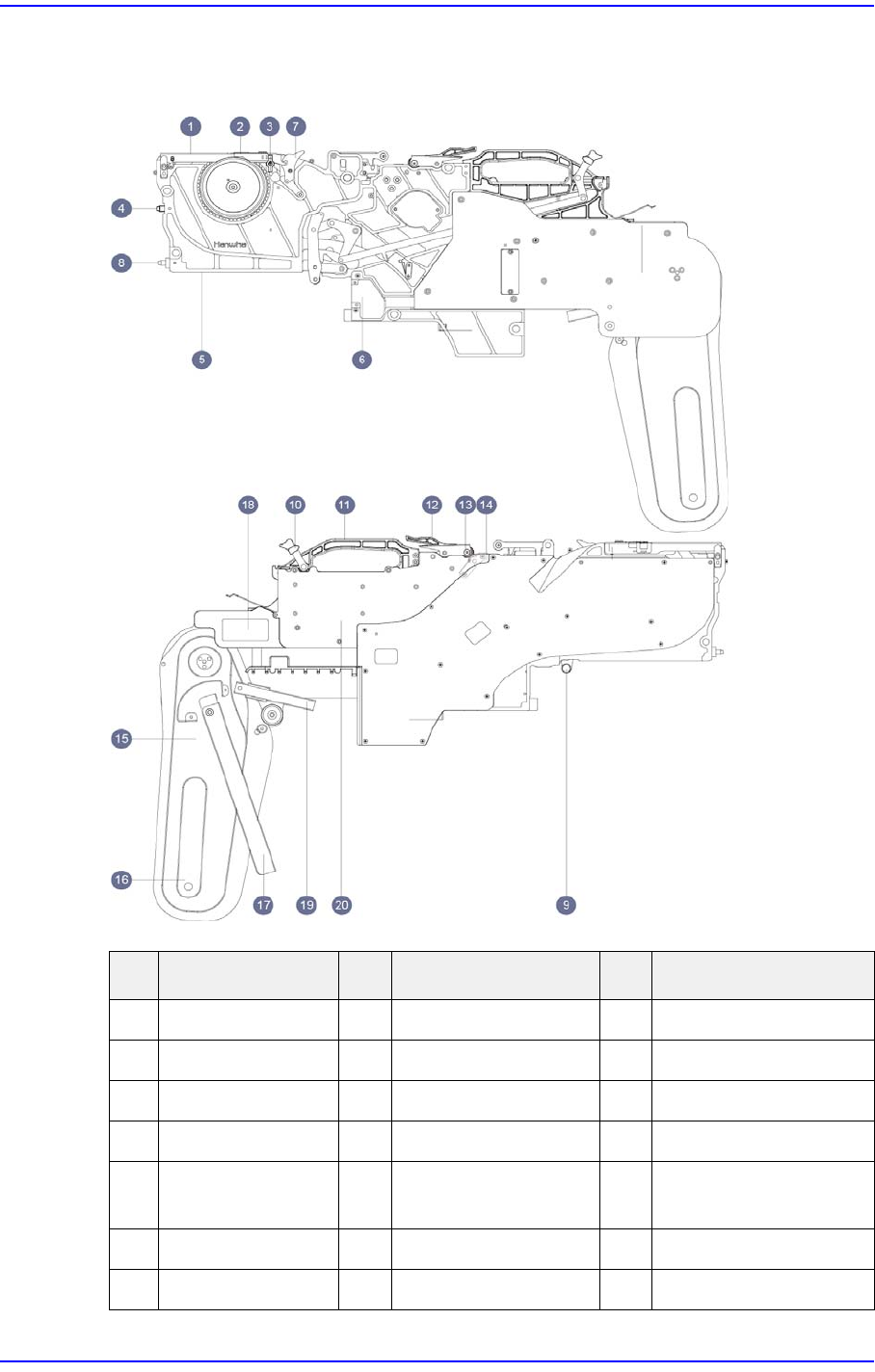

Figure1.3 Configuration of SME 12~88mm tape feeder
No. Name No. Name No. Name
1 Tape Guide 2 Vinyl Guide 3 Vinyl Guide Locker
4 X Eccentric Pin 5 Installation Guide 6 Probe Pin
7 Locker 8 Location Flange 9 Clamping Roller
10 Clamp Lever 11 Handle 12 Drain Handle
13 Vinyl Discharge
Roller
14 Drain Gear 15 Reel Arm Plate
16 Reel Arm Post 17 Reel Brake 18 Serial Number Sticker
19 Stopper Module 20 Vinyl Box 21 UI Button
1-4
SM-Series SME DB Tape Feeder User's Manual
1.2. Feeder Standard
1.2.1. Tape to be used/reel diameter/feed pitch/number of occupied slots
according to feeder types
Table1.1 Types of feeder
,
width of the tape, and feed pitch
[1] Addition options including IT function and splicing detection function are available for
each feeder type.
[2] For the 8mm large reel, it is possible to have the feeder occupy only one slot if its
outermost width is less than 13mm.
[3] The actual part feed pitch of feeders larger than 12mm may be limited by the length in
the part supply direction and reel pocket depth. For further details regarding this, contact
our CS company (STS) and local agent after checking the corresponding dimension
information.
[4] The W4P1 tape feeder does not support the splicing detection function.
Type of Feeder
[1]
Width of
the tape
(mm)
Feed
Pitch
(mm)
Reel
Diameter
(mm)
Number
of
occupied
Slots
SME W4P1 Tape Feeder
[4]
4 1, 2 ф178~180 1
SME 8mm Tape Feeder 8 2, 4 ф178~180 1
SME 8mm Tape Feeder (L)
8 2, 4 ф178~330
2
[2]
SME DB 12mm Tape Feeder 12
4, 8, 12,
16, 20, 24,
28, 32, 36,
40, 44
[3]
ф178~380 2
SME DB 16mm Tape Feeder 16 ф178~380 2
SME 24mm Tape Feeder 24 ф178~380 3
SME 32mm Tape Feeder 32 ф178~380 4
SME 44mm Tape Feeder 44 ф178~380 4
SME 56mm Tape Feeder 56 ф178~380 5
SME 72mm Tape Feeder 72 ф178~380 6
SME 88mm Tape Feeder 88 ф178~380 7
