2-21
Operation of the Feeder
2.5. Removing Waste Vinyl
In the case of the SME 8mm/W4P1 tape feeder, if the vinyl box is filled with a certain
amount of waste vinyl, the vinyl box door opens automatically and waste vinyl is
discharged. It is recommended to remove waste vinyl once the door opens. The waste
vinyl can be easily cut off using the vinyl cutter installed beside the vinyl box. After
cutting off the waste vinyl, close the door.

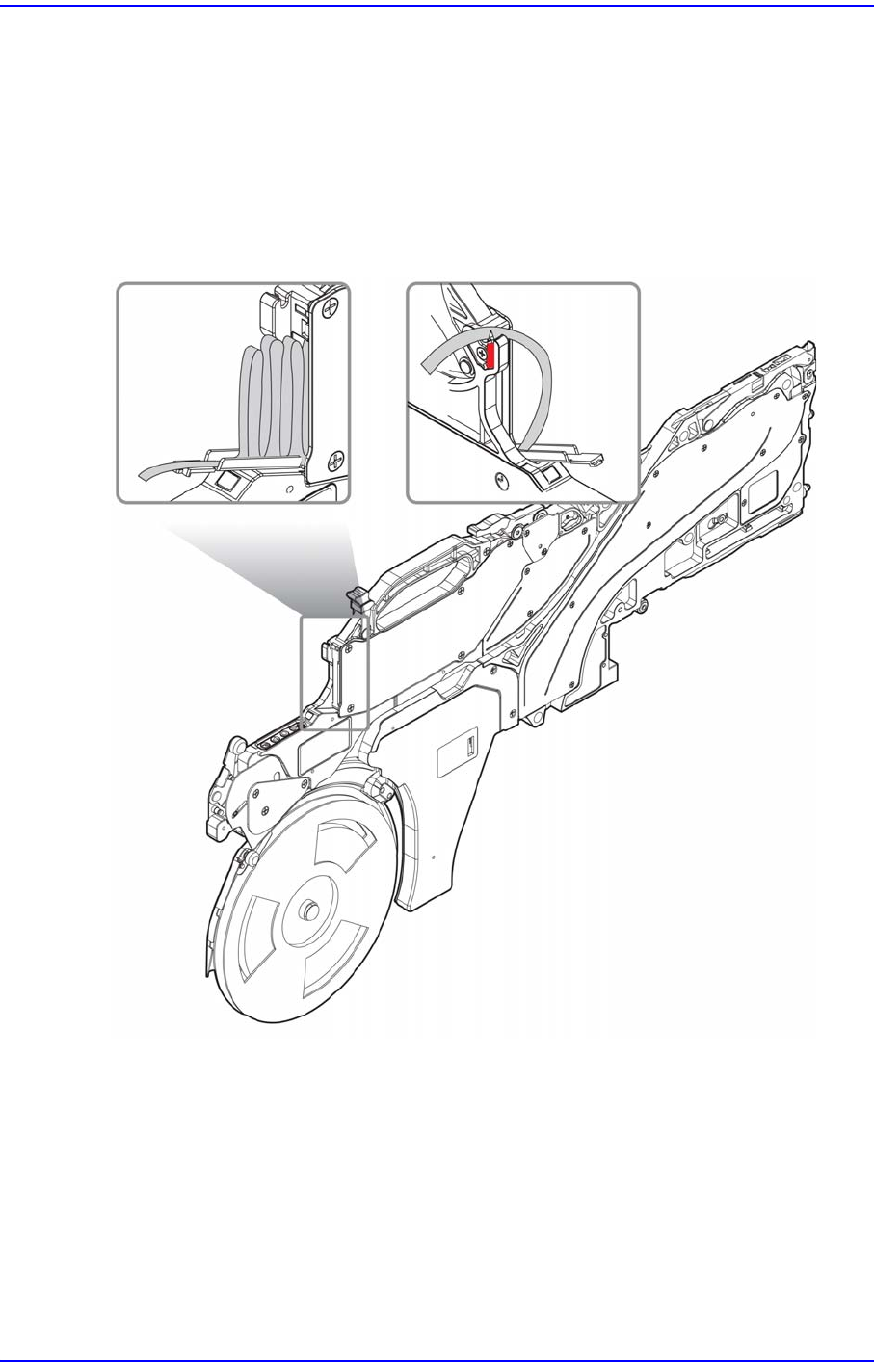

Figure2.19 Removing Waste Vinyl of SME 8mm/W4P1 tape feeder
2-22
SM-Series SME DB Tape Feeder User's Manual
2.6. How to Operate the SME Tape Feeder Switch

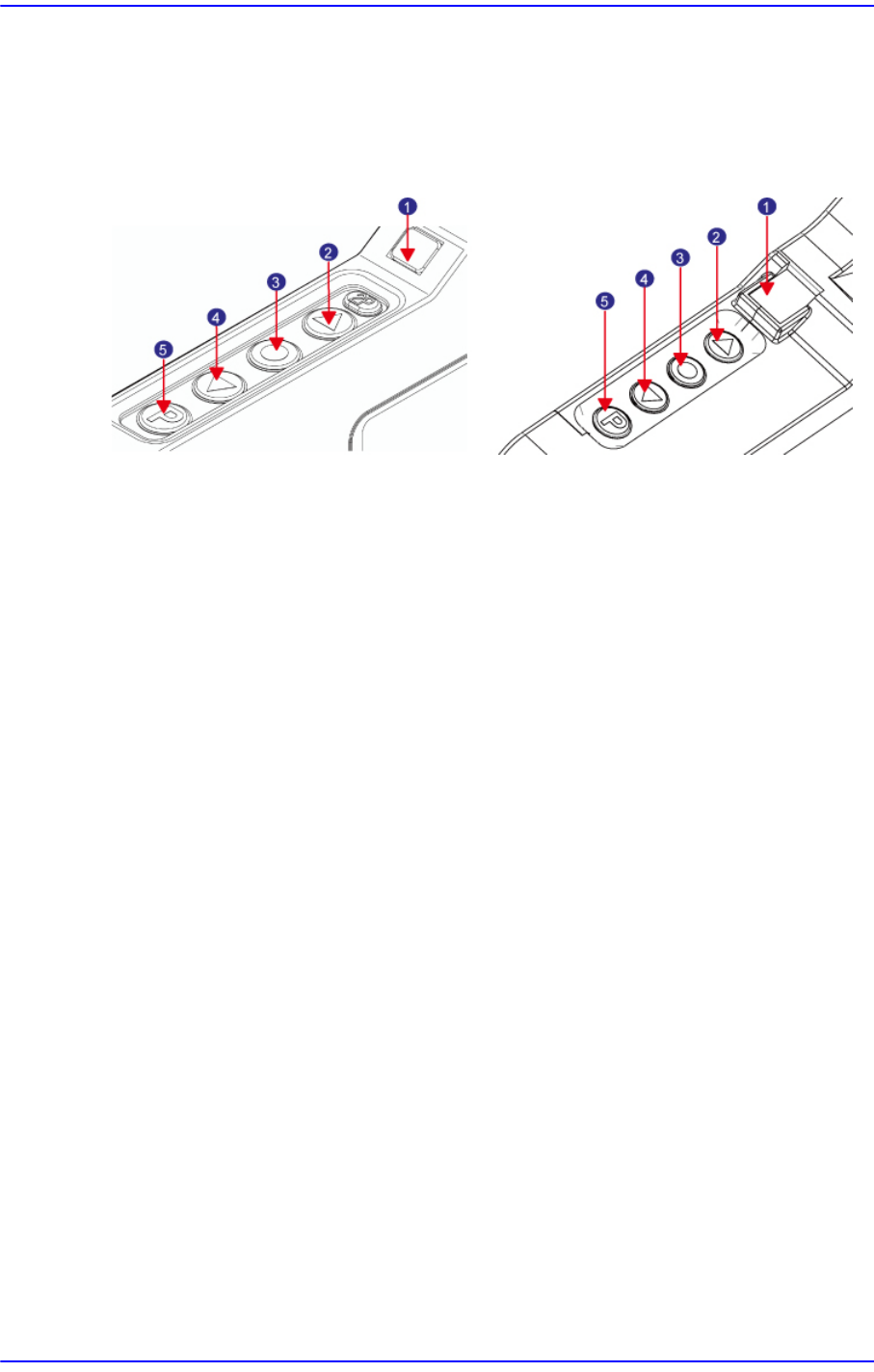

Figure2.20 Manual Supply Button (OP Panel)
1: SME 8mm, W4P1: LED / SME 12~88mm: 7Segment
2: Forward Button
3: Home Button
4: Backward Button
5: Pitch Change Button
(a) SME 8mm/W4P1 Tape Feeder (b) SME 12~88mm Tape Feeder
2-23
Operation of the Feeder
SME 8mm/W4P1
Button
Type
SME 12~88mm
Each time the Forward
button is pressed, the
tape moves by 2mm and
4mm when the pitch is
2P and 4P,
respectively.(8mm)
Each time the Forward
button is pressed, the
tape moves by
1mm.(W4P1)
Keeping the Forward
button pressed will move
the tape forward
continuously by multiples
of the corresponding
pitch.
Delay time as much as
the set parameter value
is applied between
forward movements.
Lifting your finger off the
button will automatically
stop the tape transfer.
Forward
Button
Each time the Forward button is
pressed, the tape moves forward
by 4mm.
Pressing the Forward button once
and holding it down for a few
seconds will move the tape forward
as far as the set distance (pitch x
4mm).
Keeping the Forward button
pressed will move the tape forward
by the set distance (pitch x 4mm).
In order to stop the forward
movement, lift your finger off the
Forward button.
Each time the Backward
button is pressed, the
tape moves by 2mm and
4mm when the pitch is
2P and 4P,
respectively.(8mm)
Each time the Backward
button is pressed, the
tape moves by
1mm.(W4P1)
Backward
Button
Each time the Backward button is
pressed, the tape moves backward
by 4mm.
Pressing the Backward button
once and holding it down for a few
seconds will move the tape
backward as far as the set distance
(pitch x 4mm).
Keeping the Backward button
pressed will move the tape
backward by the set distance (pitch
x 4mm). In order to stop the
Backward movement, lift your
finger off the Backward button.
