5-15 Service Part List 75 J70653940A FLA T T APPING SCREW 3*7 5 76 FC01-901341 E-RING [DIA3 (SUS)] 1 NO P ARTNO. P ART NAME Q'TY REMARK
5-14
SM-Series SME DB Tape Feeder User's Manual
NO PARTNO. PART NAME Q'TY REMARK
51 J70652749A VINYL_CUTTER J70652749A 1
52 J1301023 E-RING [DIA3 (SUS)] 1
53 FC29-008760A SME 12/16 HANDLE 1
54 AM03-023469A SME 12/16 D FOLLOW HANDLE ASSY 1 <mm> of
Use
55 J70653926A PAN CAP SCREW M2.5 L3.5 2
56 FC35-000034A ROLLER-V D-TENSIONER ROLLER
1216
1
57 AM03-023471A SME CABLE ASSY-DRAIN SENSOR
HARNESS ASSY-L
1
58 J7066040A TOGGLE SPRING 1
59 FC38-000056B SPRING,EXT-V LOCKER LEVER
SPRING 12
1
60 FC24-000013A LEVER-VL FEEDER_REAR LOCKER 1
61 MC19-000171B SHAFT-VL FEEDER_LOCKER LEVER
SHAFT
1
62 FC30-005145A SME VINYL GUIDE LOCKER 1
63 FC38-001134A SPRING,COM-
VINYL_GUIDE_LOCKER_SME_DB121
6
1
64 AM03-023470A ASSY,TAPE FEEDER-
TAPE_GUIDE_SME_DB-12MM
1
AM03-023477A ASSY,TAPE FEEDER-
TAPE_GUIDE_SME_DB_16MM
1
65 AM03-003845A ASSY,TAPE FEEDER-V SPROCKET
ASSY-L
1 <12~77mm>
Common
Need to
Mapping
66 FC38-000047A SPRING-V TAPE GUIDE SPRING
PLATE-L
1
67 J6010300448 SOKET SET SCREW(M3*0.5 L4) 2
68 MC19-000189A SHAFT-V SPROCKET SHAFT-L 1
69 AM03-024405A ASSY,TAPE FEEDER-
TOGGLE_SME_DB_1216
1 <12~77mm>
Common
70 J90650156B PROBE_CABLE_ASSY_8MM_IT SM1-
MF08-202
1 <12~77mm>
Common
71 J70653935A T LINK1 HINGE 2
72 AM03-000613A CLAMP SWITCH HARNESS ASSY 1 <12~77mm>
Common
73 FC15-005399A SME SPLICING COVER 1
74 FC30-005144A SME 12/16 Reel Plate 1
5-15
Service Part List
75 J70653940A FLAT TAPPING SCREW 3*7 5
76 FC01-901341 E-RING [DIA3 (SUS)] 1
NO PARTNO. PART NAME Q'TY REMARK
5-16
SM-Series SME DB Tape Feeder User's Manual

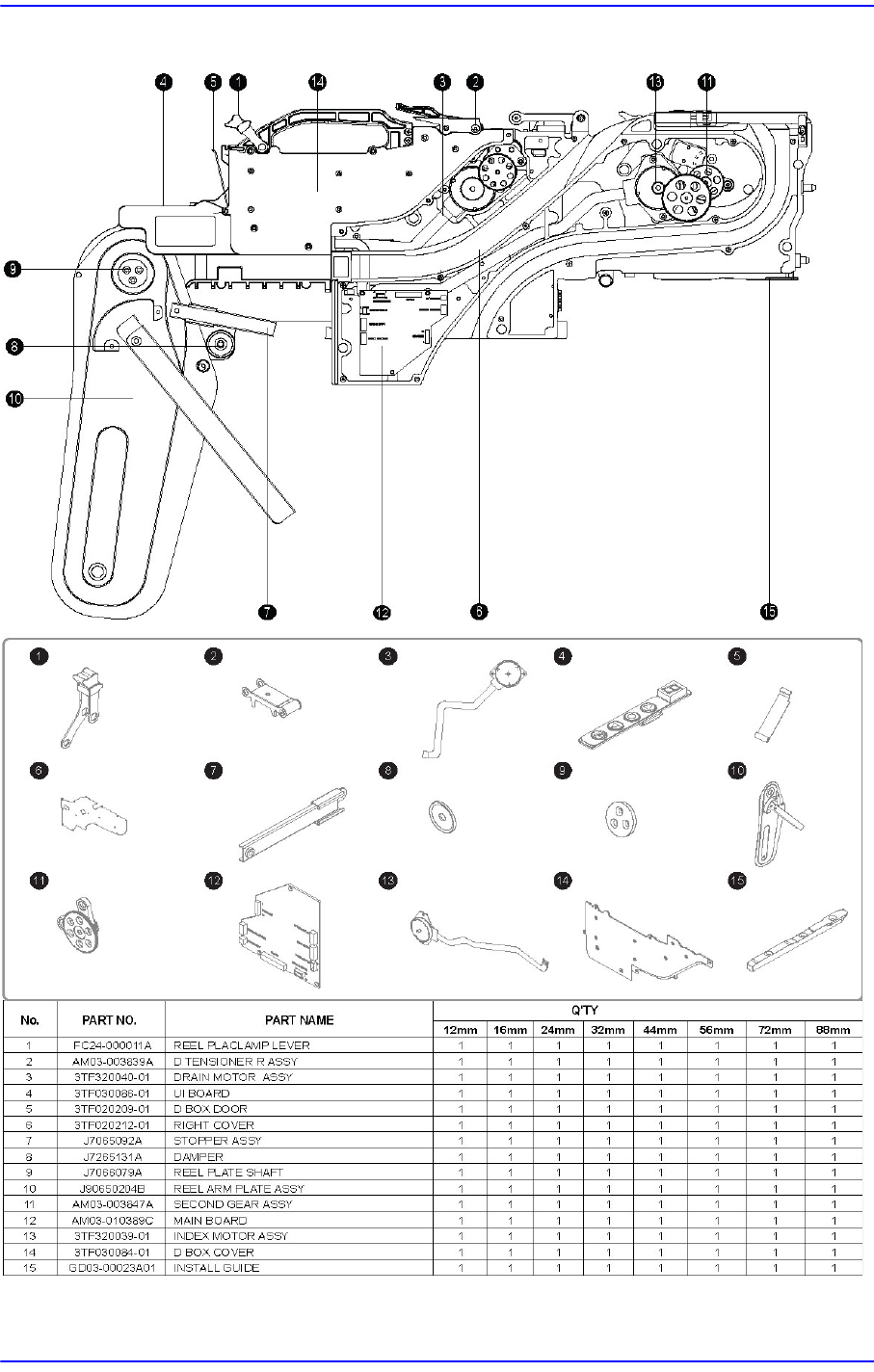

5.1.4. SME 12~88mm Tape Feeder
