– 6 –
CP-643E/643ME Specifications
Edition 3.0
3.2 PCB Conveyance
Flow direction Standard: Left to right
Option: Right to left
Note: The flow direction must be specified when the machine
is ordered.
Conveyor height Standard: 900
(+15, -5)
mm
Option: 950
(+15, -5)
mm
Note: Add 12 mm if anti-vibration pads are used.
The conveyor height must be specified when the
machine is ordered.
Conveyor type In-conveyor → Main conveyor (XY-table)
→ Out-conveyor
PCB loading time 1.4 sec. (XY-table travel time is not included)
0.7 sec./PCB when two PCBs are loaded simultaneously.
PCB weight Maximum 1 kg
Notes:
Double board production can be performed for PCBs up to
0.5 kg (i.e., each PCB can be up to 0.5 kg).
A roller conveyor system is available for PCBs which weigh
1 to 2 kg (used in combination with reference pin unit).
Conveyor width adjustment Handle on the out-conveyor is used to make changes to
the adjustable rail when all three conveyors have been
connected.
– 7 –
CP-643E/643ME Specifications
Edition 3.0
3.3 PCBs
Dimensions Maximum: 356 mm (W) x 457 mm (L)
Minimum: 50 mm (W) x 80 mm (L)
Thickness: (0.3) 0.5 – 4.0 mm
Notes: PCB length must be 220 mm or less to load two PCBs
simultaneously.
Support for PCBs thinner than 0.5 mm is optional.
Consult Fuji if PCB support is required.
Material Glass epoxy, composites, paper phenol, alumina, polyimide,
etc.
PCB conditions Warpage: Max. 1.0 mm
Premounted part height: Max. 6.0 mm
Premounted part height on lower surface.: Max. 25.4 mm
Note: The 3 mm restricted area becomes 5 mm for parts of
between 19 and 25.4 mm in height premounted on the
lower surface of the board.
CP-643E/643ME Specifications
Edition 3.0

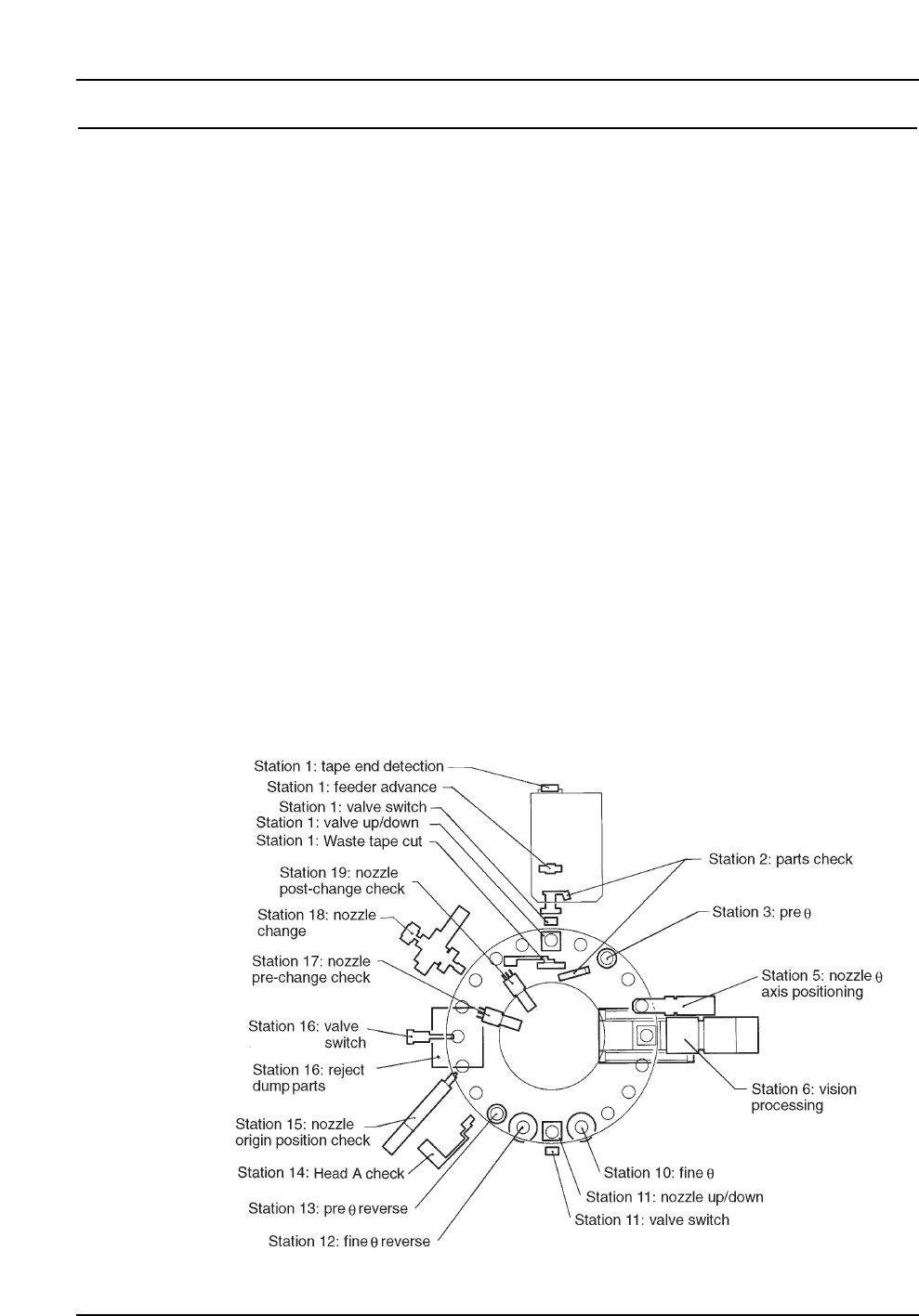

4. Twenty-head Turret
Station Function
1 Pick up part from the device table
2 Part detection (large parts only)
3Pθ: Parts prerotation to either 0°, +90° or -90°
4 Idle
5 Placing head clutch alignment
6 Vision processing
7 Idle
8 Idle
9 Idle
10 Fθ: Fine placement angle rotation (including adjustment)
11 Placement
12 FRθ: Fθ reverse rotation
13 PRθ: Pθ reverse rotation
14 A-head detection
15 Nozzle clutch origin detection
16 Reject parts discarded
17 Detection of nozzle type No. 1 - No. 6
18 Nozzle change
19 Nozzle change check (detect nozzle type No. 1 - 6)
20 Idle
