– 5 –

CP-643E/643ME Specifications

Edition 3.0

3. Machine Specifications

3.1 Performance Specifications

Placing rate 0.09 sec./part under the following conditions

•XY-table travel distance: within 14.8 mm

(within 15.3 mm

including compensation)

•D-axis movement: none

•Fθ-axis rotation angle: within 20°

•Pθ-axis rotation angle: 90° or -90°

•Cam speed: 100%

•180° rotation placement: 0.13 sec.

Placing accuracy ± 0.1 mm (3 σ) in XY-direction

(fiducial mark reference) Rotational errors are translated into XY-coordinates.

Placing reliability 99.99 % (including auto recovery)

Part dimensions 0603 (in. 0201) to 20 x 20 mm (including CSPs)

Part height: maximum 6 mm

Package type 8, 12, 16, 24 and 32 mm tapes

Reel diameter: 180 mm, 330 mm and 380 mm

Maximum feeder number CP-643E: 140 feeders (using 8 mm tape feeders)

CP-643ME: 100 feeders (using 8 mm tape feeders)

Fiducial mark reading time Approximately 0.25 sec./mark

Note: This result presumes a 1.2 mm diameter mark is being

used. The time needed for adjustments due to mark shape

variations, location errors and mark to mark travel is

excluded.

Nozzle indexing time 1 pitch index: 0.09 sec.

2 pitch index: 0.15 sec.

3 pitch index: 0.18 sec.

Warranty period Warranty period for this equipment is 6000 working

hours or 2 years (whichever elapses first).

Warranty period for this software is 2000 working hours

or 1 year (whichever elapses first).

Note: Fuji will bear no responsibility for damage due to acts of

nature (fire, flood, earthquakes, etc.) or incorrect operation.

– 6 –

CP-643E/643ME Specifications

Edition 3.0

3.2 PCB Conveyance

Flow direction Standard: Left to right

Option: Right to left

Note: The flow direction must be specified when the machine

is ordered.

Conveyor height Standard: 900

(+15, -5)

Option: 950

(+15, -5)

Note: Add 12 mm if anti-vibration pads are used.

The conveyor height must be specified when the

machine is ordered.

Conveyor type In-conveyor → Main conveyor (XY-table)

→ Out-conveyor

PCB loading time 1.4 sec. (XY-table travel time is not included)

0.7 sec./PCB when two PCBs are loaded simultaneously.

PCB weight Maximum 1 kg

Notes:

Double board production can be performed for PCBs up to

0.5 kg (i.e., each PCB can be up to 0.5 kg).

A roller conveyor system is available for PCBs which weigh

1 to 2 kg (used in combination with reference pin unit).

Conveyor width adjustment Handle on the out-conveyor is used to make changes to

the adjustable rail when all three conveyors have been

connected.

– 7 –

CP-643E/643ME Specifications

Edition 3.0

3.3 PCBs

Dimensions Maximum: 356 mm (W) x 457 mm (L)

Minimum: 50 mm (W) x 80 mm (L)

Thickness: (0.3) 0.5 – 4.0 mm

Notes: PCB length must be 220 mm or less to load two PCBs

simultaneously.

Support for PCBs thinner than 0.5 mm is optional.

Consult Fuji if PCB support is required.

Material Glass epoxy, composites, paper phenol, alumina, polyimide,

etc.

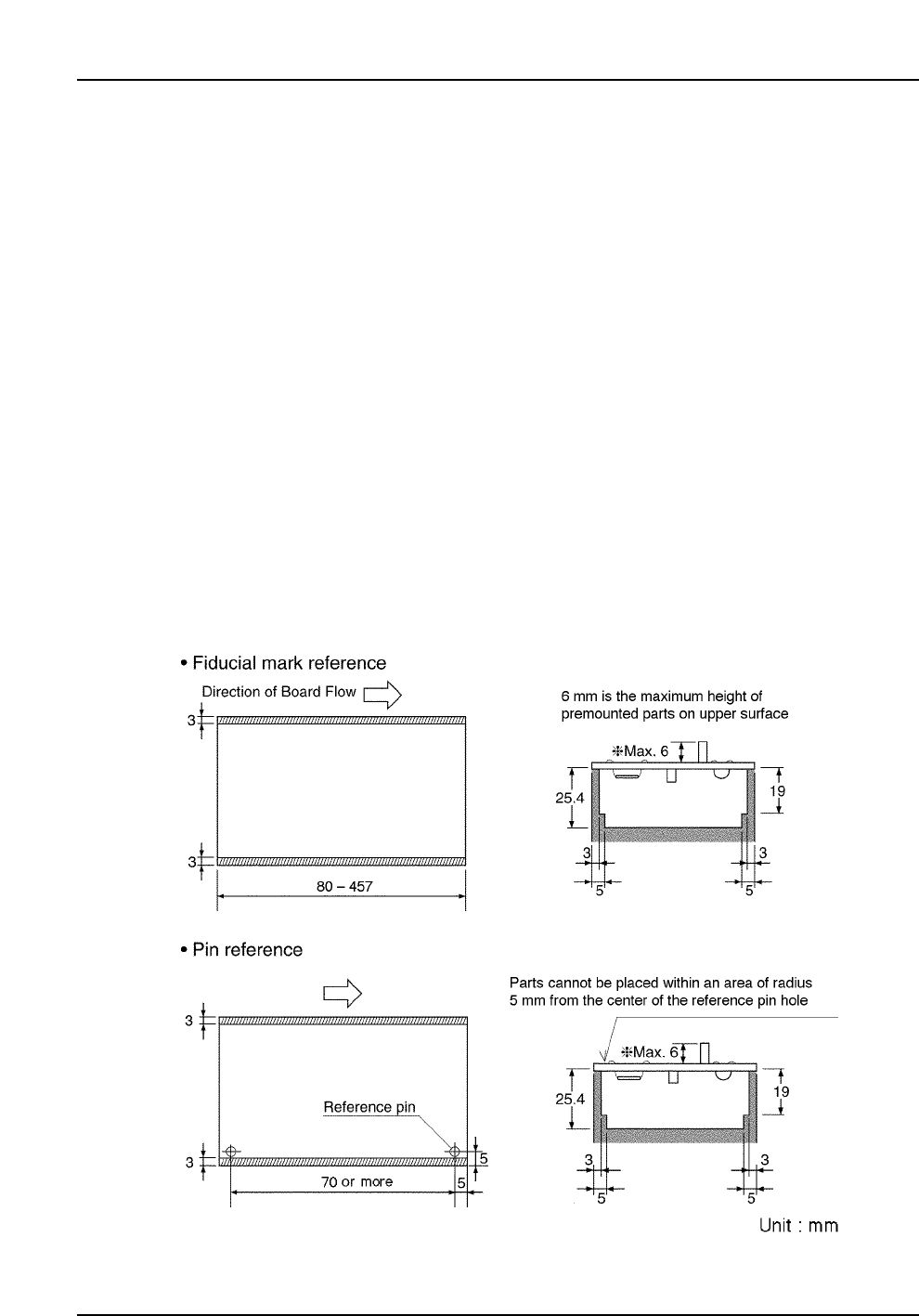

PCB conditions Warpage: Max. 1.0 mm

Premounted part height: Max. 6.0 mm

Premounted part height on lower surface.: Max. 25.4 mm

Note: The 3 mm restricted area becomes 5 mm for parts of

between 19 and 25.4 mm in height premounted on the

lower surface of the board.
