– 10 –
CP-643E/643ME Specifications
Edition 3.0
5.2 Nozzle Arrangement

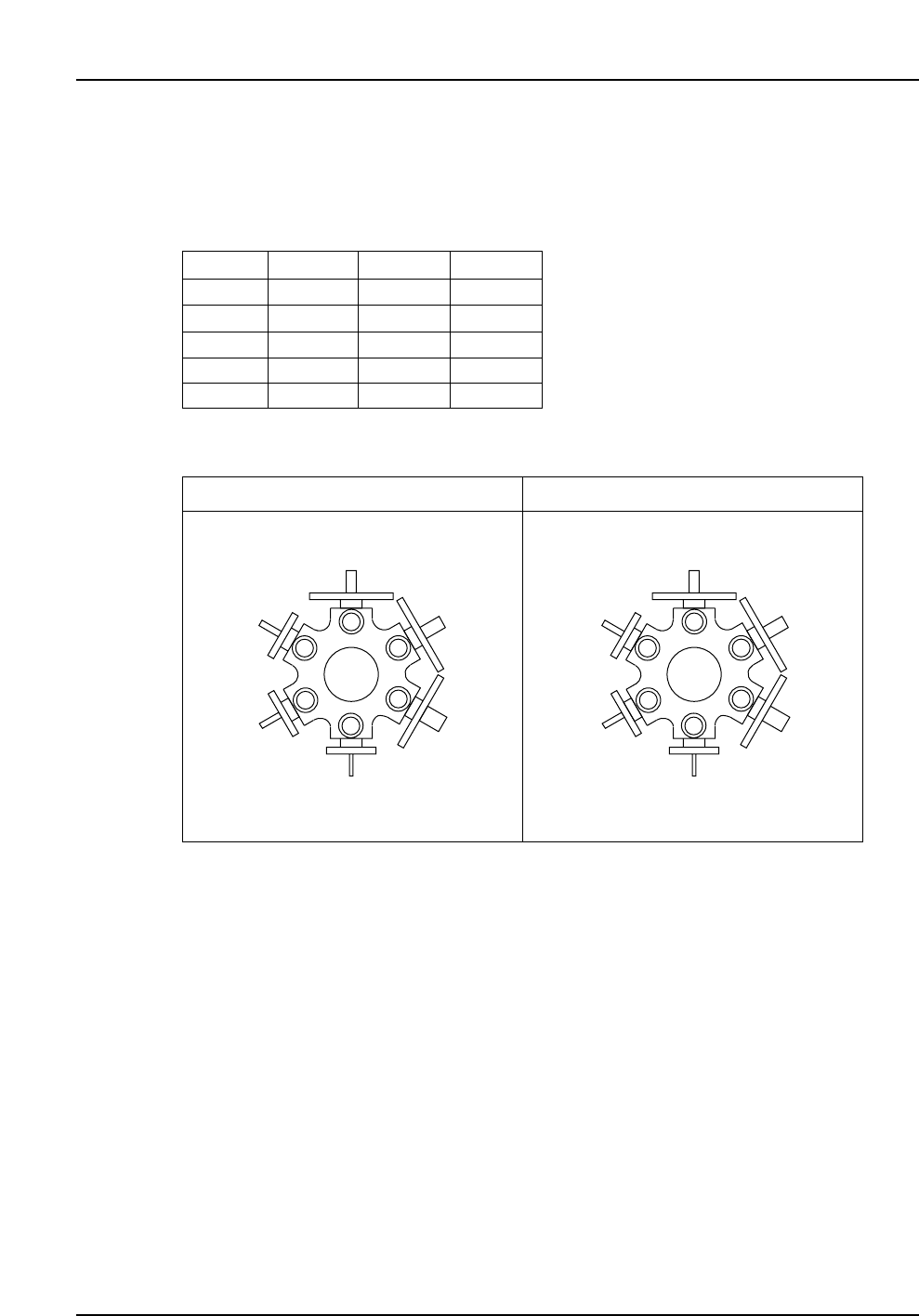

The standard arrangement of nozzles is either type A or B, as shown in the illustration
below. Other arrangements can be selected from the table below.
Notes: Only a nozzle with a disk diameter of 20 mm or smaller can be positioned next to a
nozzle with a disk size of 20 x 20 mm.
Only a nozzle with a disk diameter of 16 mm or smaller can be positioned next to a
nozzle with a disk size of 22 x 22 mm (or 22 x 22 mm black).
Nozzles with a diameter of 0.4 mm must be positioned at any position other than
position 1 (recommended position: 6).
1
2
3
4
5
6
R12-007
R12-010
R12-013
R20-025
R20-037
S20-050
1
2
3
4
5
6
R12-010
R12-013
R12-018
R20-025
R20-037
S20-050
Type A
Nozzle Types
Type B
R12-004
R12-007
R12-010
R12-013
M12-013
R12-018
R16-025
R16-037
R20-025
M20-025
R20-037
S20-050
S22-050
B22-050
S22-070
B22-070
6. Parts Supply System
6.1 Parts Supply Table (D-axis)
(1) Types of parts CP-643E: 140 types (using two tables each loaded
with seventy 8 mm feeders)
CP-643ME: 100 types (using two tables each loaded
with fifty 8 mm feeders)
(2) Mountable parts Parts that comply with the packaging, feed pitch and
part height requirements as outlined in section 3.1,
“Performance Specifications”.
(3) Table drive method 2 motor/2 independent drive mechanisms
(4) Device table operating modes Select from the following 3 modes:
• Device Change Mode
• Changeover Mode
• Joint Mode
Note: As the two D-axis tables are controlled independently on this machine, both tables
cannot be completely joined when the machine is operated in the joint mode. Due to the
safety gap of approximately 150 mm between the two tables, there will be a delay of
approximately 0.5 seconds when the machine switches from Device #70 to Device #71
(CP643ME: #50 to #51).
(5) Feeder Pitch
Note: The terms "left side" and "right side" refer to the feeder
mounting positions when viewed from the rear of the machine.
(6) Feeder Types (which can be placed at the ends of the device tables)
W8
W12
W16
W24
W32
W8
1P
2P
2P
2P
2P
W12
2P
2P
2P
2P
3P
W16
2P
2P
2P
2P
3P
W24
2P
2P
2P
3P
3P
W32
2P
3P
3P
3P
3P
Left side
Right side
– 11 –
CP-643E/643ME Specifications
Edition 3.0
– 12 –
CP-643E/643ME Specifications
Edition 3.0
7. Vision System
7.1 Two-Camera Unit (Parts Recognition)
The CP-643E/643ME is equipped with two cameras, each camera being used to process
different parts. A high resolution narrow view camera is used to acquire images of small
components such as 0603s (in. 0201s), 1005s (in. 0402s) and super small SOTs, and a wide
view camera is used for components such as SOICs, PLCCs and CSPs. In addition, the
ability to change between backlighting or frontlighting enhances the unit’s capability to
obtain a sharp outline of a part, or identify parts such as PLCCs by their J-leads.
Notes: Specify the camera type, narrow or wide view, in part data.
If a part larger than 3.2 x 1.6 mm is inspected using the narrow view camera, the
placing cycle time may be lengthened. The narrow view camera is intended for
inspecting small components at high resolution.
If a part smaller than 3.2 x 1.6 mm is inspected using the wide view camera, the placing
accuracy may be adversely affected. The wide view camera is designed for large
components from 3.2 x 1.6 mm size parts to SQFP 48 pin parts.
