– 5 – CP-643E/643ME Specifications Edition 3.0 3. Machine Specifications 3.1 Performance Specifications Placing rate 0.09 sec./part under the following conditions •XY-table travel distance: within 14.8 mm (within 15.3 mm…
2. Machine Data and Operating Environment
• Power & Air Requirements
Voltage: 200 V AC (± 10 %), three phase
Frequency: 50/60 Hz
Power consumption: 10 kVA
Air pressure: 0.5 MPa (5 kgf/cm
2
)
Air consumption: 46 l/min. (ANR)
• Control/Display Panels
CRT and control panels
Language: Japanese or English
Vision system monitor
Rear control panel
• System Components
XY-table, PCB conveyors, part supply tables, nozzles, placing heads, vision system cameras
• Machine Weight
CP-643E 6000 kg

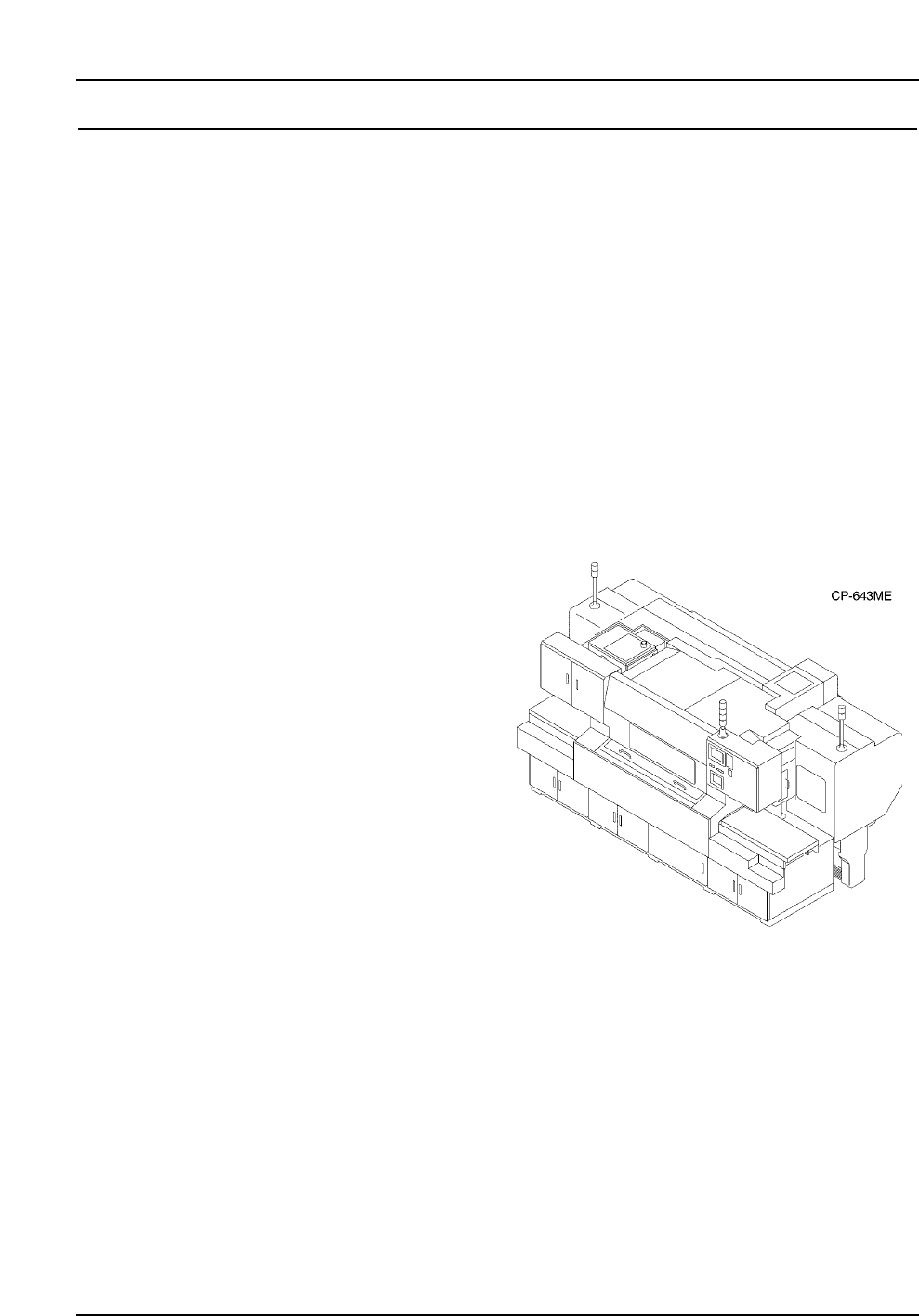

CP-643ME Approx. 5400 kg
With rear cover
CP-643E 6500 kg
CP-643ME Approx. 5830 kg
With fence
CP-643E 6400 kg
CP-643ME Approx. 5760 kg
(The above weights do not include part
feeders.)
• Installation Environment
Temperature: 15° C to 35° C
Humidity: 30% to 80%
Protective features: Class IP22 equivalent
• Machine Color
Body: Ivory
Trim: Reddish brown
Notes: The built-in transformer has primary side taps of 200, 210, 220, 230, 380, 400, 415, 460 and
480 Volts.
A dedicated power source, not shared with other large equipment, should be used in order to
avoid electrical noise, voltage fluctuations, high-frequency distortions, and other related
problems.
IP22: IEC compliant (protection against intrusion by body parts, solid objects and water).
– 4 –
CP-643E/643ME Specifications
Edition 3.0
– 5 –
CP-643E/643ME Specifications
Edition 3.0
3. Machine Specifications
3.1 Performance Specifications
Placing rate 0.09 sec./part under the following conditions
•XY-table travel distance: within 14.8 mm
(within 15.3 mm
including compensation)
•D-axis movement: none
•Fθ-axis rotation angle: within 20°
•Pθ-axis rotation angle: 90° or -90°
•Cam speed: 100%
•180° rotation placement: 0.13 sec.
Placing accuracy ± 0.1 mm (3 σ) in XY-direction
(fiducial mark reference) Rotational errors are translated into XY-coordinates.
Placing reliability 99.99 % (including auto recovery)
Part dimensions 0603 (in. 0201) to 20 x 20 mm (including CSPs)
Part height: maximum 6 mm
Package type 8, 12, 16, 24 and 32 mm tapes
Reel diameter: 180 mm, 330 mm and 380 mm
Maximum feeder number CP-643E: 140 feeders (using 8 mm tape feeders)
CP-643ME: 100 feeders (using 8 mm tape feeders)
Fiducial mark reading time Approximately 0.25 sec./mark
Note: This result presumes a 1.2 mm diameter mark is being
used. The time needed for adjustments due to mark shape
variations, location errors and mark to mark travel is
excluded.
Nozzle indexing time 1 pitch index: 0.09 sec.
2 pitch index: 0.15 sec.
3 pitch index: 0.18 sec.
Warranty period Warranty period for this equipment is 6000 working
hours or 2 years (whichever elapses first).
Warranty period for this software is 2000 working hours
or 1 year (whichever elapses first).
Note: Fuji will bear no responsibility for damage due to acts of
nature (fire, flood, earthquakes, etc.) or incorrect operation.
– 6 –
CP-643E/643ME Specifications
Edition 3.0
3.2 PCB Conveyance
Flow direction Standard: Left to right
Option: Right to left
Note: The flow direction must be specified when the machine
is ordered.
Conveyor height Standard: 900
(+15, -5)
mm
Option: 950
(+15, -5)
mm
Note: Add 12 mm if anti-vibration pads are used.
The conveyor height must be specified when the
machine is ordered.
Conveyor type In-conveyor → Main conveyor (XY-table)
→ Out-conveyor
PCB loading time 1.4 sec. (XY-table travel time is not included)
0.7 sec./PCB when two PCBs are loaded simultaneously.
PCB weight Maximum 1 kg
Notes:
Double board production can be performed for PCBs up to
0.5 kg (i.e., each PCB can be up to 0.5 kg).
A roller conveyor system is available for PCBs which weigh
1 to 2 kg (used in combination with reference pin unit).
Conveyor width adjustment Handle on the out-conveyor is used to make changes to
the adjustable rail when all three conveyors have been
connected.
