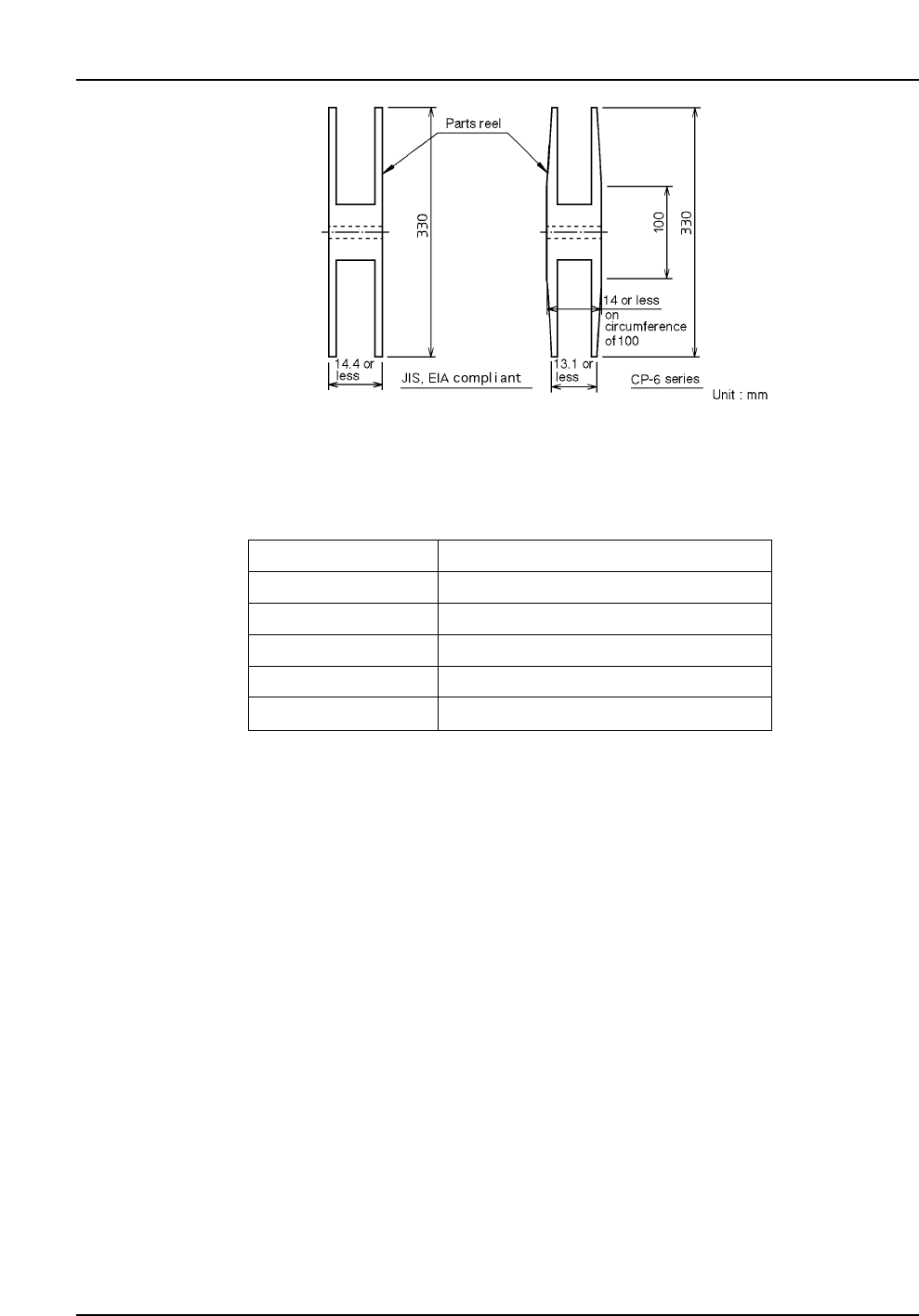

9.2.6 Feeder Stand
The feeder stand is a 3-tier shelf designed to accommodate unused or spare
feeders. Shelves can be selected from the following list.
9.2.7 Handy Terminal
(1) Allows the operator to view and enter data normally displayed at the
machine monitor.
(2) Eliminates errors during reel replacement by enabling device checks with
the attached pen-type bar-code reader.
9.2.8 Roller Conveyor (Under Development)
(1) PCB conveyance is improved by rollers located under the conveyor belt.
(2) This conveyor is required when the total weight of PCBs (including the
supporting pallets) is between one and two kilograms. (Use in combination
with reference pin unit.)
Shelf type
8, 12 mm
16 mm
24 mm
32 mm
32 mm (paper tape)
Number of accommodated feeders
34
27
22
19
16
– 20 –
CP-643E/643ME Specifications
Edition 3.0
9.2.9 HELPS
(1) HELPS is Fuji’s automatic production program changeover system and
stands for High Efficiency Line Production System. The main functions of
the HELPS system are:
• Automatic changing of production programs.
• Automatic adjustment of conveyor width.
• Display of instructions for the operator.
(2) An order for HELPS should include your choice of how to trigger
changeover. This can be either:
• Automatically, by reading a bar code or pattern code on the PCB.
• Manually, by the operator.
Note: Automatic triggering based on the PCB ID requires a code reading station to be
installed on the PCB entry side of the machine. Customers interested in this
option should call Fuji for further details.
9.2.10 Other
(1) Users can request specifications other than the standard CP-643E/643ME
specifications when ordering.
(2) Contact Fuji regarding the installation of other options.
– 21 –
CP-643E/643ME Specifications
Edition 3.0
10. Machine Drawings
10.1 Dimensions
10.1.1 CP-643E (with Rear Cover)
61
2527
2592
1366
2
670
1152
860
1800
840
632
1755
906
240
48
920
296
362
191
1551
850
4
800
4844
712
112
1293
950
370 1791
1740
PCB coneyance height
