CP-643E/643ME Specifications Edition 3.0 4. T wenty-head T urret Station Function 1 Pick up part from the device table 2 Part detection (large parts only) 3P θ: Parts prerotation to either 0°, +90° or -90° 4 Idle 5 Placi…
– 7 –
CP-643E/643ME Specifications
Edition 3.0
3.3 PCBs
Dimensions Maximum: 356 mm (W) x 457 mm (L)
Minimum: 50 mm (W) x 80 mm (L)
Thickness: (0.3) 0.5 – 4.0 mm
Notes: PCB length must be 220 mm or less to load two PCBs
simultaneously.
Support for PCBs thinner than 0.5 mm is optional.
Consult Fuji if PCB support is required.
Material Glass epoxy, composites, paper phenol, alumina, polyimide,
etc.
PCB conditions Warpage: Max. 1.0 mm
Premounted part height: Max. 6.0 mm
Premounted part height on lower surface.: Max. 25.4 mm
Note: The 3 mm restricted area becomes 5 mm for parts of
between 19 and 25.4 mm in height premounted on the
lower surface of the board.
CP-643E/643ME Specifications
Edition 3.0
4. Twenty-head Turret
Station Function
1 Pick up part from the device table
2 Part detection (large parts only)
3Pθ: Parts prerotation to either 0°, +90° or -90°
4 Idle
5 Placing head clutch alignment
6 Vision processing
7 Idle
8 Idle
9 Idle
10 Fθ: Fine placement angle rotation (including adjustment)
11 Placement
12 FRθ: Fθ reverse rotation
13 PRθ: Pθ reverse rotation
14 A-head detection
15 Nozzle clutch origin detection
16 Reject parts discarded
17 Detection of nozzle type No. 1 - No. 6
18 Nozzle change
19 Nozzle change check (detect nozzle type No. 1 - 6)
20 Idle
– 8 –
– 9 – CP-643E/643ME Specifications
Edition 3.0

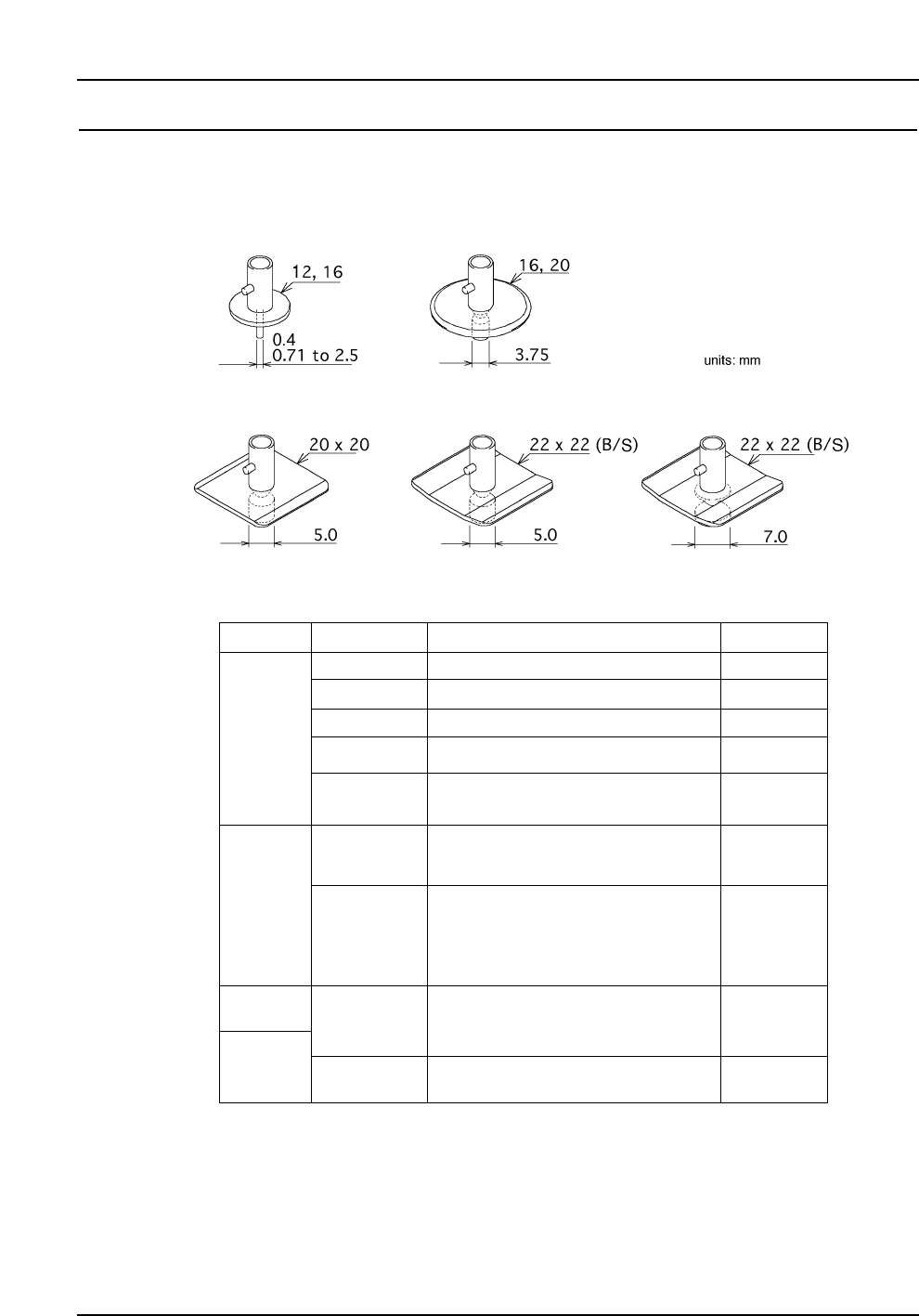

5. Nozzles
5.1 Nozzle Types and Nozzle Assembly
(1) Each placing head carries up to 6 nozzles, selected from a range of 16 nozzle types.
(2) Refer to the following table for nozzle types and applicable parts.
Notes: The letter in "Nozzle name" denotes the shape of the disk (except M).
R : Round (backlight) M : Round special nozzle for Melf (backlight)
S : Square (backlight) B : Square (frontlight)
Depending on the shape and weight of the part, a different nozzle may be required.
Both nozzles for backlighting and frontlighting can be used for placing CSPs.
1005 (in. 0402), 1608, (in. 0603) SSMIN
0603 (in. 0201), 1005 (in. 0402)
1608 (in. 0603), 2125, SMIN
2125, 3216, MIN, Tantalum A, Melf
3216, 3225, 4532, Tantalum A/B,
PTRR, Trimmer potentiometer
Tantalum B/C/D, PTRR, Melf,
SOIC 8, SSOP 16–20, Filter, CSP
SOIC 20–28W, SSOP 24–30, PLCC 18–32,
SQFP 48, SOJ26, QFP48, CSP
0.7
0.4
1.0
1.3
1.8
2.5
5.0
3.7
12
20
Disk size Nozzle diameter
Applicable parts
Trimmer potentiometer,
Aluminum electrolytic capacitor,
Tantalum D, SOIC 20–28W, SSOP 16–30,
PLCC 18–28, SQFP 48, SOJ 26, CSP
20 x 20 mm
Nozzle name
16
22 x 22 mm
22 x 22 mm
( black )
7.0
SOIC 20–28W, SOJ 26, PLCC 20-52, CSP
R12-007
R12-004
R12-010
M12-013
R12-018
R20-025
M20-025
R16-037
R20-037
S20-050
S22-050
B22-050
S22-070
B22-070
R12-013
R16-025
Units: mm
