T50090901 Rev. F V/S Standard Insertion Head Assembly
This Document Supports Assembly 50090901 Rev. D
The following message is displayed.
6. Click on Yes. This zeros all axes.

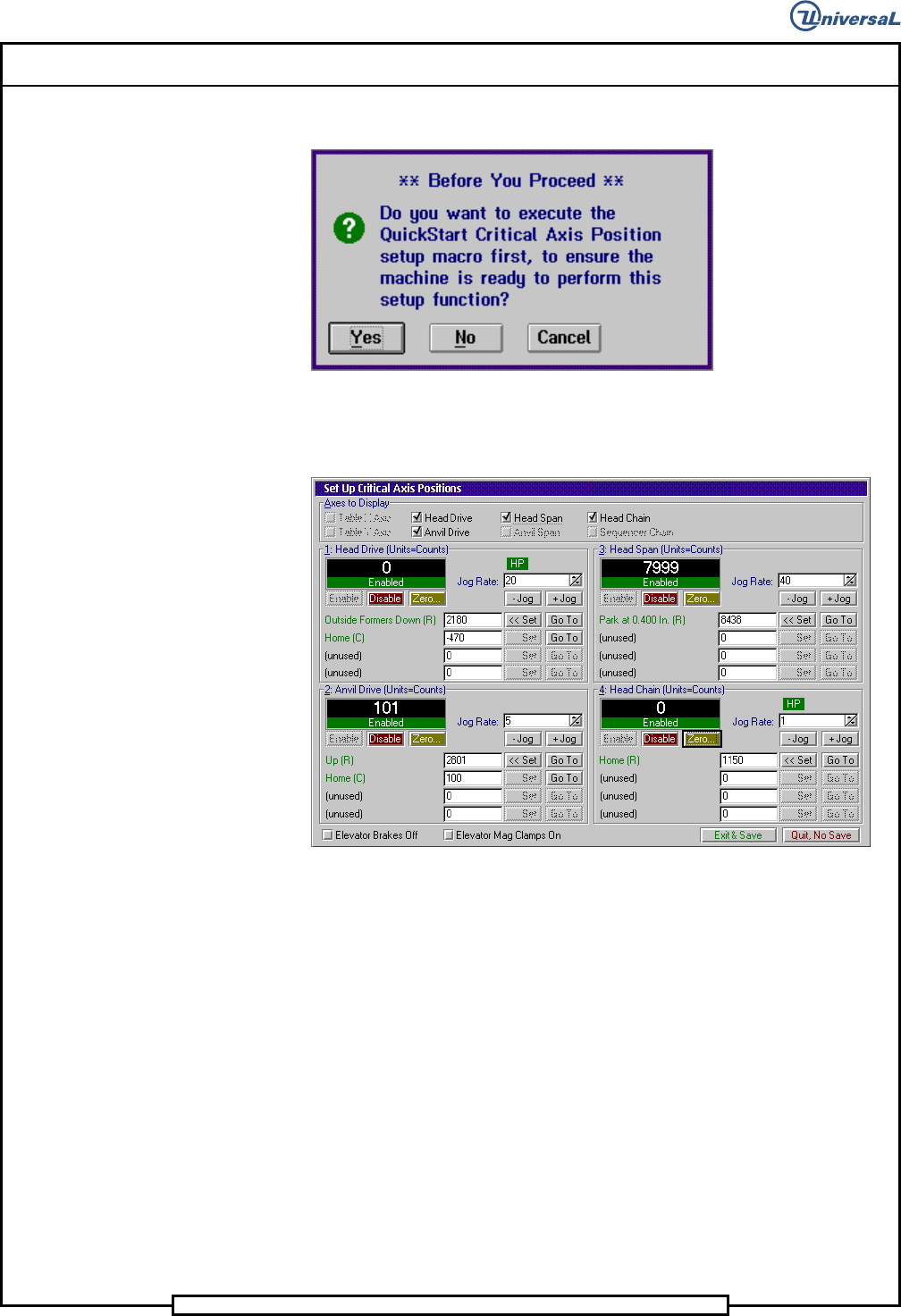

The following screen is displayed
7. In the Set Up Critical Axis Positions screen, click on the Head Chain
and Head Drive.
8. Select Zero to zero the head drive axis.
9. Select Go To to drive the head drive to the home position.
10. Loosen the cap screw that secures the centering drive belt tensioner,
move the tensioner to relieve the belt tension then secure the tensioner
to the housing.
11. Remove the centering drive belt from the centering driven pulley.
Page 37
V/S Standard Insertion Head Assembly T50090901 Rev. F
This Document Supports Assembly 50090901 Rev. D

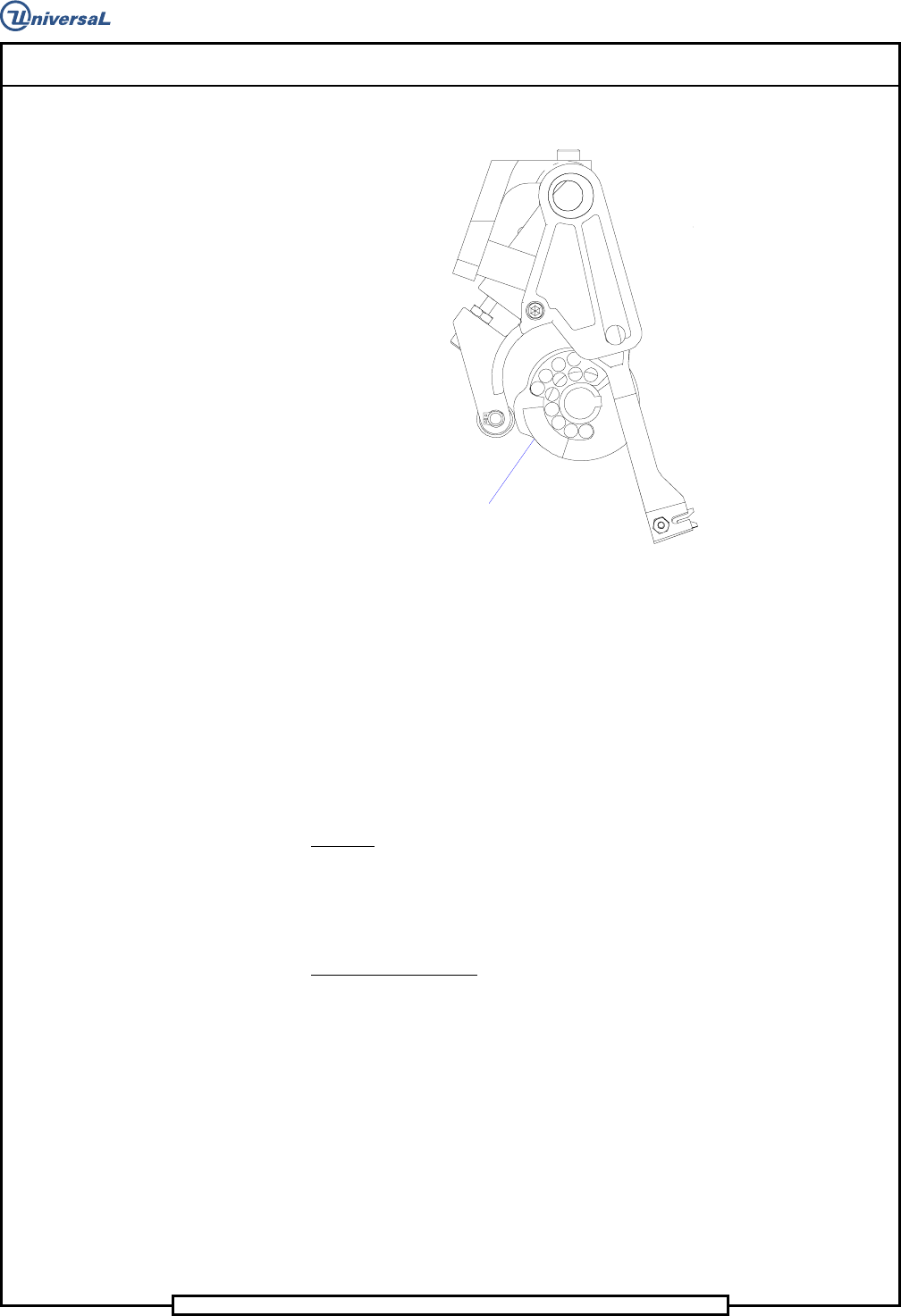

12. Manually rotate the centering cam to the orientation shown.
Centering Cam
Oriented as shown
13. While holding the centering cam in the orientation shown, engage the
centering drive belt on the centering driven pulley.
14. Loosen the cap screw securing the centering belt tensioner, allow the
tensioner to engage the belt then tighten the cap screw to secure the
tensioner in position.
End of procedure.
Cam Alignment
Purpose:
This procedure centers the cam on the cam shaft so it is properly aligned with
the insertion tooling providing the initial adjustment for component center-
ing.
Adjustment Procedure:
1. Push the STOP push button.
2. Palm the machine down as detailed in the Operation Reference
Manual.
3. Remove the two 1/4-20 socket head cap screws and then remove the
centering housing assembly.
4. With the 1/4 inch allen wrench between the tooling housings, manu-
ally close the head span axis until the allen wrench is held in place.
The allen wrench is used as an indicator of the centerline of the tool-
ing.
Page 38
T50090901 Rev. F V/S Standard Insertion Head Assembly
This Document Supports Assembly 50090901 Rev. D
5. Rest the allen wrench on top of the cam and check if the cam is cen-
tered. If the cam is centered on the allen wrench, no adjustment is re-
quired. Centered is defined as when the sides of the allen wrench are
aligned with the sides of the cam. If the cam is not centered on the
tool, proceed as follows.

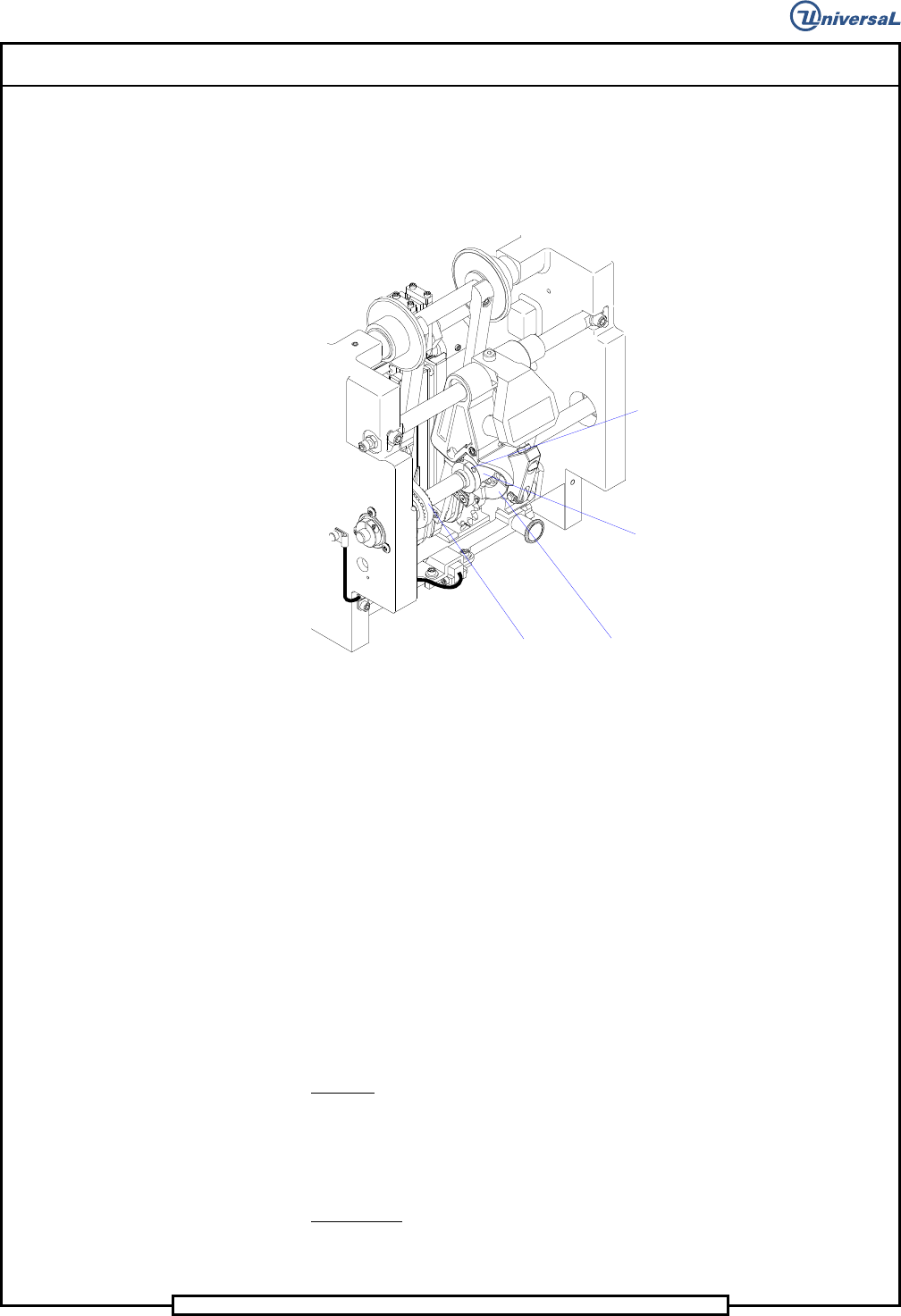

Centering Cam
Centering Drive Belt
Knurled Knob
Socket Head
Cap Screws
6. Loosen the socket head cap screw in the knurled knob next to the cam
on the side of the cam in the direction that the cam has to be adjusted.
Turn the knob away from the cam.
7. Loosen the set screw in the knurled knob on the opposite side of the
cam then turn the knurled knob until the cam is centered on the allen
wrench.
8. Turn the other knurled knob back until it contacts the cam then tighten
the set screws in both knurled knobs to secure them in position.
9. Replace the centering housing assembly.
End of procedure.
Centering Finger Alignment
Purpose:
This procedure adjusts the side to side position of the centering housing as-
sembly to ensure correct centering of components. This is the fine adjust-
ment to correct for components that are being inserted off center.
Prerequisite:
Cam Alignment
