Functional description - Special design for the hybrid clamping unit with vacuum check
02/2006 Edition
35
2.4.3 Mechanical
Input conveyor 2
2
2
2
2
2
>

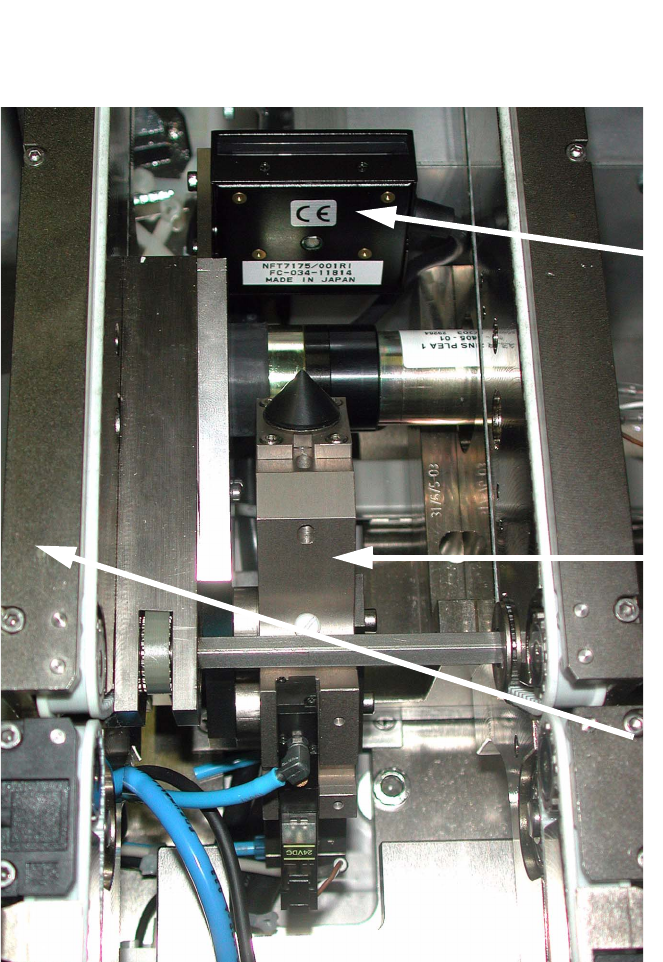

Barcode/stopper holder 00358789-01
> Reworked stopper module 00358792-01
> Photoelectric switch mounting rail 00358787-01
Barcode
scanner option
Reworked
stopper module
Barcode/
stopper holder
Functional description - Special design for the hybrid clamping unit with vacuum check
02/2006 Edition
36
Center belt 2
2
2
2
2
2
2

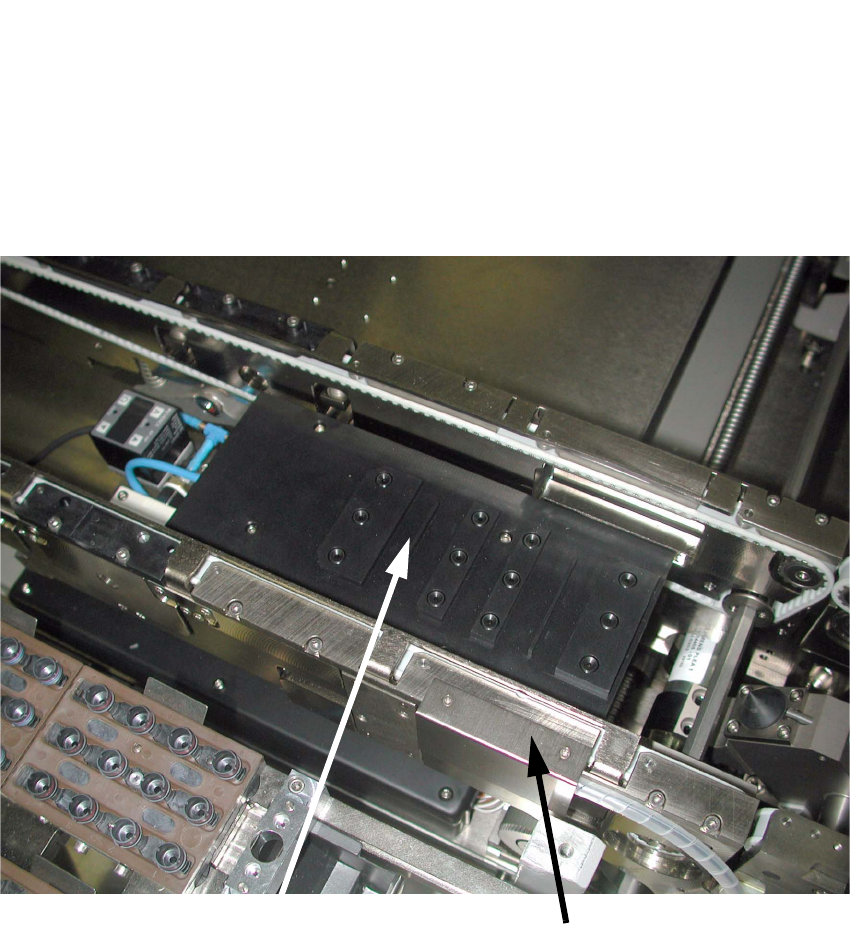

> Reworked lifting table bed 00358793-01
> PCB vacuum support 00358781-01
Photoelectric switch mounting rail 00358787-01
Base plate 00358782-01
Brace 00358783-01
Lift-out plate 00358784-01
> Photoelectric switch mounting rail 00358786-01
> Vacuum connector base plate 00375531-01
Photoelectric switch mounting rail
Lift-out plate
Functional description - Special design for the hybrid clamping unit with vacuum check
02/2006 Edition
37
2.4.4 Pneumatic elements
– 3/2-way valve with silencer (contained in cable 00332746)
– Vacuum generator 00323173-01
– Keyence air pressure sensor 00366201-01
2
2
2
KEYENCE -
Air pressure
sensor
Vacuum
generator
