Functional description - Special design for the hybrid clamping unit with vacuum check
02/2006 Edition
42
Test 2
Functional description - Special design for the hybrid clamping unit with vacuum check
02/2006 Edition
43
2.6.2 Installing additional modules

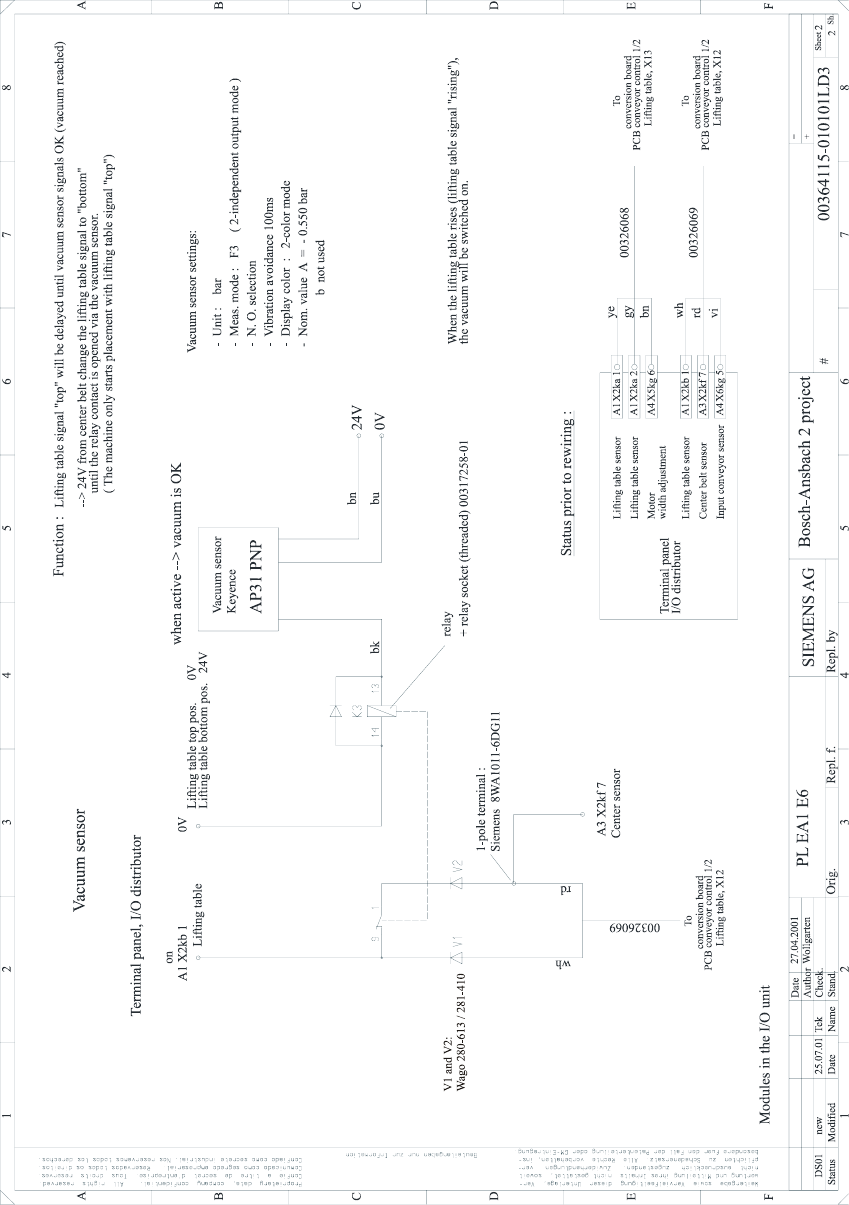

Vacuum tooling control 2

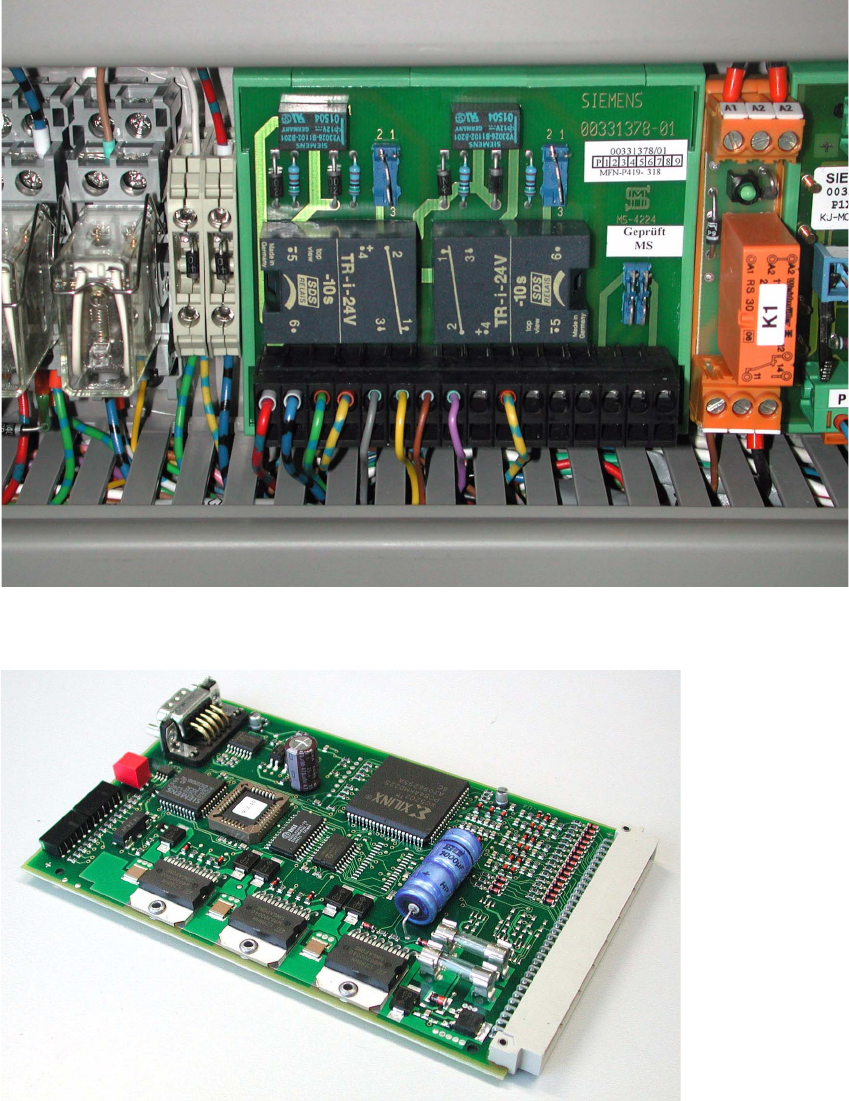

The vacuum tooling control is fitted in the terminal block. 2
2
Digital half-bridge 2
2
Functional description - Special design for the hybrid clamping unit with vacuum check
02/2006 Edition
44

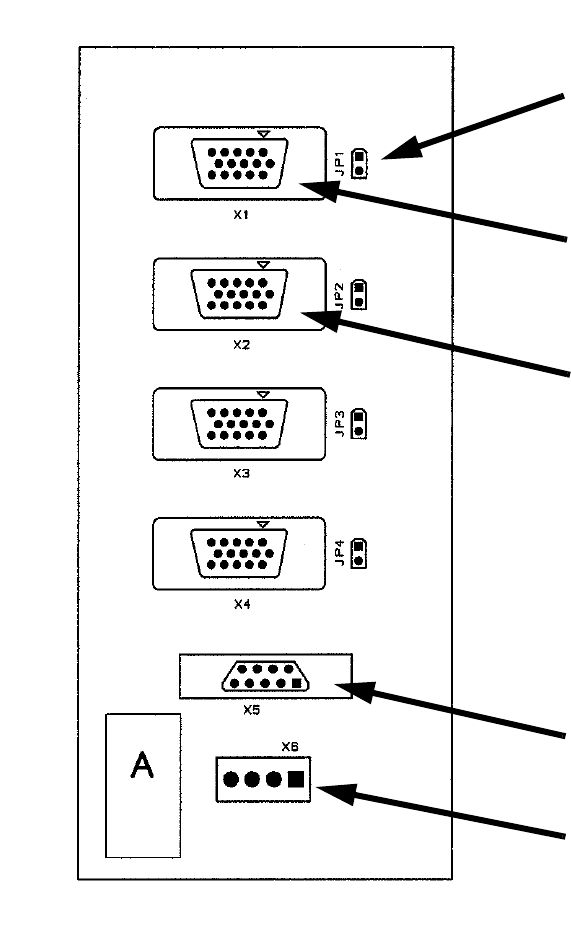

PCB barcode distributor board 2
2
Fig. 2 - 1 PCB barcode distributor
The module is installed above the heavy current unit. 2
2
2
2
2
Remove jumper
Cable 00364931 to
Opticon barcode reader
Cable 00359664 to in-
put belt stopper
Cable 00345333 to
conveyor control
Cable 00345332 to I/O
distributor
