1-4
三星
SM-Series
气动带式喂料器的操作手册
1.1.4. 喂料器底座
喂料器底座的前面下端装有喂料器基线板，给SM 喂料器供给电源，并且接受输入
及输出信号。还有喂料器基线板下方装有与缝数相同数量的气接头，给喂料器提供
空压。
图
1.4
喂料器底座的外观
1:
喂料器控制面板
2:
气接头
No. Name No. Name No. Name
1
夹钳杆
2
状态显示部
3
塑料箱部
4
Drain部
5
手动喂料杆
6
控制部
7
磁带导轨
8
Reel吊挂部
9
Index部
10
剥塑料位置调节部
11
夹钳杆
12
节距调节部
1-5
Overview
1.2. SM带式喂料器规格
1.2.1. SM带式喂料器种类
表
1.1
带式喂料器种类及移动间距
(IT Type)
品名
带宽
(mm)
输送间距(mm)
IT Tape
Feeder
IT 8mm 0402 Tape Feeder 8
0402专用
IT 8mm 2P Tape Feeder 8 2
IT 8mm 4P Tape Feeder 8 4
IT 12mm Tape Feeder 12 4, 8, 12
IT 16mm Tape Feeder 16 4, 8, 12, 16
IT 24mm Tape Feeder 24 4, 8, 12, 16, 20, 24
IT 32mm Tape Feeder 32 4, 8, 12, 16, 20, 24, 32
IT 44mm Tape Feeder 44 4, 8, 12, 16, 20, 24, 32, 40
IT 56mm Tape Feeder 56 4, 8, 12, 16, 20, 24, 32, 40
IT 72mm Tape Feeder 72 4, 8, 12, 16, 20, 24, 32, 40
IT 88mm Tape Feeder 88 4, 8, 12, 16, 20, 24, 32, 40
Non IT
Tape
Feeder
Non-IT 8mm 0402 Tape Feeder 8
0402专用
Non-IT 8mm 2P Tape Feeder 8 2
Non-IT 8mm 4P Tape Feeder 8 4
Non-IT 12mm Tape Feeder 12 4, 8, 12
Non-IT 16mm Tape Feeder 16 4, 8, 12, 16
Non-IT 24mm Tape Feeder 24 4, 8, 12, 16, 20, 24
Non-IT 32mm Tape Feeder 32 4, 8, 12, 16, 20, 24, 32
Non-IT 44mm Tape Feeder 44 4, 8, 12, 16, 20, 24, 32, 40
Non-IT 56mm Tape Feeder 56 4, 8, 12, 16, 20, 24, 32, 40
Non-IT 72mm Tape Feeder 72 4, 8, 12, 16, 20, 24, 32, 40
Non-IT 88mm Tape Feeder 88 4, 8, 12, 16, 20, 24, 32, 40
1-6
三星
SM-Series
气动带式喂料器的操作手册
1.2.2. 适用卷轮(Reel)
SM 喂料器可对应的卷轮直径依据下表。此时，SM 8mm带式喂料器卷轮宽度(W2)
在 13.0mm以内。
表
1.2 SM
带式喂料器使用可能的卷轮直径

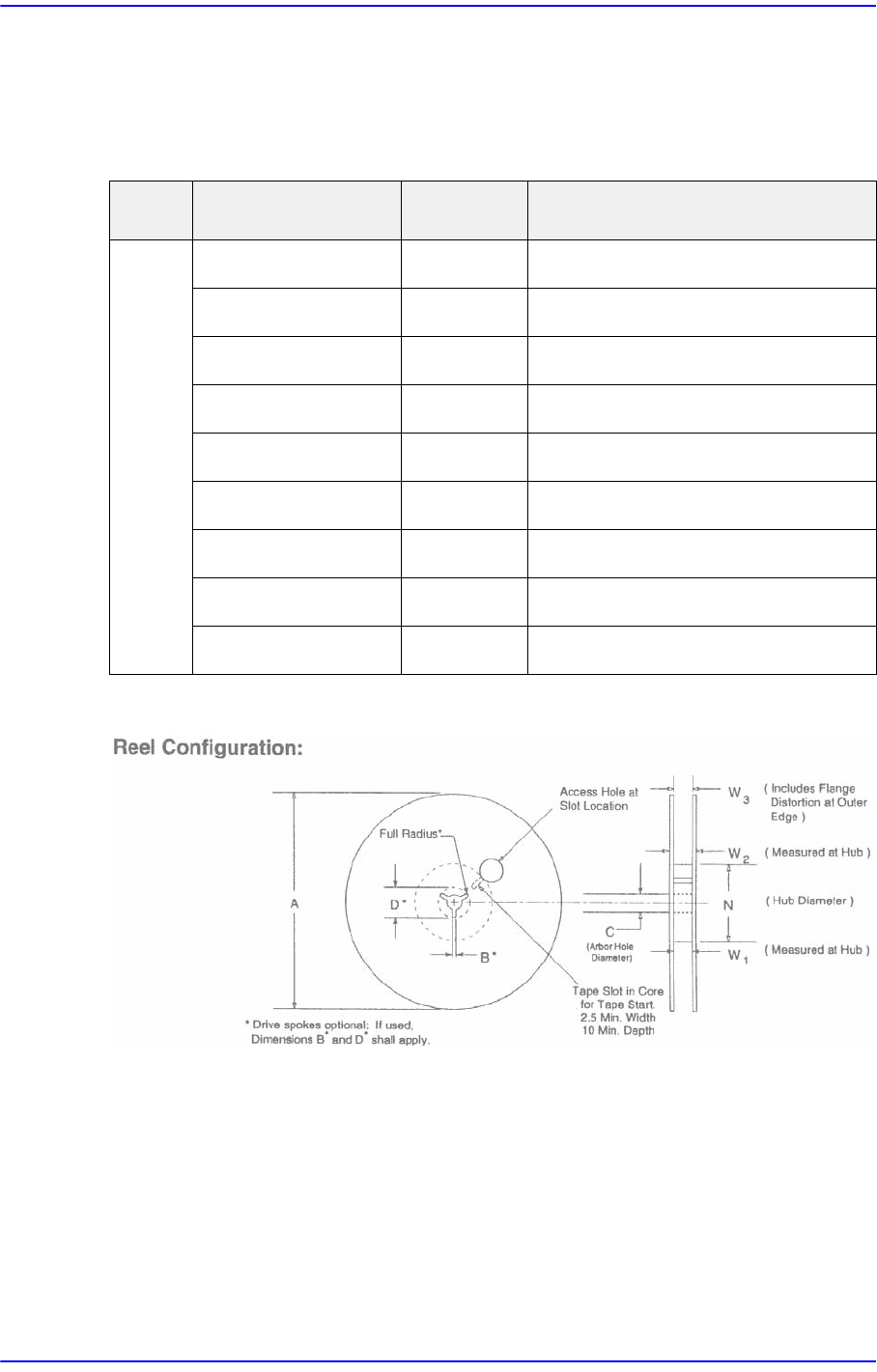

图
1.5
卷轮
(Reel)
尺寸
品名
带(Tape)宽 卷轮直径 “A”(mm)
IT /
Non IT
Tape
Feeder
8mm Tape Feeder 8 ф178,ф180
12mm Tape Feeder 12 ф178,ф180,ф254,ф330,ф380
16mm Tape Feeder 16 ф178,ф180,ф254,ф330,ф380
24mm Tape Feeder 24 ф178,ф180,ф254,ф330,ф380
32mm Tape Feeder 32 ф178,ф180,ф254,ф330,ф380
44mm Tape Feeder 44 ф178,ф180,ф254,ф330,ф380
56mm Tape Feeder 56 ф178,ф180,ф254,ф330,ф380
72mm Tape Feeder 72 ф178,ф180,ф254,ф330,ф380
88mm Tape Feeder 88 ф178,ф180,ф254,ф330,ф380
