16 3.4 Instruction of Inpu t & Output ⚫ The following input interfaces and output interfaces are corresponding to the si gnal pins which are defined as “Min, Mout, Ein, Eou t” at the abov e socket. I t a lso correspo…
15

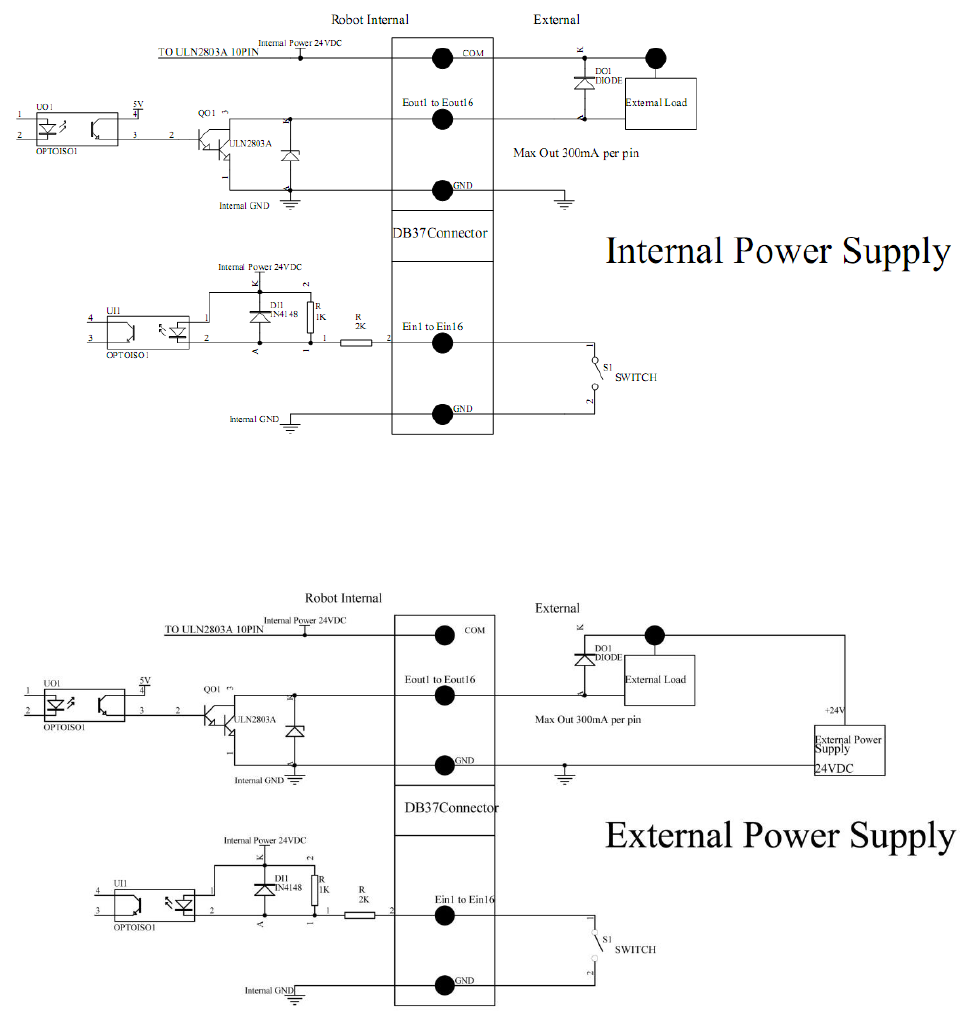

3.3.2 Circuit Diagram of DB37
16
3.4 Instruction of Input & Output
⚫ The following input interfaces and output interfaces are corresponding to the signal pins which are defined as
“Min, Mout, Ein, Eout” at the above socket. It also corresponds to the interface at the “IO Test” display window.
⚫ After setting, the function of IO interface can be tested at the “IO Test” display window.
⚫ The interfaces, in the following table, can be set at the “Input Config” or “Output Config” of “System Config
2” of teaching pendant. It can define the special function for the following input & output interfaces which are
corresponding to the above sockets.

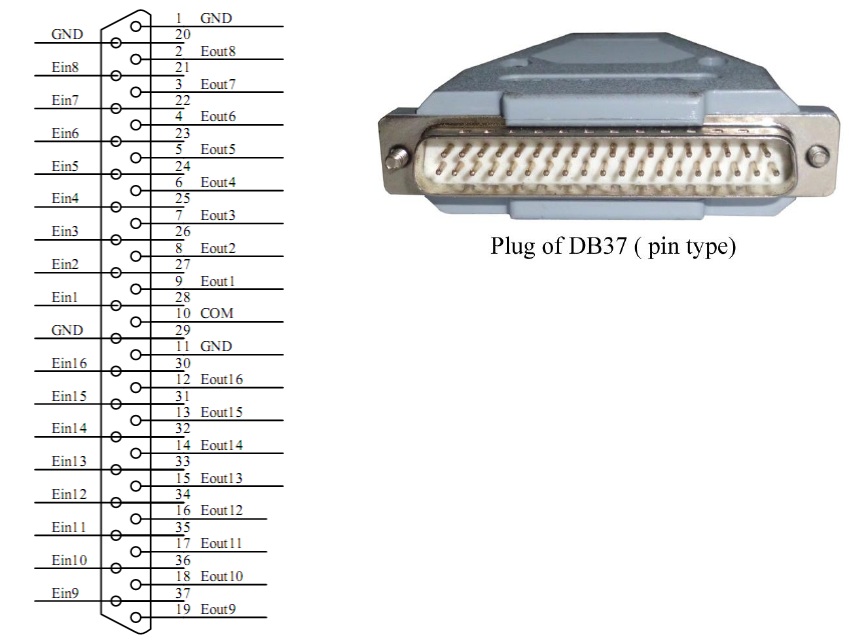

Connection of DB37 plug
17
3.4.1 IO Function Definition
1. In the “Input Config 2” displaying window, it can set the input interface: Min1~Min4 & Ein1-8 & Ein 09~Ein16.
Input Interface
Optional Function
Min1
--, Shortcut1, Origin BTN, Test input-L, Test input-H
Min2
--, Shortcut 2, Stop BTN, Test input-L, Test input-H
Min3
--, Shortcut 3, Start BTN, Test input-L, Test input-H, Lack fault, Block fault, Temp fault,
Temp\Feed fault, Upper CS, Nether CS
Min4
--, Shortcut 4, Foot BTN, Test input-L, Test input-H
Ein1~Ein8
--, Shortcut 5-259
Ein09
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Adj X-Limit,
Shortcut 260, Upper CS, Nether CS
Ein10
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Adj X-Limit,
Shortcut 261, Upper CS, Nether CS
Ein11
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Adj X-Limit,
Shortcut 262, Upper CS, Nether CS
Ein12
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Shortcut 263,
Lack fault, Block fault, Temp fault, Temp\Feed fault, Upper CS, Nether CS
Ein13
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Shortcut 264,
Lack fault, Block fault, Temp fault, Temp\Feed fault, Upper CS, Nether CS
Ein14
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Shortcut 265,
Lack fault, Block fault, Temp fault, Temp\Feed fault, Upper CS, Nether CS
Ein15
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Shortcut 266,
Lack fault, Block fault, Temp fault, Temp\Feed fault, Upper CS, Nether CS
Ein16
--, Origin BTN, Stop BTN, Start BTN, Foot BTN, Test input-L, Test input-H, Shortcut 267,
Lack fault, Block fault, Temp fault, Temp\Feed fault, Upper CS, Nether CS
