4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 03/2005 US Version 3.0

Step 1

Æ Insert the SIPLACE Pro installation CD into the CD-ROM drive. The installation routine starts

automatically.

You can also start the installation by running the Setup.exe program located in the root direc-

tory on the installation CD.

This starts the user-controlled installation of SIPLACE Pro; you are prompted to select the in-

stallation language. 4

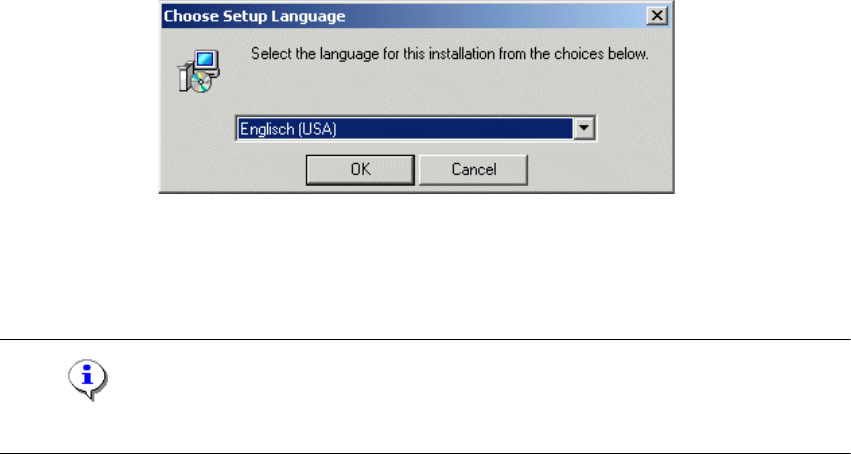

Fig. 4 - 1 "Choose Setup Language" dialog box

Æ Select the language you want.

Æ Click OK.

Note

This decision only relates to the language used during the installation routine! 4

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Version 3.0 Edition 03/2005 US

Step 2

The InstallShield Wizard will guide you through the program setup process. 4

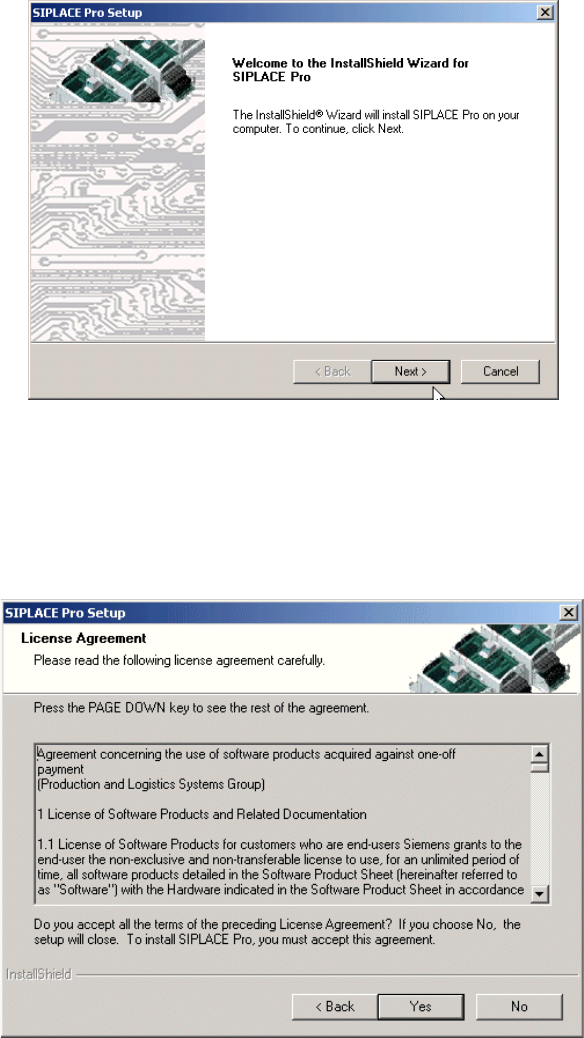

Fig. 4 - 2 InstallShield Wizard box for Siplace Pro

Æ Click Next.

Step 3

Æ Read the license agreement of Siemens AG relating to use of this software.

Fig. 4 - 3 "Software License Agreement" dialog box

Æ The installation routine continues if you click the Yes button to accept the license agreement.

Clicking No cancels the installation.

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 03/2005 US Version 3.0

Step 4

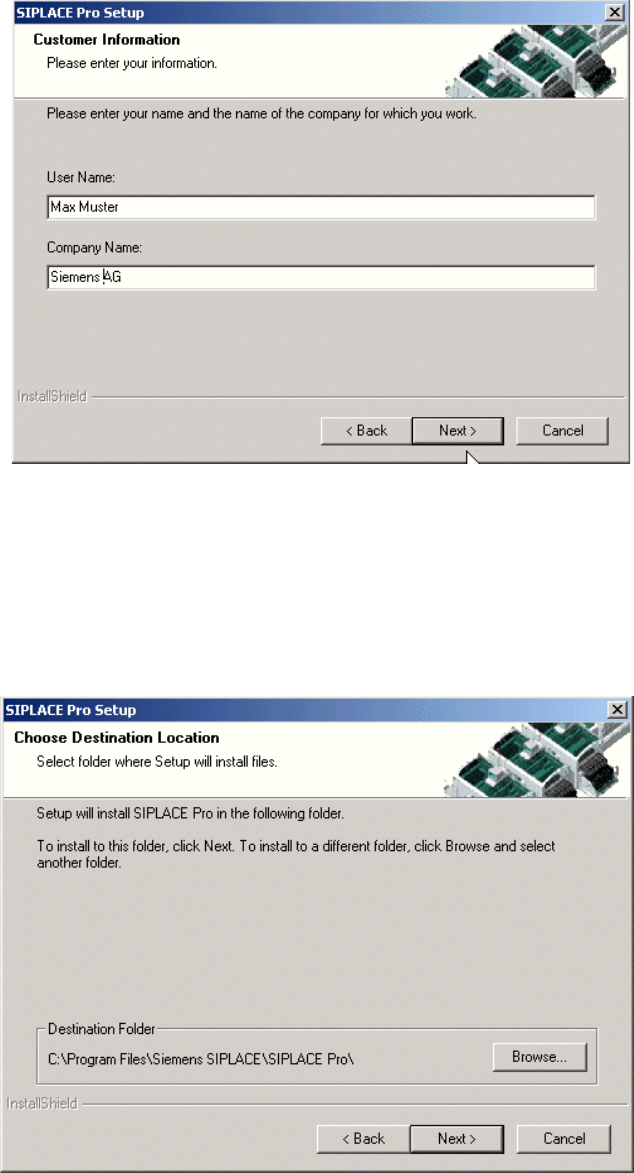

Fig. 4 - 4 "Customer Information" dialog box

Æ Enter your User Name and Company Name in the "Customer Information" dialog box.

Æ Both boxes must be filled in before the installation process can be continued.

Æ Click Next.

Step 5

Fig. 4 - 5 "Choose Destination Location" dialog box
