Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Version 3.0 Edition 03/2005 US

Step 2

In the "Setup Features" dialog box, select the features you want to install. 4

Fig. 4 - 7 "Select Features" dialog box

– The disk space required by all selected components is shown. The size information for

SIPLACE Pro Database is misleading, since it only takes into account the size of the SQL

scripts copied by InstallShield and installed for these components. The size of the database

itself needs to be considered in addition. The initial value is defined in a later dialog when

creating a new database and the database size is dynamic anyway.

Æ Select the features you want to install.

Hint

You need to install SIPLACE Pro Interface as minimum requirement for external applications. 4

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 03/2005 US Version 3.0

I 4

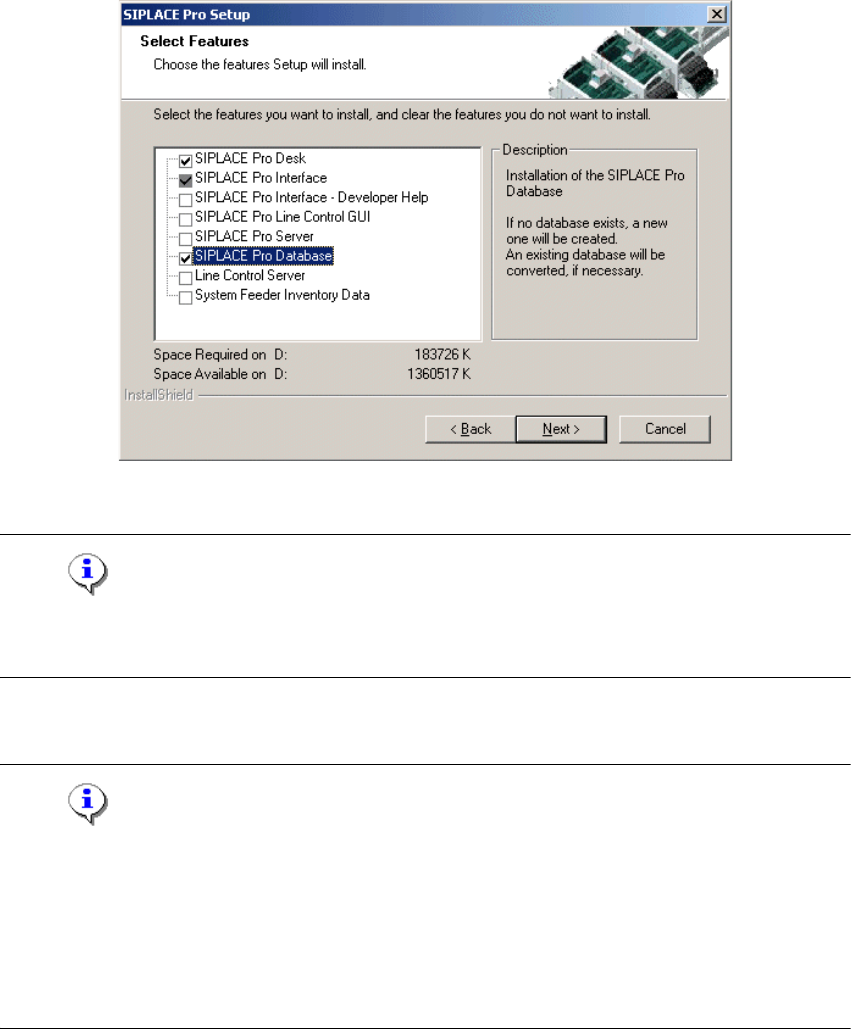

Fig. 4 - 8 "Select Features" dialog box

Note

After choosing the feature "SIPLACE Pro Database" it is immediately checked if SQL server or

MSDE (Microsoft Data Desktop Engine) is installed on the computer. 4

Æ Click Next.

Note

From this point onwards, the dialog boxes displayed depend on which features have been

selected (either implicit via the other Setup Type selection or explicit in the Custom Setup Type).

The sequence varies according to which features and options have been selected, so there are

many possible combinations. It is not feasible to describe all the combinations for Custom instal-

lation here. However, you will see the individual dialog boxes occurring in the course of the follow-

ing setup types. 4

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Version 3.0 Edition 03/2005 US

4.2.2 Setup Type – SIPLACE Pro Complete System

This setup type contains all SIPLACE Pro components for operating the system on a single com-

puter. Setup detects if SQL Server or MSDE (Microsoft Data Desktop Engine) has already been

installed. 4

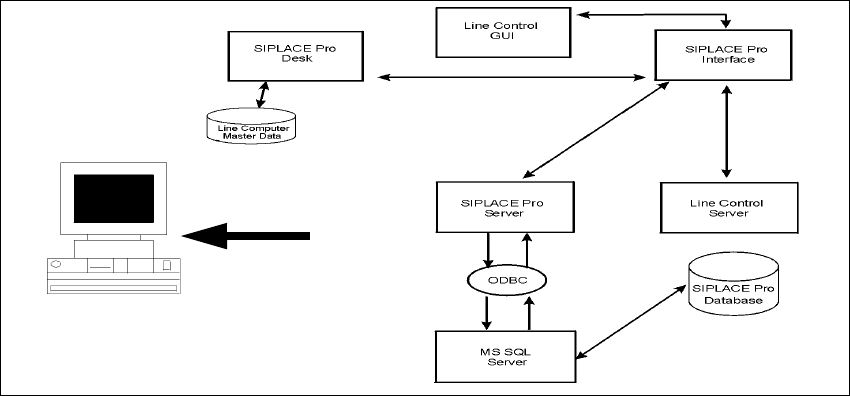

Fig. 4 - 9 Components – SIPLACE Pro Complete Installation

Select this type to install all SIPLACE Pro system components (Programming system, LC GUI, LC

Server) on one computer as described here. However, it is possible to integrate further clients on

other computers. 4

Step 1

Æ Run through the steps in ”Starting installation – first steps” from page 15.

Æ Select the SIPLACE Pro complete system setup type

Æ Click Next.

Setup
