4 Installation of SIPLACE Pro and possible Setu p Types Installation manual SIPLACE Pro Edition 03/2005 US Version 3.0 28 The figure you enter in the MB text box defines the size of the SIPLACE Pro database files ( SIPLA…

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Version 3.0 Edition 03/2005 US

In case no database with the name "SIPLACE Pro" exists, the following dialog will appear: 4

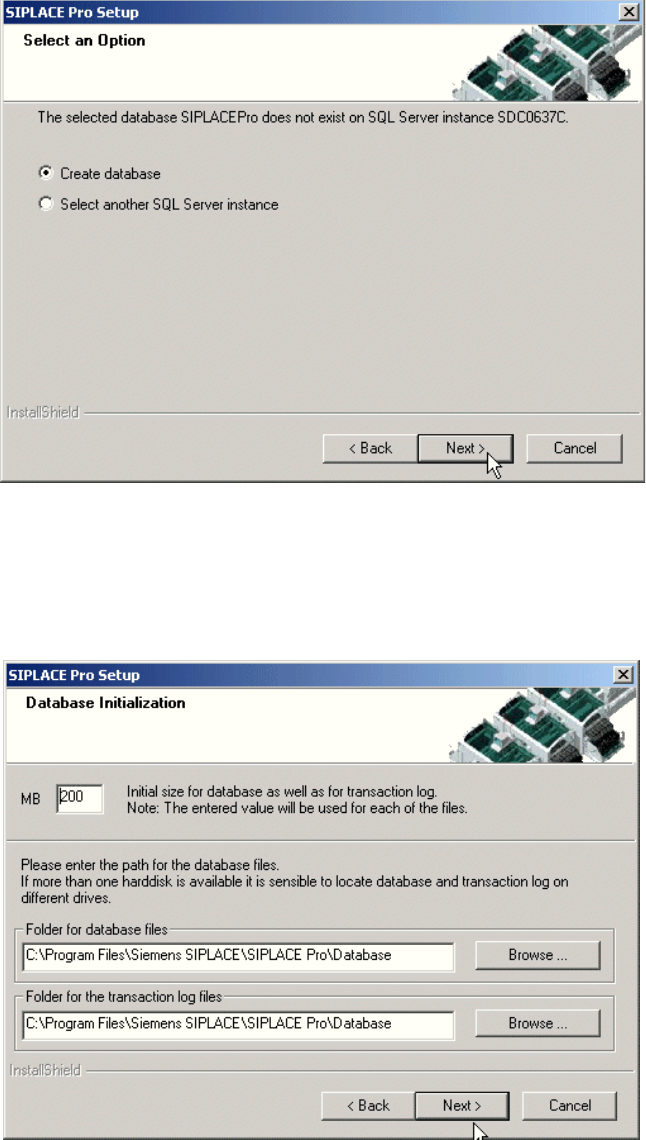

Fig. 4 - 13 "Create database" dialog box

Æ If you choose Select another SQL Server instance you will be returned to the previous

dialog.

Æ Click Next to create a new database.

Fig. 4 - 14 "Database initialization" dialog box

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 03/2005 US Version 3.0

The figure you enter in the MB text box defines the size of the SIPLACE Pro database files

(SIPLACE Pro Data.dat and SIPLACE Pro Log.dat) which are to be created during the

installation. 4

Æ Confirm the default value or

Æ enter the size you want in the MB text box.

Note

The specified size is only an initial value. The database will grow automatically as required.

However, only intervention by the database administrator is capable of freeing up unused disk

space. 4

Æ In the "database files" edit field, enter the directory in which the SIPLACE Pro Data.dat file is

to be created.

Æ In the transaction log files edit field, enter the name of the directory in which the

SIPLACE Pro Log.dat database file is to be created.

Note

You can specify a different folder for each of the database files. Indeed, having the files on different

hard disks improves disk access performance. 4

Æ If you choose Next the following dialog will appear:

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Version 3.0 Edition 03/2005 US

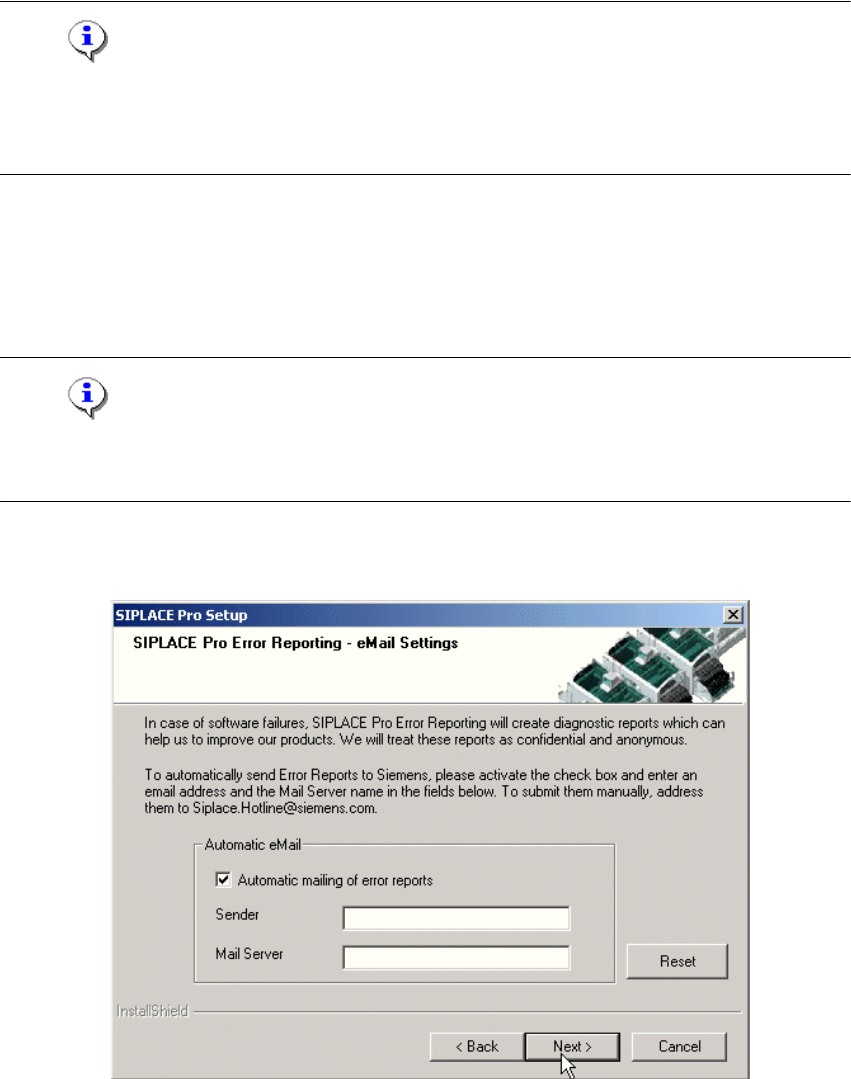

Æ If you wish for Error Reports to be sent automatically to Siemens, fill in your email address and

Mail Server name. The mail server field is preset to a valid name as found in your domaine.

In case of errors, the SIPLACE Pro Error Reporting Tool will automatically create an error report

and will mail these reports to Siemens. 4

The settings are used to configure the SIPLACE Pro Error Reporting Tool. Depending on your set-

tings these reports are automatically mailed to Siemens support personnel or are available for you

to se sent later on. 4
