4 Operation
4.18 Logging off and removal
80 User Manual SIPLACE Linear Dipping Unit 2 X 05/2020

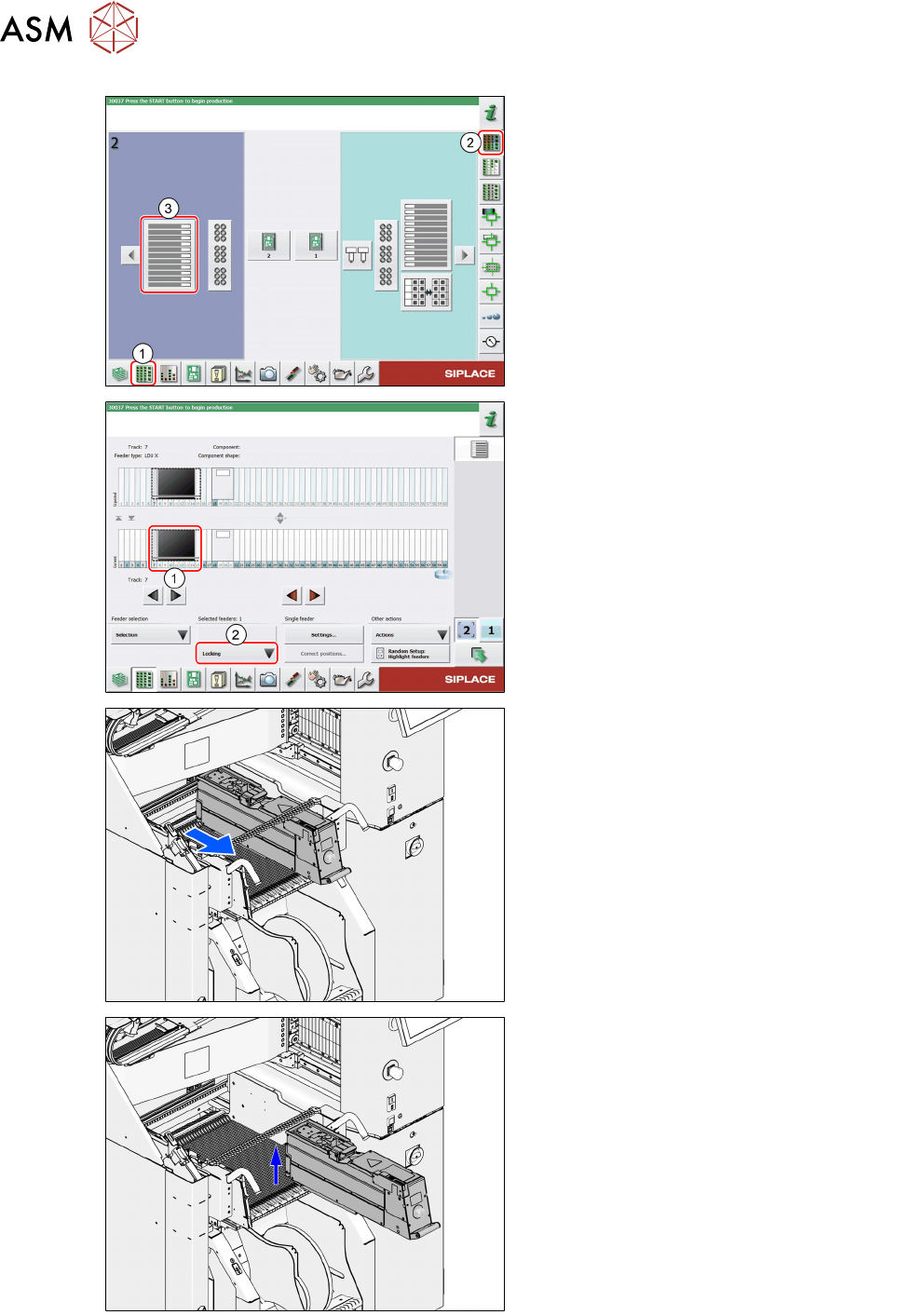

► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Changeover table (3) on which
the LDU is set up.
► Select the icon of the LDU(1).
► Click on the Locking button (2) and select
Unlock
.
The LDU will be logged off and unlocked from
the placement machine.
► Carefully pull the LDU 2 X backwards by
the handle.
► Remove the LDU 2 X with both hands from
the changeover table.
5 Cleaning
5.1 Cleaning agents and tools
User Manual SIPLACE Linear Dipping Unit 2 X 05/2020 81
5 Cleaning
WARNING
Danger of crushing.
Service mode gives you access to all the movable parts of the LDU.
► Do NOT reach into the machine while it is running.
WARNING
Health risk.
The flux and cleaning agents used may contain substances which are hazardous to your
personal health.
► Wear your personal protective equipment (coat, glasses, mask, and gloves).
► Observe the safety data sheet of the relevant flux.
WARNING
Damage of the LDU by improper disassembly.
A disassembly of the LDU beyond the actions described in this chapter can lead to damage
and may only be handled by specially trained employees.
► Remove only those parts which have to be cleaned for proper operation of the LDU.
WARNING
Damage of the LDU by spilled cleaning agents.
The LDU moves during the cleaning process.
► Make sure that there are no cleaning agents or tools on the LDU.
NOTICE
Target group: standard operator
The procedures described in this chapter are regular tasks that can be carried out by any
trained operator.
5.1 Cleaning agents and tools

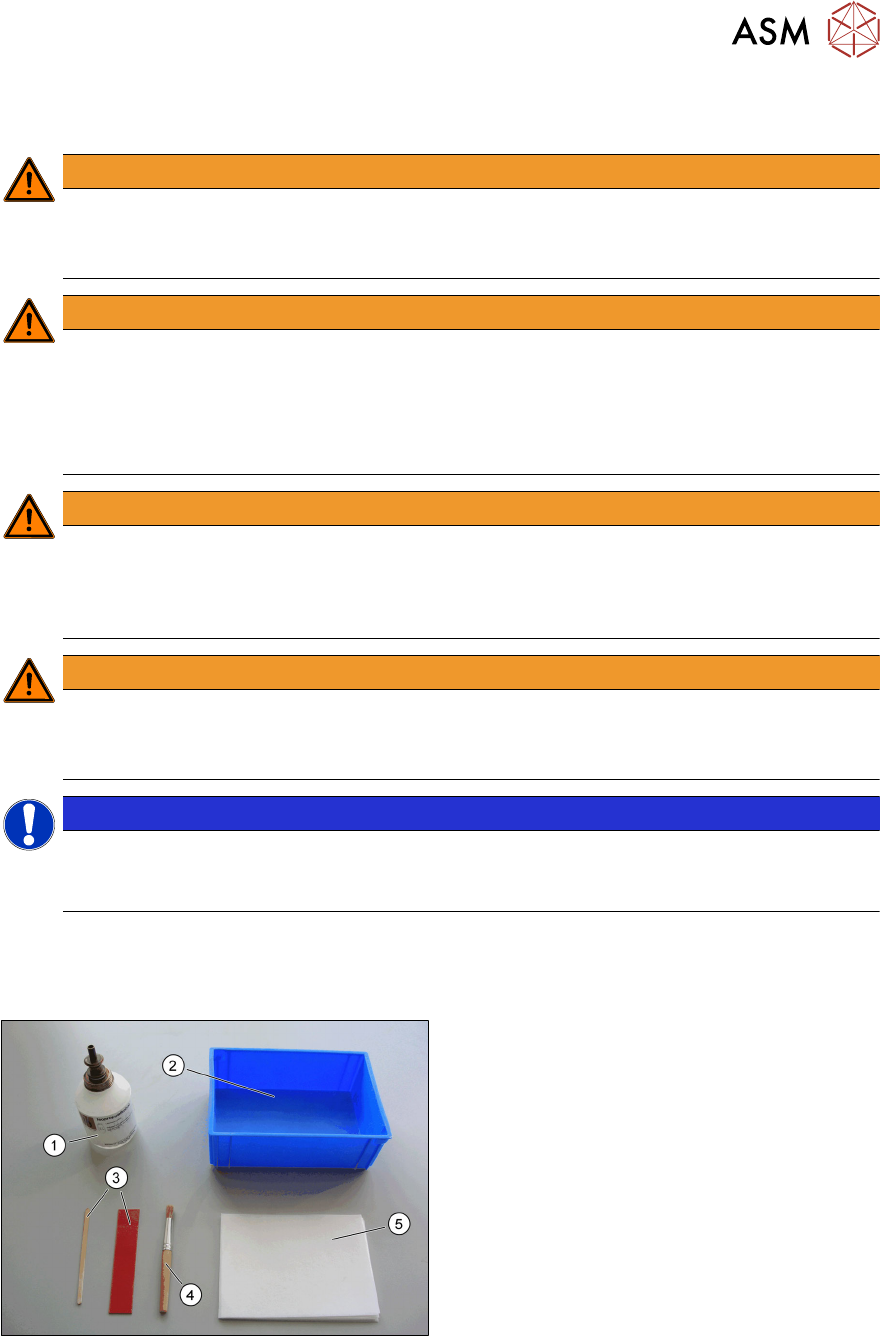

Suitable cleaning agents and tools are:
1. Ethanol, isopropyl and water
2. Tub or bowl for cleaning
3. Plastic or wooden scraper
4. Brush
5. Lint-free cleansing tissues
5 Cleaning
5.2 Removing the parts to be cleaned
82 User Manual SIPLACE Linear Dipping Unit 2 X 05/2020
5.2 Removing the parts to be cleaned
NOTICE
Observe the exact order
It is important to perform the steps for removal of the parts to be cleaned in the sequence
described here.

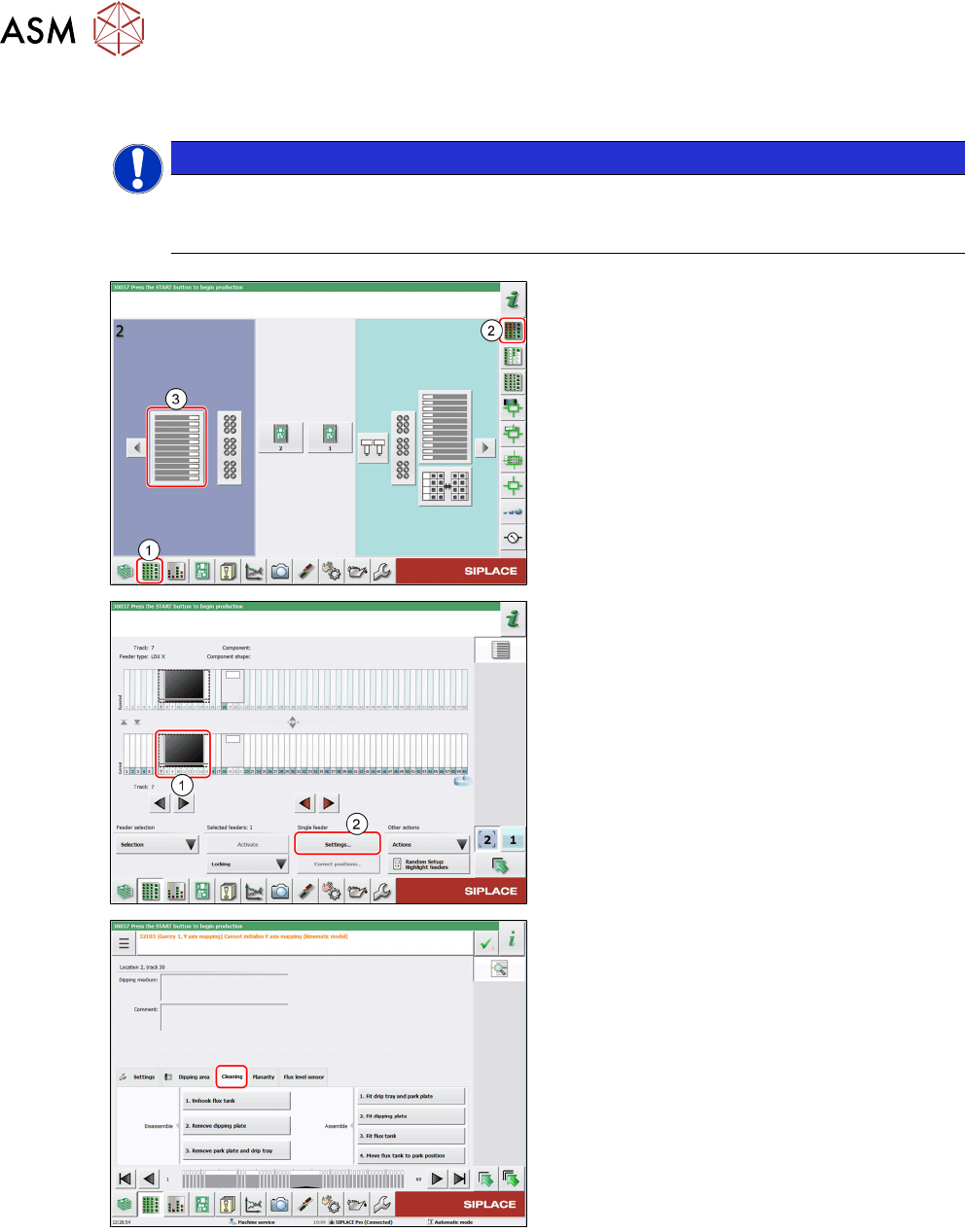

► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Table (3) on which the LDU is
set up.
► Select the icon of the LDU(1).
► Click on the Settings... button (2).
► Select the Cleaning tab.
Releasing the flux tank
Prerequisites: Park plate and dipping plate are fitted.
