elcometer.com 15 Dry Film Thickness - Digital Ferrous (F) Probes # Description Probe Length c Part Number Minimum Headroom Minimum Sample Diameter b 1 Straight Probe 45mm (1.77”) T456CF1S 85mm (3.35”) 4mm (0.16”) 1 Strai…

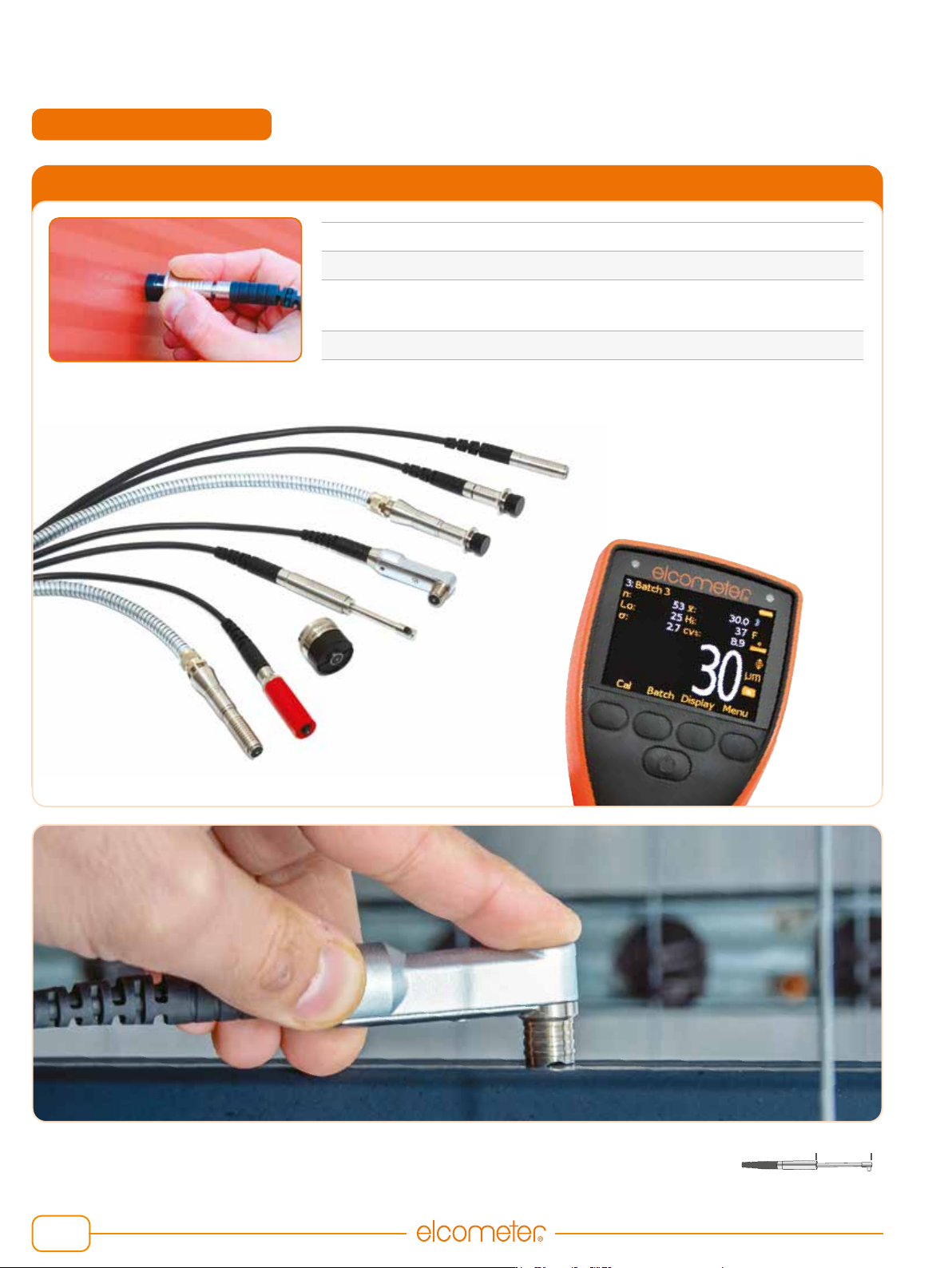

14
Dry Film Thickness - Digital
Accuracy
ae
: ±1-3% or ±2.5μm ±1-3% or ±0.1mil
Range
d
: 0-1,500μm 0-60mils
Resolution:
0.1μm: 0-100μm
1μm: 100-1,500μm
0.01mil: 0-5mils
0.1mil: 5-60mils
Certicate: ●
Scale 1 Probe Range 0-1500μm / 0-60mils
1
2
3
4
5
6
7
8
Probe Range for Separate Coating Thickness GaugeElcometer 456
c. Probe length is measured from X to Y
d. Excluding Scan Probe end cap
e. Scan Probe calibrated using a sample of the uncoated substrate
Elcometer 456 probes are covered by a 1 year warranty
a. Whichever is the greater
b. FNF (F): FNF probe in F Mode FNF (N): FNF probe in N Mode
● Certicate supplied as standard.
X Y
See '#' on the probes table on the opposite page for comparison.
elcometer.com
15
Dry Film Thickness - Digital
Ferrous (F) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
1
Straight Probe 45mm (1.77”) T456CF1S 85mm (3.35”) 4mm (0.16”)
1
Straight Probe
sealed 45mm (1.77”) T456CF1E 85mm (3.35”) 4mm (0.16”)
2
Scan Probe 45mm (1.77”) T456CF1U 86mm (3.38”) 15mm (0.59”)
3
Scan Probe
armoured 45mm (1.77”) T456CF1UARM 140mm (5.51”) 15mm (0.59”)
4
90° Probe 45mm (1.77”) T456CF1R 28mm (1.10”) 4mm (0.16”)
5
90° Mini Probe 45mm (1.77”) T456CFM5R90A 16mm (0.63”) 4mm (0.16”)
5
90° Mini Probe
sealed 45mm (1.77”) T456CFME5R90A 16mm (0.63”) 4mm (0.16”)
5
90° Mini Probe
sealed, 2m cable 45mm (1.77”)
T456CFME5R90A-2
16mm (0.63”) 4mm (0.16”)
6
PINIP™ Integral Probe T456CF1P 170mm (6.69”) 4mm (0.16”)
Probe Range for Separate Coating Thickness GaugeElcometer 456
c. Probe length is measured from X to Y
d. Excluding Scan probe end cap
e. Scan Probe calibrated using a sample of the uncoated substrate
Elcometer 456 probes are covered by a 1 year warranty
a. Whichever is the greater
b. FNF (F): FNF probe in F Mode FNF (N): FNF probe in N Mode
● Certicate supplied as standard.
X Y
Non-Ferrous (N) Probes
Ferrous & Non-Ferrous (FNF) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
1
Straight Probe 45mm (1.77”) T456CN1S 85mm (3.35”) 4mm (0.16”)
4
90°Probe 45mm (1.77”) T456CN1R 28mm (1.10”) 4mm (0.16”)
5
Mini 90°Probe 45mm (1.77”) T456CNM5R90A 16mm (0.63”) 4mm (0.16”)
5
Mini 90°Probe 150mm (5.90") T456CNM5R90C 16mm (0.63”) 4mm (0.16”)
5
Mini 90°Probe 400mm (15.7”) T456CNM5R90E 16mm (0.63”) 4mm (0.16”)
6
PINIP™ Integral Probe T456CN1P 180mm (7.09”) 4mm (0.16”)
7
Anodiser Probe 45mm (1.77”) T456CN1AS 100mm (3.94”) 4mm (0.16”)
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
1
Straight Probe 45mm (1.77”) T456CFNF1S 88mm (3.46”)
F: 4mm (0.16”)
N: 6mm (0.24”)
2
Scan Probe 45mm (1.77”) T456CFNF1U 89mm (3.50”) 15mm (0.59”)
4
Right Angle Probe 45mm (1.77”) T456CFNF1R 38mm (1.50”)
F: 4mm (0.16”)
N: 6mm (0.24”)
6
PINIP
™
Integral Probe T456CFNF1P 180mm (7.09”)
F: 4mm (0.16”)
N: 6mm (0.24”)
8
Straight Probe
armoured cable 45mm (1.77”) T456CFNF1ARM 185mm (7.28")
F: 4mm (0.16")
N: 6mm (0.24")

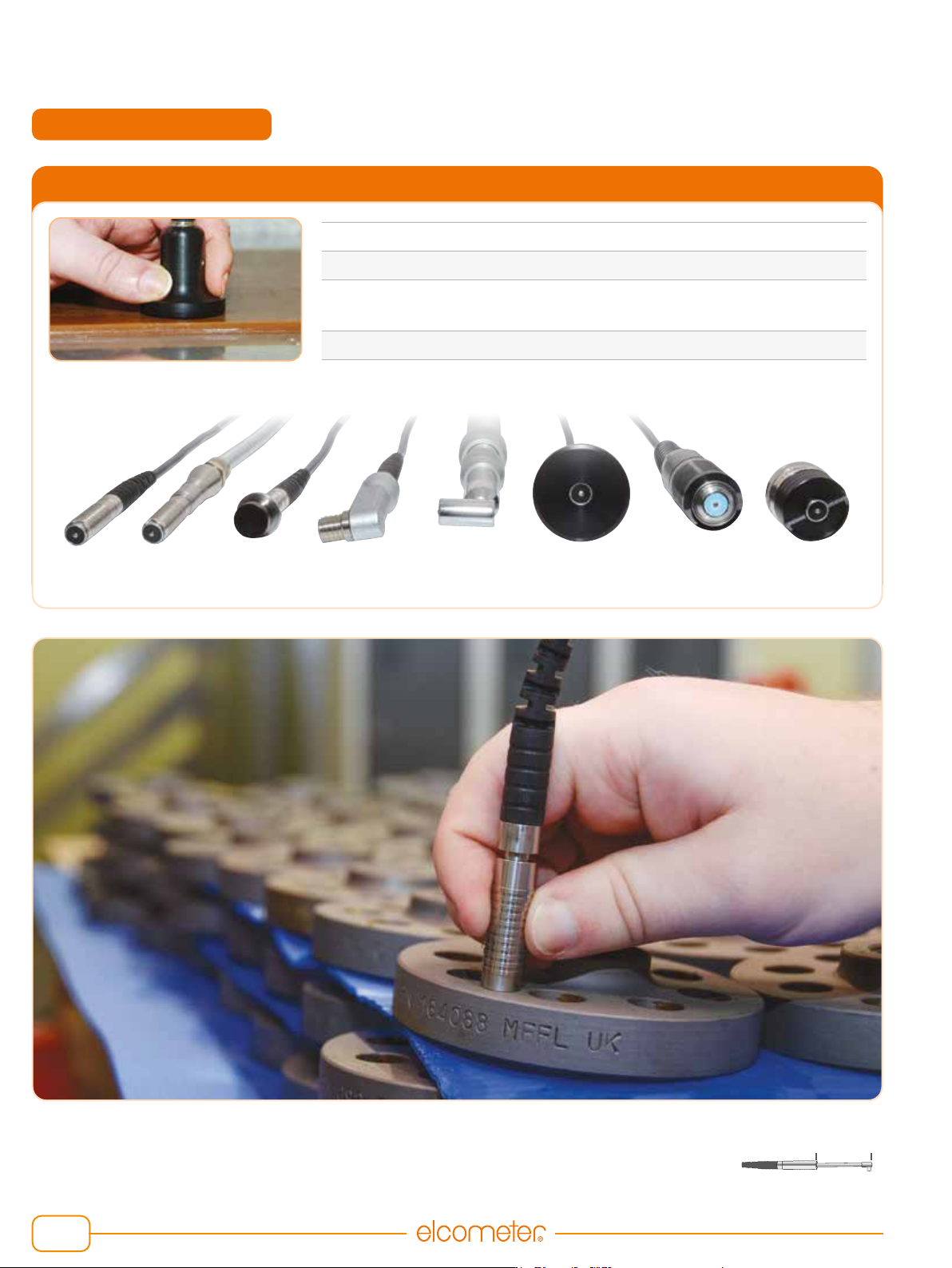

16
Dry Film Thickness - Digital
Accuracy
ae
: ±1-3% or ±20μm ±1-3% or ±1.0mil
Range
d
: 0-5mm 0-200mils
Resolution:
1μm: 0-1mm
10μm: 1-5mm
0.1mil: 0-50mils
1.0mil: 50-200mils
Certicate: ●
Scale 2 Probe Range 0-5mm / 0-200mils
1 2 3 4 5 6 7 8
Probe Range for Separate Coating Thickness GaugeElcometer 456
a. Whichever is the greater
b. FNF (F): FNF probe in F Mode FNF (N): FNF probe in N Mode
Elcometer 456 probes are covered by a 1 year warranty
● Certicate supplied as standard.
X Y
See '#' on the probes table on the opposite page for comparison.
c. Probe length is measured from X to Y
d. Excluding Scan Probe end cap
e. Scan Probe accuracy is ±3% or ±0.02mm (0.8mil) with cap tted, ±1-3% or ±0.02mm
(0.8mil) without cap, when calibrated using a sample of the uncoated substrate.
