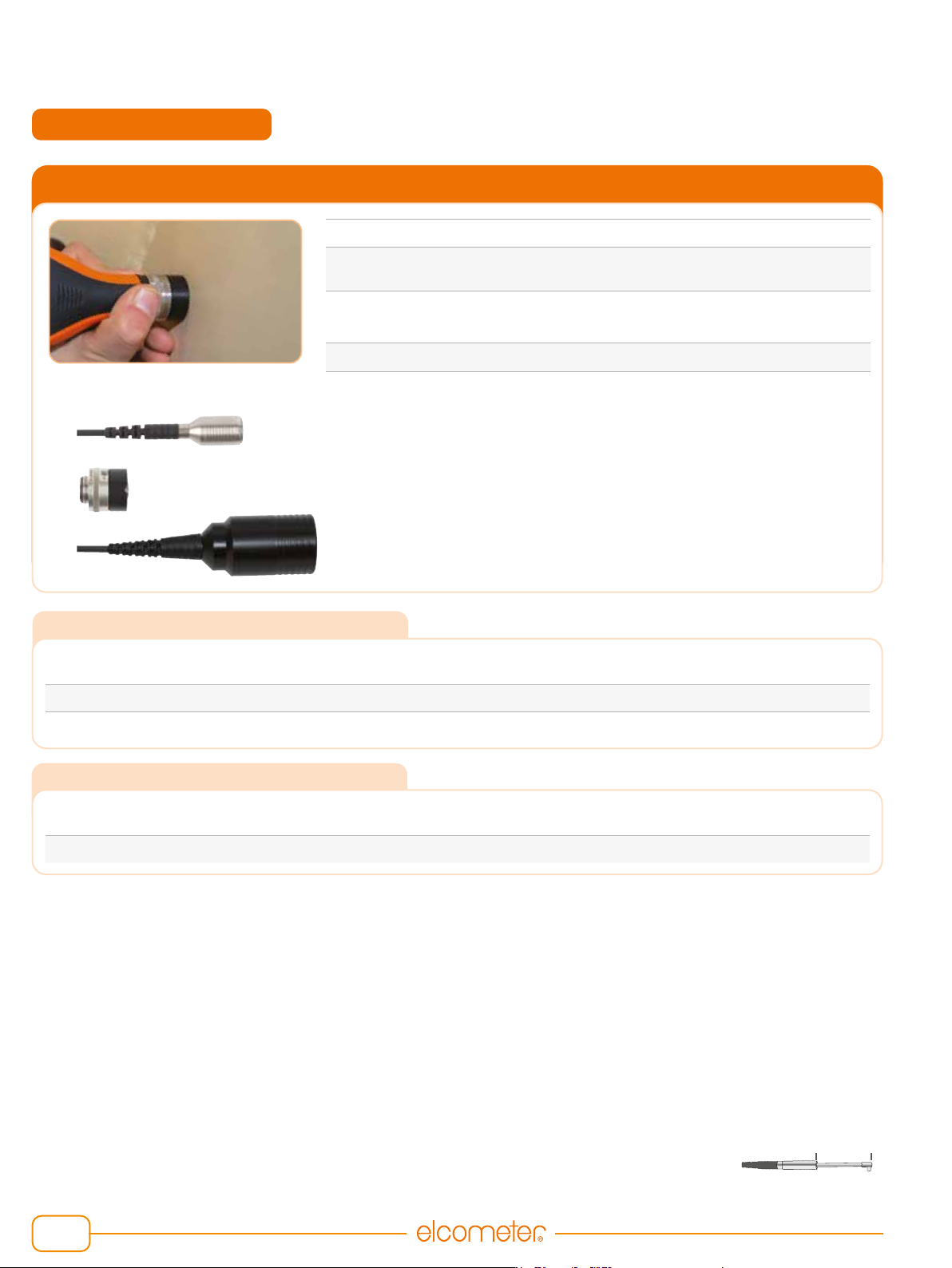

Dry Film Thickness - Digital
Probe Range for Separate Coating Thickness GaugeElcometer 456
Ferrous (F) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
1
Straight Probe 45mm (1.77”)
T456CF3S 102mm (4.02”)
14mm (0.55”)
2
PINIP
™
Integral Probe T456CF3P 184mm (7.24”)
14mm (0.55”)
Non-Ferrous (N) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
3
Straight Probe 45mm (1.77”)
T456CN3S
170mm (6.69”) 35mm (1.38”)
Accuracy
a
: ±1-3% or ±50μm ±1-3% or ±2.0mils
Range: 0-13mm 0-500mils
Resolution:
1μm: 0-2mm
10μm: 2-13mm
0.1mil: 0-100mils
1.0mil: 100-500mils
Certicate: ●
Scale 3 Probe Range 0-13mm / 0-500mils
1
2
3
c. Probe length is measured from X to Y
Elcometer 456 probes are covered by a 1 year warranty
a. Whichever is the greater
b. FNF (F): FNF probe in F Mode FNF (N): FNF probe in N Mode
● Certicate supplied as standard.
X Y
See '#' on the probes table on the opposite page for comparison.
elcometer.com
19

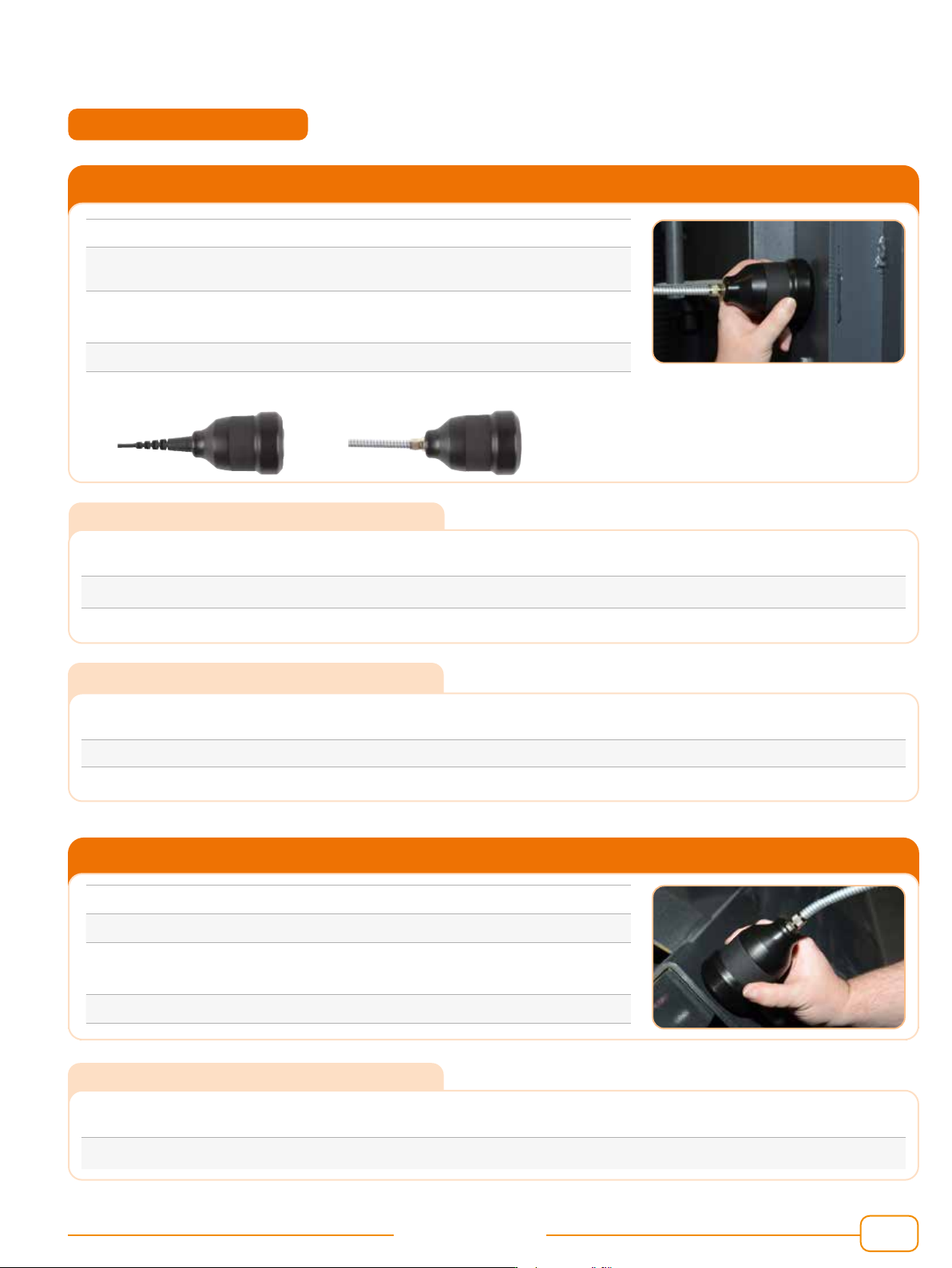

Dry Film Thickness - Digital
Ferrous (F) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
1
Straight Probe 45mm (1.77”) T456CF6S 150mm (5.90”)
51 x 51mm
2
(2 x 2 inch
2
)
2
Straight Probe
armoured cable 45mm (1.77”) T456CF6ARM 190mm (7.48”)
51 x 51mm
2
(2 x 2 inch
2
)
Non-Ferrous (N) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
1
Straight Probe 45mm (1.77”) T456CN6S 160mm (6.30”) 58mm (2.29”)
2
Straight Probe
armoured cable 45mm (1.77”) T456CN6ARM 200mm (7.87") 58mm (2.29”)
Accuracy
a
: ±1-3% or ±100μm ±1-3% or ±4.0mils
Range
:
F: 0-25mm
N: 0-30mm
F: 0-980mils
N: 0-1,200mils
Resolution:
10μm: 0-2mm
100μm: 2-30mm
1mil: 0-100mils
10mils: 100-1,200mils
Certicate: ●
Scale 6 Probe Range F: 0-25mm / 0-980mils N: 0-30mm / 0-1,200mils
1 2
Probe Range for Separate Coating Thickness GaugeElcometer 456
Ferrous (F) Probes
#
Description Probe Length
c
Part Number
Minimum
Headroom
Minimum Sample
Diameter
b
2
Straight Probe
armoured cable 45mm (1.77”) T456CF7ARM 200mm (7.87”)
55 x 55mm
2
(2.17 x 2.17 inch
2
)
Scale 7 Probe Range 0-31mm / 0-1,220mils
Accuracy
a
: ±1-3% or ±100μm ±1-3% or ±4.0mils
Range
d
: 0-31mm 0-1220mils
Resolution:
10μm: 0-2mm
100μm: 2-31mm
1.0mil: 0-100mils
10mils:100-1220mils
Certicate: ●
See '#' on the probes table below for comparison.
