Dry Film Thickness - Foils & Standards

Calibration foils or ‘shims’ are the most convenient way of creating a coating

thickness standard on the substrate material, surface nish or form. This is the ideal

method for adjusting the calibration of the coating thickness gauge to ensure the

greatest possible accuracy.

Part Number Colour Dimensions Values

Certicate

T99022570-1A Silver 50 x 25mm (1.97 x 0.98”) 12.5µm (0.5mil) ○

T99022570-2A Purple 50 x 25mm (1.97 x 0.98”) 25µm (1.0mil) ○

T99022570-2B Purple 75 x 50mm (2.95 x 1.97”) 25µm (1.0mil) ○

T99022570-4A Dark Blue 50 x 25mm (1.97 x 0.98”) 50µm (2.0mils) ○

T99022570-4B Dark Blue 75 x 50mm (2.95 x 1.97”) 50µm (2.0mils) ○

T99022570-6A Green 50 x 25mm (1.97 x 0.98”) 75µm (3.0mils) ○

T99022570-7A Brown 50 x 25mm (1.97 x 0.98”) 125µm (5.0mils) ○

T99022570-7B Brown 75 x 50mm (2.95 x 1.97”) 125µm (5.0mils) ○

T99022570-9A Peacock Blue 50 x 25mm (1.97 x 0.98”) 175µm (7.0mils) ○

T99022570-10A White 50 x 25mm (1.97 x 0.98”) 250µm (10mils) ○

T99022570-10B White 75 x 50mm (2.95 x 1.97”) 250µm (10mils) ○

T99022570-12A Black 50 x 25mm (1.97 x 0.98”) 500µm (20mils) ○

T99022570-12B Black or Clear 75 x 50mm (2.95 x 1.97”) 500µm (20mils) ○

T99022570-14A Grey-Blue 50 x 25mm (1.97 x 0.98”) 1,000µm (40mils) ○

T99022570-14B Grey-Blue 75 x 50mm (2.95 x 1.97”) 1,000µm (40mils) ○

T99022570-16A Clear 50 x 25mm (1.97 x 0.98”) 1mm (40mils) ○

T99022570-17A O󰀨 White 50 x 25mm (1.97 x 0.98”) 1,500µm (60mils) ○

T99022570-18A Clear 50 x 25mm (1.97 x 0.98”) 2mm (80mils) ○

T99022570-18B Clear 75 x 50mm (2.95 x 1.97”) 2mm (80mils) ○

T99022570-20A Clear 50 x 25mm (1.97 x 0.98”) 3mm (120mils) ○

T99022570-21A Clear 50 x 25mm (1.97 x 0.98”) 4mm (160mils) ○

T99022570-23A Clear 50 x 25mm (1.97 x 0.98”) 8mm (310mils) ○

T99022570-24B Clear 75 x 50mm (2.95 x 1.97”) 9.5mm (370mils) ○

T99022570-25B Grey 75 x 50mm (2.95 x 1.97”) 15mm (590mils) ○

T99022570-26B Grey 75 x 50mm (2.95 x 1.97”) 25mm (980mils) ○

T45618978-2

Grey n/a 1,500µm (60mils) ○

T45618978-3

Grey n/a 5,000µm (197mils) ○

Actual foil values may vary, but are accurately labelled

A certificates can be supplied with any combination of up to 8 Foils (but not As and Bs together)

For use with the high temperature PINIP™ probes only due to the potential high temperature of the sample. Foils supplied in a cap which fits over the PINIP™ probe.

○ Optional Calibration Certificate available.

Individual Precision FoilsElcometer 990

Technical Specication

elcometer.com

Dry Film Thickness - Foils & Standards

Using Calibration Foils

Description Foil Values (μm) Foil Values (mils) Un-Certied Certied

Scale 1 Foil Set; 0-1500μm

(0-60mils)

25, 50, 125, 250, 500,

1,000

1.0, 2.0, 5.0, 10, 20, 40 T99022255-1 T99022255-1C

Scale 2 Foil Set; 0-5mm

(0-200mils)

25, 50, 125, 250, 500,

1,000, 2,000, 3,000

1.0, 2.0, 5.0, 10, 20, 40,

80, 120

T99022255-2 T99022255-2C

Scale 3 Foil Set; 0-13mm

(0-500mils)

250, 500, 1,000, 2,000,

4,000, 8,000

10, 20, 40, 80, 160, 315 T99022255-3 T99022255-3C

Scale 4 Foil Set; 0-250µm

(0-10mils)

12.5, 25, 50, 125, 250 0.5, 1.0, 2.0, 5.0, 10 T99022255-4 T99022255-4C

Scale 5 Foil Set; 0-800μm

(0-32mils)

12.5, 25, 50, 125, 250, 500 0.5, 1.0, 2.0, 5.0, 10, 20 T99022255-5 T99022255-5C

Scale 6 Foil Set; 0-30mm

(0-1200mils)

1,000, 2,000, 5,000, 9,500,

15mm, 25mm

40, 80, 200, 375, 590, 980 T99022255-6 T99022255-6C

Scale M3 Foil Set; 0-500μm

(0-20mils)

12.5, 25, 50, 125, 250, 500 0.5, 1.0, 2.0, 5.0, 10, 20 T99022255-7 T99022255-7C

Scale 2B Foil Set*; 0-5mm

(0-200mils)

25, 50, 125, 250, 500,

1,000, 2,000, 2,000

1.0, 2.0, 5.0, 10, 20, 40,

80, 80

T99022255-8 T99022255-8C

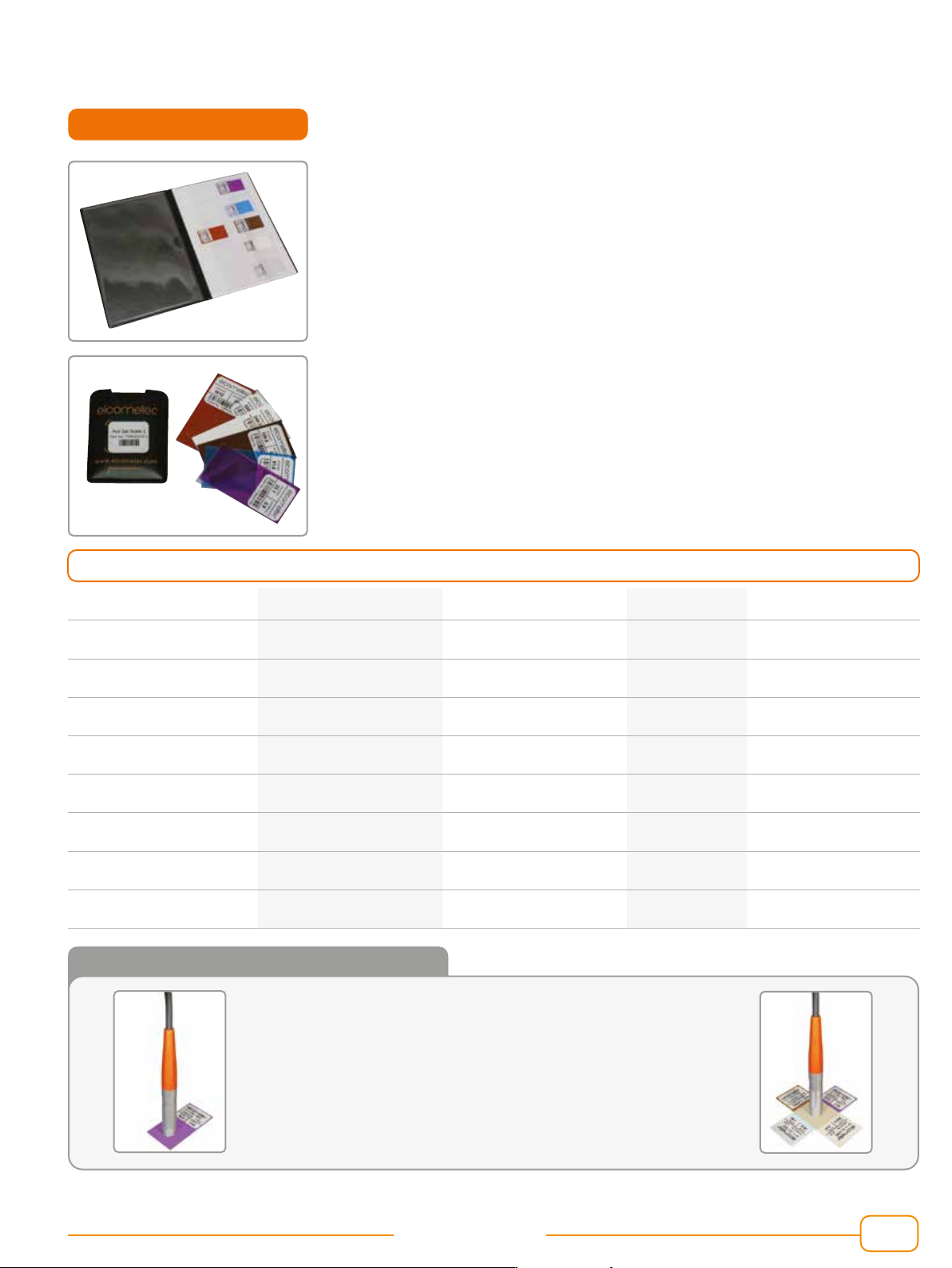

The Elcometer 990 Calibration Foils are ideal for use in the laboratory, on the

production line or on site. Calibration foils or ‘shims’ are the most convenient way

of creating a coating thickness standard on the substrate material, surface nish or

form. This is the ideal method for adjusting the calibration of the coating thickness

gauge to ensure the greatest possible accuracy.

Features:

• Metric and Imperial values displayed on each foil

• Available individually or in foil sets

• Precision foils with ±1% accuracy

• Each foil has a unique serial number for traceability

• Available in thicknesses from 12.5μm to 20mm (0.5 to 790mils)

* The Scale 2B foil sets are designed for soft coating probes and have a larger foil surface area.

Each foil has been independently measured at the

centre point.

For the greatest accuracy, place the probe in the

centre of the foil.

Up to 4 foils can be combined to create a wider range

of thickness values.

Calibration Foils SetsElcometer 990

Technical Specication

Dry Film Thickness - Foils & Standards

elcometer.com/videos

* To be used only with the Elcometer 311 or Elcometer 415

○ Optional Calibration Certicate available.

Elcometer provides a range of Zero Test Plates. When used in conjunction with a

set of foils, Test Plates are ideal to test a coating thickness gauge’s functionality.

For a list of standards, foils and foil sets, see page 7-46.

Description Size Size Ferrous Non-Ferrous Certicate

Precision Zero Test Plate (±1%) 50.8 x 25.4mm 2.0 x 1.0” T9994910- T9994911-

Zero Test Plate 76.2 x 50.8mm 3.0 x 2.0” T9999529- T9999530-

Zero Test Plate (large) 76.2 x 101.6mm 3.0 x 4.0” T9994054- T9994055- ○

Steel (F) Checkpiece* 50.8 x 88.9mm 2.0 x 3.5” T99916925 -

Aluminium (N) Checkpiece* 50.8 x 88.9mm 2.0 x 3.5” - T99916901

Zero Test PlatesElcometer 990

Technical Specication
