Elcometer 3045

Measure

DFT

Ferrous & Non-Ferrous Substrates

Elcometer 456 Separate Coating Thickness Gauge

Helping you become more efcient

70+ readings per minute and 140+ per minute with Scan Probe, multiple

calibration memories and alphanumeric batch identication.

Accurate measurements on smooth, rough, thin and

curved surfaces

Measures on smooth, rough, thin and curved surfaces to ±3% or 2.5µm, in

accordance with National & International Standards.

Large buttons and colour screen

LCD screen with auto rotate; factory calibrated with high and low reading limit

indicators in multiple languages.

Designed to last

Heavy duty, impact resistant and supplied with fully traceable test certicates

and our 2 year gauge warranty*.

Accurate

Easy

Reliable

Fast

Powerful

Store up to 150,000 readings in upto 2,500 batches

Measures up to 31mm (1,220mils) of coating on metal substrates with USB and

Bluetooth

data output making it compatible with ElcoMaster

software.

View up to 8 user selectable

statistics on screen

Rugged and reliable,

ideal for harsh environments

Halve the inspection time

using the scan probe

Large easy to read measurements in

Metric and Imperial units

Dry Film Thickness - Digital

* Scan and Auto Repeat Modes require an Elcometer 456 Model T gauge with Scan Probe.

Scan and Auto Repeat Modes

Using the Scan Probe in Scan Mode

Using the Elcometer 456 with the Scan Probe in scan mode enables users

to signicantly reduce dry lm thickness inspection times without a󰀨ecting

accuracy:

• Slide the Scan Probe over the entire surface area, as the probe is lifted o󰀨

the surface the gauge displays the average coating thickness value, the

highest thickness and the lowest thickness values.

• Each set of three readings (average, high and low) can be displayed on the

run graph and stored into the memory.

Using the Scan Probe in Auto Repeat Mode

When the Scan Probe is slid over the coated surface in Auto Repeat Mode*,

a coating thickness reading is taken approximately every half a second. Each

individual dry lm thickness reading is stored into the memory.

With a reading rate in excess of 140 readings per minute, the Auto Repeat

Mode can signicantly speed up the dry lm thickness inspection of large

coated areas.

Separate Coating Thickness GaugeElcometer 456

• During each scan the Elcometer 456 displays the live thickness reading together with an analogue bar

graph

which graphically indicates the thickness relative to both the nominal thickness and any user-dened limits.

elcometer.com

Dry Film Thickness - Digital

When tested on smooth surfaces probe end caps have been scanned in excess of 50km (30 miles)

Scan Probes

The Scan Probes further enhance the speed and accuracy of eld based dry

lm coating thickness measurement:

• Featuring a highly durable ‘snap on’ replaceable probe cap

• A revolutionary design which allows users to take individual readings or

rapidly scan large surface areas - without damaging the probe or coating

• Any cap wear during use

is incorporated within the calibration process -

the gauge even informs the user when to replace the cap.

• Standard Scan Probe or larger Roller Bearing Scan Probe available

• Roller Bearing Scan Probe is ideal for large coated structures, abrasive

coatings and pre-construction primers.

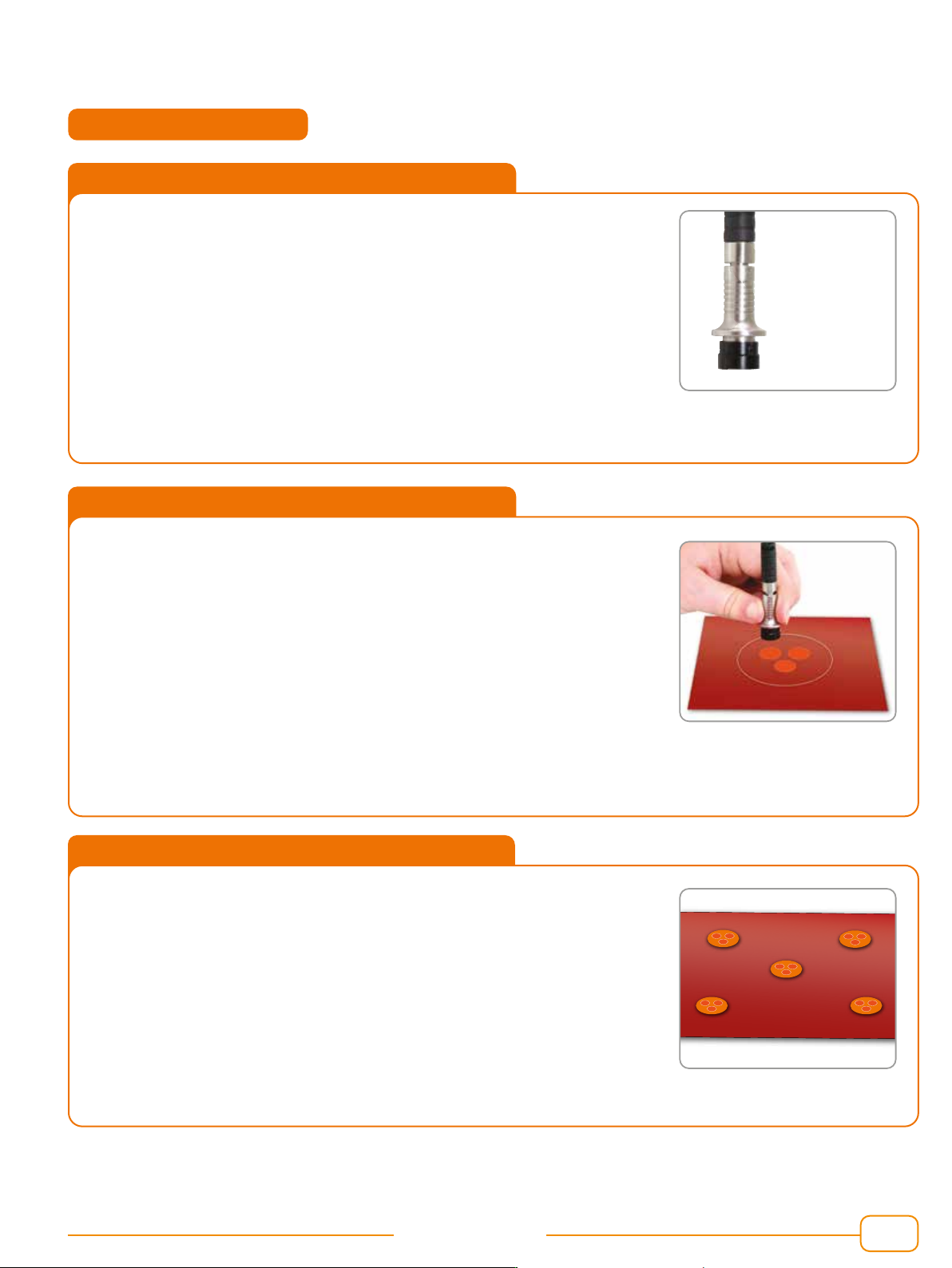

Counted Average and Fixed Batch Modes

Counted Average Mode

• The Elcometer 456 Model S and Model T are supplied with the Counted

Average Mode

• Once the user has dened the number of individual gauge readings to be

taken within a spot measurement, the gauge stores the average of the

individual gauge readings into the memory.

Working with Standards and Test Methods

• International Standards and test methods often describe the number of

individual gauge readings to be taken in a spot measurement and/or the

number of spot measurements required over a dened surface area.

• SSPC PA2 requires a minimum of three gauge readings to be taken per

spot measurement and ve spot measurements over 10m

(~100ft

• The Elcometer 456 Model S or Model T can be set with a counted average

of three and a xed batch size of ve to meet these requirements. Each

batch denes an area of measurement.

• When the Scan Probe is connected to the Elcometer 456 Model T with

Auto Repeat Mode selected, SSPC PA2 (or similar test methods) can be

completed more than 40% faster.

Fixed Batch Sizes

• The Fixed Batch Size feature within the Elcometer 456 Model T allows

users to dene the maximum number of readings in each batch.

• Once the maximum number of readings has been reached the gauge automatically opens up a new batch

which is linked to the previous batch (name-1, name-2, etc.).

Separate Coating Thickness GaugeElcometer 456
