elcometer.com 21 Probe Placement Jig Elcometer 456 & 355 Dry Film Thickness - Digital The Elcometer Probe Placement Jig is the ideal accessory for measuring coatings on small or complex components when the highest le…
20

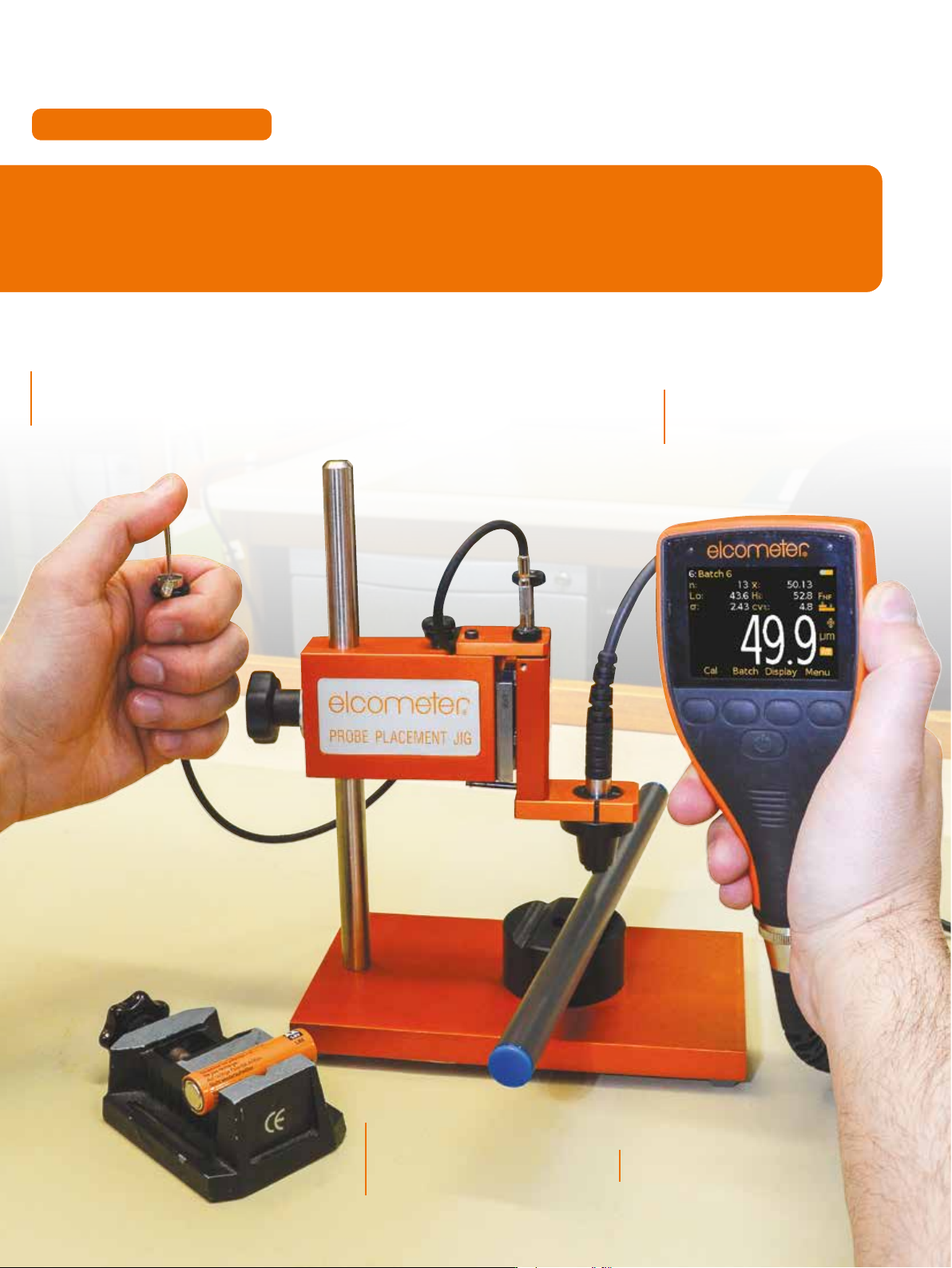

Probe Placement JigElcometer 456 & 355
All Elcometer 456 probes are fully interchangeable and are
available in a number of designs and scale ranges to meet your
specic application, including;
The Elcometer Probe Placement Jig is the ideal accessory for
measuring coatings on small or complex components when the
highest levels of repeatability and accuracy are required.
Housings to suit other
probes are available as
optional accessories
Compatible with
Elcometer 456 probes
and Elcometer 355
probes
Increases the gauge's
repeatability and
reproducibility
Ideal for small and large
components alike
Dry Film Thickness - Digital
elcometer.com
21

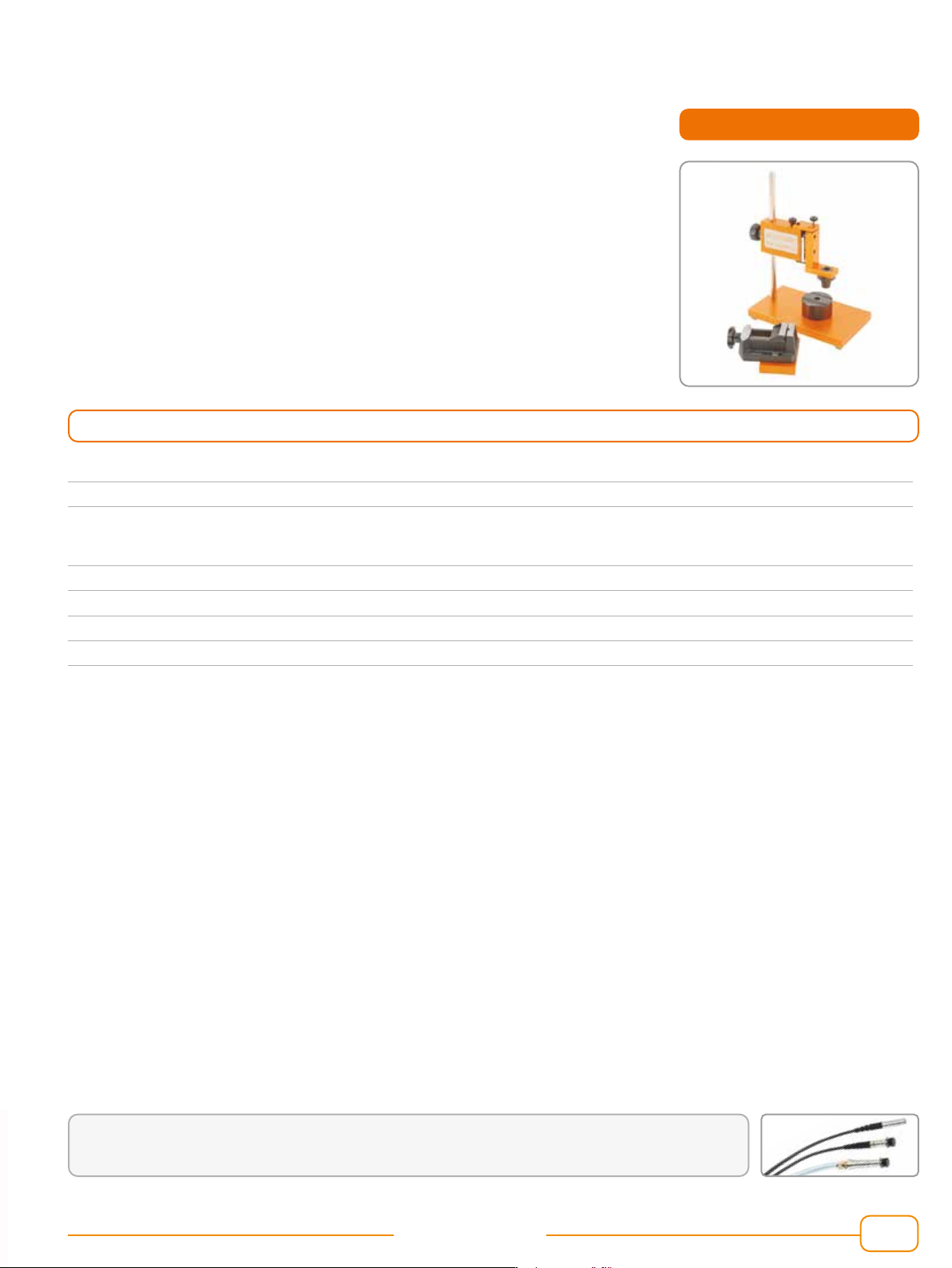

Probe Placement Jig Elcometer 456 & 355
Dry Film Thickness - Digital
The Elcometer Probe Placement Jig is the ideal accessory for measuring coatings
on small or complex components when the highest levels of repeatability and
accuracy are required.
The Probe Placement Jig makes the gauge score highly in repeatability and
reproducibility studies by placing the probe accurately, at the same angle and in the
same place on the substrate each time.
Ideal for small and large components alike, the Probe Placement Jig is supplied
with a probe housing and a component holder to suit straight Scale 1 or Scale 2
Elcometer 456 probes and standard F1, F2, F4, F5 and N1 Elcometer 355 probes.
Housings to suit other probes are available as optional accessories.
Part Number Description
T95012880 Probe Placement Jig
Each Probe Placement jig is supplied with a probe housing and a component holder to suit straight Scale 1 or Scale 2 Elcometer 456
probes and standard F1, F2, F4, F5 and N1 Elcometer 355 probes.
T95013028 Component Hand Vice
T95012888 Cable Release Assembly - ideal for remote measurements
T95015961 Dual FNF Probe Housing Adaptor
T95016896 Mini Probe Housing Adaptor
Technical Specication
For a wide range of probes to meet your specic application,
see page 8
22
Dry Film Thickness - Digital

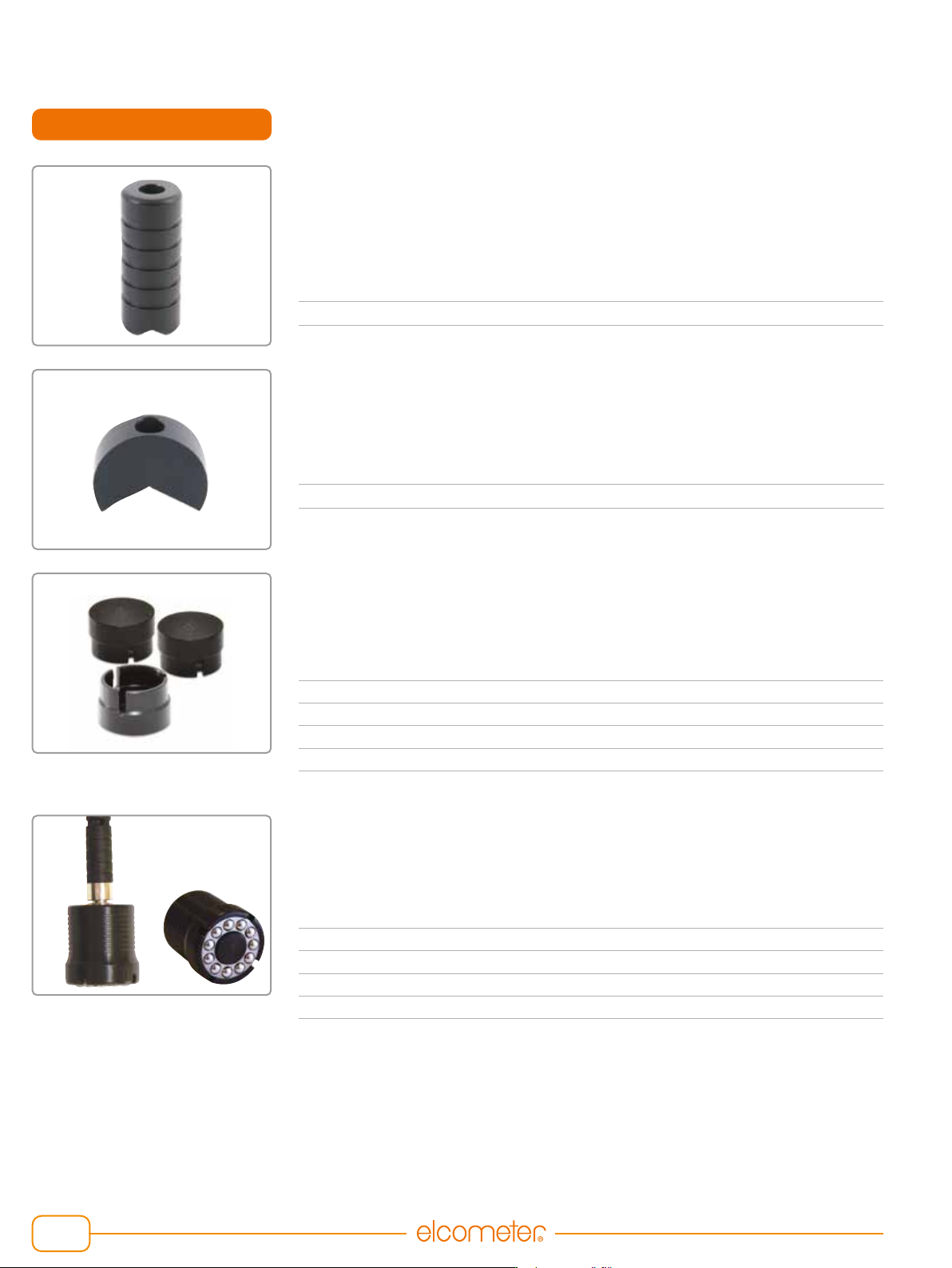

AccessoriesElcometer 456
V-Probe Adaptor
Ideal for precision placement for the most accurate results on medium and
large diameter curved surfaces such as pipes and cylinders. Suitable for any
Elcometer 456 Scale 1 or Scale 2 straight probes.
Jumbo Hand Grip
Ideal for precision placement for the most accurate results on at and curved
surfaces. Place the probe inside the Jumbo Hand Grip and take measurements
- ideal when wearing gloves. Suitable for any Elcometer 456 Scale 1 or
Scale 2 straight probes.
F and N Probes Dual FNF Probes
T9997766- T99913225 Jumbo Hand Grip
Dual FNF Probes
T99913133 V-Probe Adaptor
Scan Probe Replacement End Caps
Highly durable - when tested on smooth surfaces, probe end caps have been
scanned in excess of 50km (30 miles) - each end cap snaps on to the end of the
Scan probe signicantly enhancing the lifetime of the probe.
Roller Scan Probe Cap
Clip on adaptor designed for large coated structures, abrasive coatings and
pre-construction primers. The Roller Scan Cap can scan in excess of 50km
(30 miles) on rough surfaces without damaging the substrate or probe.
F & Dual FNF Probes
Scale 1 Scale 2
Accuracy: ±6% ±5%
Measuring Range: 100-1000μm (3.9-39mils) 0.5-4.5mm (20-180mils)
Part Number
T456C29050
Description
Elcometer 456 Roller Scan Probe Cap
1
F & Dual FNF Probes
Scale 1 Scale 2
Accuracy: ±3% or ±2.5μm (±1mil) ±1-3% or ±0.02mm (±1mil)
Measuring Range: 100-1000μm (3.9-39mils) 0.1-4.5mm (4-180mils)
Part Number
T456C23956
Description
Replacement Scan Probe End Caps (3 per pack)
