Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
4.2 SIPLACE X-series and SIPLACE D3 hardware components
The following diagram shows the hardware components of the computer system for the X-series machine
types and for the SIPLACE D3 machine type of the D series:

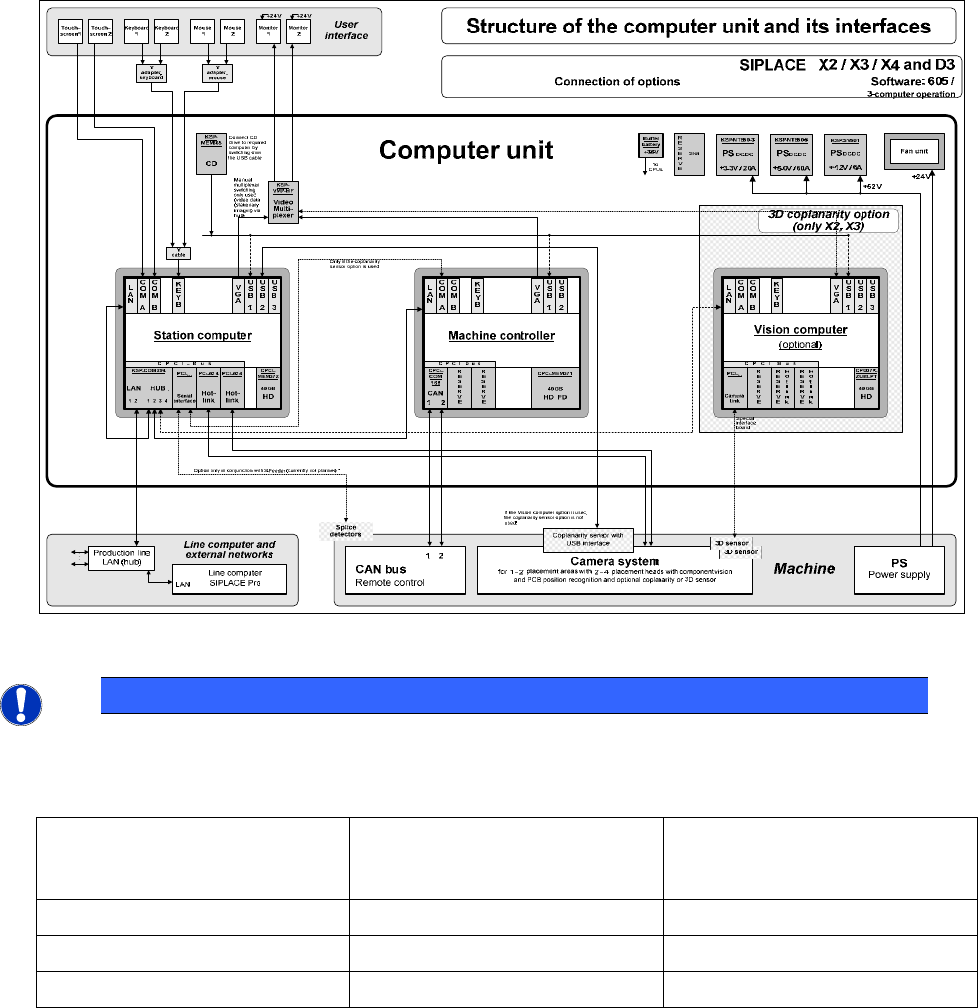

Fig. 4-1: Hardware components of the computer system for the SIPLACE X-series and the SIPLACE D3 (schematic block diagram)
NOTICE
The hardware configuration of the station computer and the optional Vision computer can
only be combined with a particular hardware configuration for the machine controller. See
the following table for details.
Station computer
Machine controller Vision computer
(wit 3D coplanarity sensor
option)
SMP16-CPU086
SMP16-CPU076
SMP16-CPU086
SMP16-CPU086
SIMATIC Box PC 627
SIMATIC Box PC 627 SIMATIC Box PC 627
Table 4-1: Possible combinations of station computer and Vision computer with the machine controller
13 of 48
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
14 of 48
4.2.1 Station computer
Name
SMP16-CPU086
CPU / clock frequency
P M / 1.6 GHz
RAM
768 MB
Hard disk
40 GB
External DVD drive
No
Serial interfaces
2
USB interfaces and external USB hub
Yes
Network
1 x 10/100Base-T
2 x 10Base-T
6-port hub
Table 4-2: Station computer hardware (previous configuration of SIPLACE X-series and SIPLACE D3)
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M / 2 GHz
RAM
1 GB
Hard disk
40 GB
External DVD drive
Yes
Serial interfaces
1
USB interfaces
and external USB hub
Yes
Network
2x 100 MBit
Table 4-3: Station computer hardware (current configuration of SIPLACE X-series and SIPLACE D3)
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
15 of 48
4.2.2 Machine controller
Name
SMP16-CPU076
CPU / clock frequency
Celeron / 650 MHz
RAM
256 MB
Hard disk
40 GB
External DVD drive
No
Floppy drive
3.5", 1.44 MB
USB interfaces
and external USB hub
Yes
Network
1 x 10/100Base-T
Table 4-4: Machine controller hardware (previous configuration of SIPLACE X-series)
Name
SMP16-CPU086
CPU / clock frequency
Intel M / 1600 MHz
RAM
256 MB
Hard disk
40 GB
External DVD drive
No
USB interfaces
and external USB hub
Yes
Network
1 x 10/100Base-T
Table 4-5: Machine controller hardware (previous configuration of SIPLACE X-series and SIPLACE D3)
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M / 2 GHz
RAM
1 GB
Hard disk
40 GB
External DVD drive
Yes
Serial interfaces
1
USB interfaces
and external USB hub
Yes
Network
2x 100 MBit
Table 4-6: Machine controller hardware (current configuration of SIPLACE X-series and SIPLACE D3)
