5.4.6 Selecting the hardware configuration

The Hardwareconfiguration dialog box is opened, in which you can configure the hardware for one-

computer or two-computer operation. Two-computer operation has always to be selected for X- and CA-

series placement machines. For D-series placement machines the selection should match the actual

hardware configuration.

Fig. 5-20: Selecting the hardware configuration

→ Click on the One-computer-configuration button for one-computer operation

→ Click on the

Two-computer-configuration for two-computer operation.

→ Click on the Next button.

35 of 48

Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition

5.4.7 Entering the Machine Identification Number (MID)

Fig. 5-21: Entering the Machine Identification Number (MID)

→ In the text box, enter the 8-digit machine identification number.

NOTICE

You will find the MID on an adhesive label on the side of the protective covers directly below

the label for the number of the relevant location. Only the first eight digits with leading zeros

must be entered. The number following the dash after the MID specifies the location

(e.g. 00000001-2 stands for location 2).

→ Click the Next button.

NOTICE

The following screen only appears if applications are open which use files which must be

updated during installation of SIPLACE.

Fig. 5-22: Open applications

36 of 48

Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition

→ Close the applications listed here and then click the Retry button.

The installation program now installs the additional programs on the station computer.

5.4.8 Finalizing the installation

NOTICE

The status only lists the programs that have just been installed. If, for instance, the current

version of SIPLACE Vision was already installed, it is not listed here.

If errors occurred during installation, the status is indicated by the Error button being

displayed next to the program name instead of the Ok button.

→ If you wish to read the log of the installation of any program, click the Ok (or Error) button next to the

name of the program. Notepad is started and displays the appropriate file.

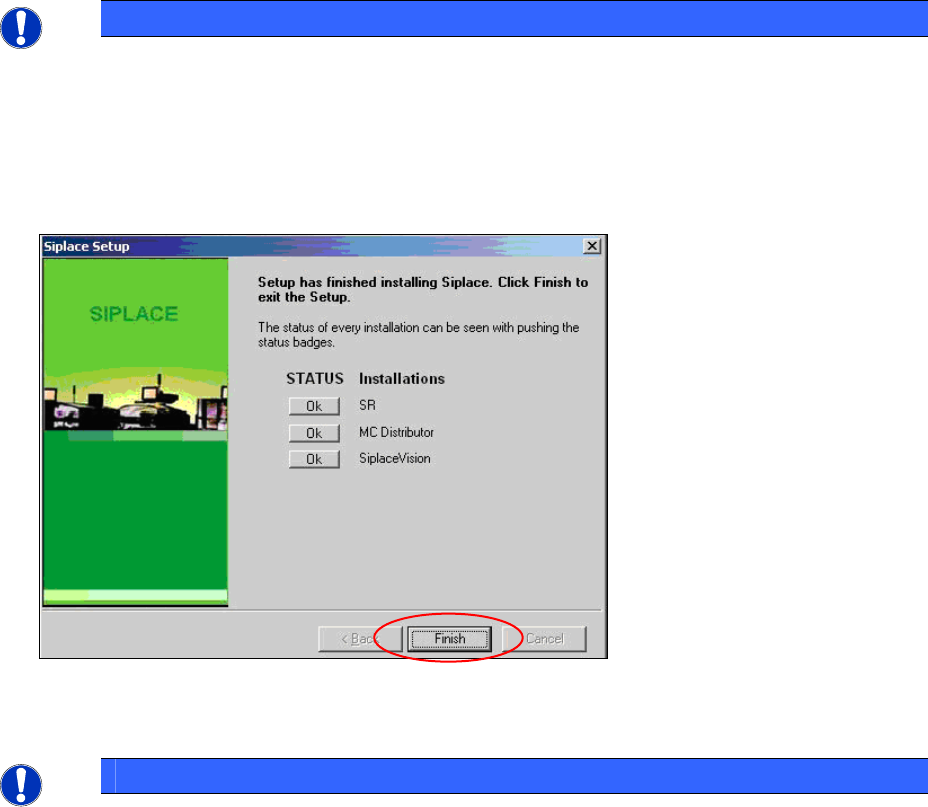

Fig. 5-23: Finalizing the installation

→ Click the Finish button.

NOTICE

To establish the connection between the station computer and the machine controller after

installation has been completed, the station computer, machine controller and Vision

computer (if present) must first be run down and the machine must then be switched off

completely.

→ To do this, open the Start menu and select Programs Æ SIPLACE Æ Shutdown_Vision_MC_SR

(all).
