Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
6 Uninstalling the SIPLACE software
NOTICE
You must be logged in as administrator to uninstall the software.
→ Open the Start menu and choose Programs Æ SIPLACE Æ SIPLACE Uninstall.
Fig.6-1: Starting uninstallation (alternative 1)
Or:
→ Open the Start menu and choose Settings Æ Control Panel.
→ Double-click Add/Remove Programs.
Fig.6-2 Starting uninstallation (alternative 2)
→ Select SIPLACE from the list of installed programs.
→ Click the Change/Remove button.
40 of 48
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
The installation program now uninstalls the SIPLACE software including the SIPLACE hot fixes, SIPLACE
Language Pack and SIPLACE Vision.
Fig.6-3: Finalizing uninstallation
→ Click the Finish button.
The SIPLACE software and SIPLACE Vision have now been uninstalled correctly.
41 of 48
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
7 Installing the Vision computer software (option)
NOTICE
The Vision computer is only required if the optional 3D coplanarity sensor is used.
In one-computer operation the Vision computer software is automatically installed during the
station software installation.
In two-computer operation the Vision computer software has to be installed explicitly.
The installation requires approx. 20 minutes.
→ Connect the USB keyboard to the Vision computer.
→ Switch the video multiplexer from the station computer to the Vision computer.
→ Switch on the SIPLACE placement machine.
→ Log in to the Vision computer as Administrator.
(Keep the Shift key pressed as soon as the Windows XP logo appears)
→ Insert the installation CD in the drive.
→ Open the Explorer and start "setup.exe" under drive E by double clicking it.
The "SIPLACE Choice Center" dialog box is opened.

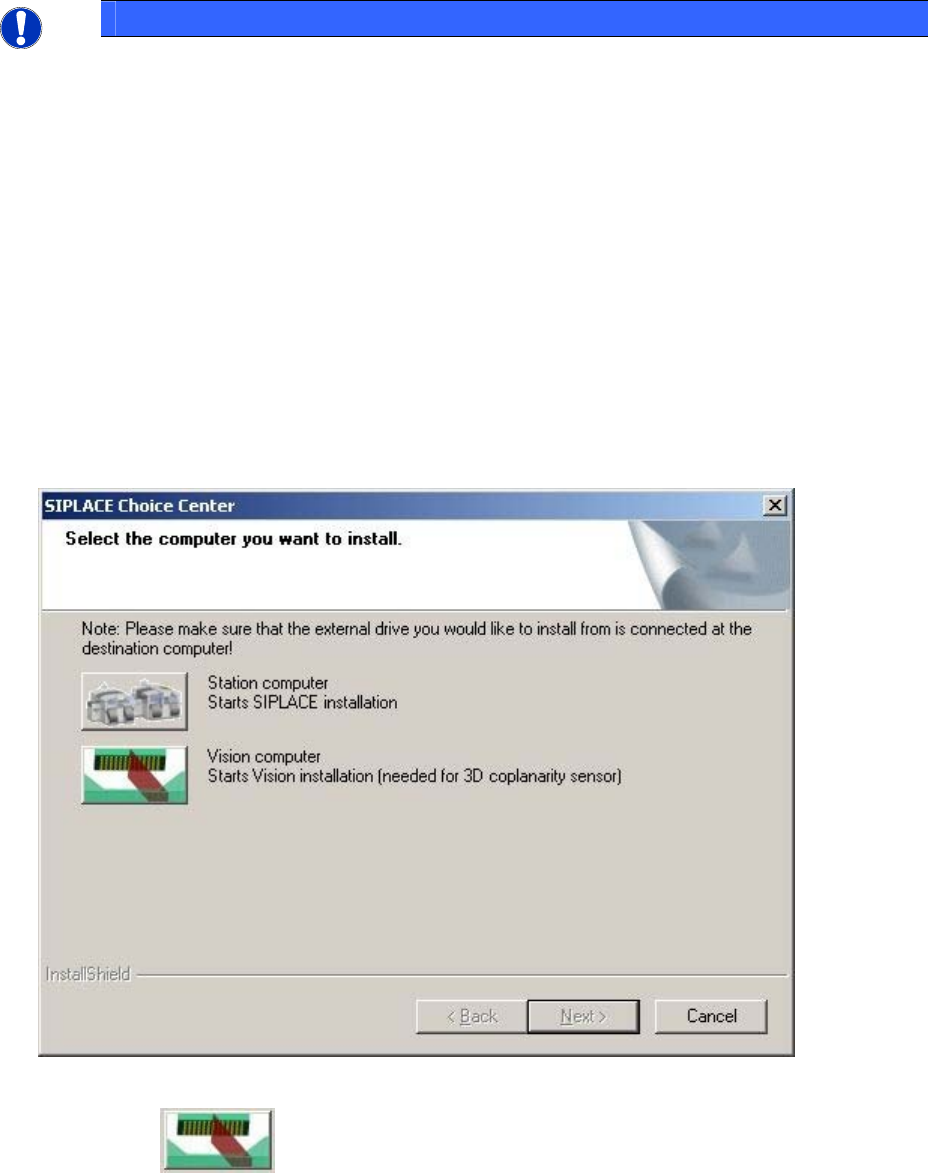

Fig.7-1: "SIPLACE Choice Center" dialog box
→ Click the "Vision computer" button.
42 of 48
