4.5 Network configuration

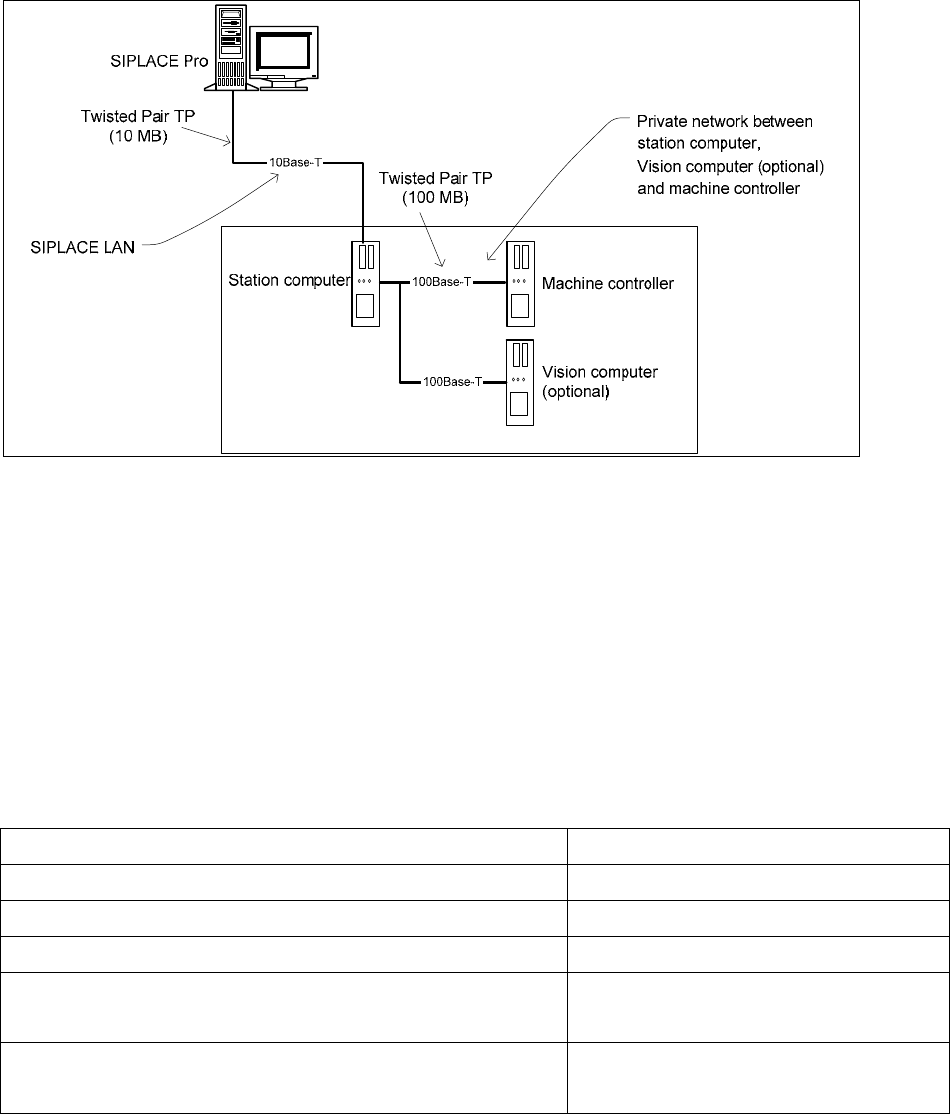

Fig. 4-5: Network connections between the machine and SIPLACE Pro

A separate private network (100 Mbit) is set up between the station computer (and optionally the Vision

computer) and the machine controller via a subnet mask.

Fixed IP addresses for the station computer, Vision computer and machine controller can thus be assigned

for all SIPLACE machines. These IP addresses are not known outside the private network, for instance in

the SIPLACE LAN or customer LAN.

These IP addresses need not be further configured by the operator while the station software is being

installed.

IP address, station computer

192.168.255.249

IP address, machine controller

192.168.255.250

Vision computer IP Address

192.168.255.251

Subnet mask, station computer/machine controller

255.255.255.248

IP address range, SIPLACE LAN or

IP address range, customer LAN

172.22.xxx.xxx

is configured on-site

Subnet mask for SIPLACE-LAN or

subnet mask for customer LAN

255.255.0.0

is configured on-site

Table 4-13: Network configuration

21 of 48

Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition

5 Installing the station software

NOTICE

The operation system must be installed on the machine controller and Vision computer

before installing the station software.

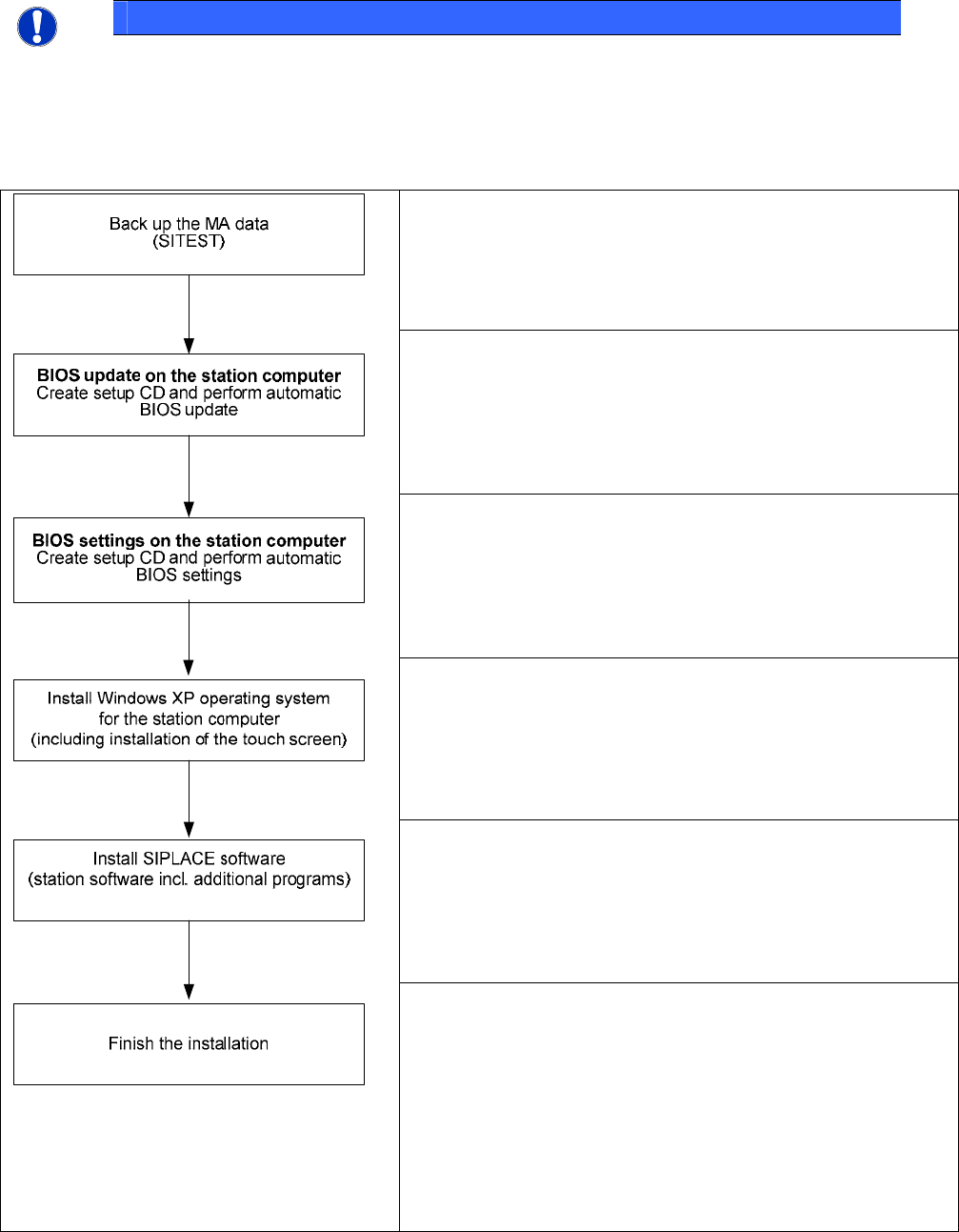

5.1 Installation sequence

See section 5.2.

See the separate installation manual for installing the "Windows

XP operating system" (item no. 00194575-xx)

For calibrating the touch screen, see sections 5.3.3.

See sections 5.3 and 5.4.

See section 5.5.

22 of 48

Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition

23 of 48

5.2 Performing automatic BIOS update/settings on the machine computer

and Vision computer

The image files for the automatic BIOS update/BIOS settings and the corresponding installation instruction

(readme file) are available on the V1.0 BIOS CD that can be ordered via the service technician or

downloaded from the SIPLACE Download Center.
