Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition Fig. 5-17: Language selection → Click the OK button. 5.4.2 Installing the system files The necessary system files are inst alled if they are not al…
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
5.4 Installing the SIPLACE software (Station Software 605.03 SP1)
NOTICE
The installation requires approx. 30 minutes.
If a predecessor version of the station software is already installed on the station computer,
it need not be uninstalled before installing the new version; it can instead be removed during
the installation procedure (see section 5.4.3).
For uninstalling the SIPLACE software manually see section 5.5.
→ Switch on the SIPLACE placement machine.
→ Log in to the station computer as Administrator.
(Keep the Shift key pressed as soon as the Windows XP logo appears)
→ Insert the installation CD in the drive.
→ Open the Explorer and start "setup.exe" under drive E by double clicking it.
The "SIPLACE Choice Center" dialog box is opened.
Fig. 5-16: "SIPLACE Choice Center" dialog box
→ Click the "Station computer" button.
A check is carried out to determine whether a predecessor version of the station software is installed. If this
is the case, the routine for uninstalling the predecessor version is called before actual installation starts
(see "Removing the program" in section 8).
Installation of the station software continues with the selection of the language.
5.4.1 Language selection
→ Select the language to be used during installation.
You can choose between German (Germany) and English (United States).
32 of 48
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
Fig. 5-17: Language selection
→ Click the OK button.
5.4.2 Installing the system files
The necessary system files are installed if they are not already on the station computer. The station
computer is rebooted automatically after installation. You are automatically logged in as administrator.
5.4.3 Uninstalling Language Pack of a previous version (if installed)
If a Language Pack of a previous version is still installed on the computer, uninstallation is started
automatically.
If uninstallation of the Language Pack is cancelled, the following error message appears:
→ Click the OK button. Installation of the station software is cancelled and must be restarted.
Installation of the station software continues with the welcome screen.
33 of 48
Installation Manual, Station Software Version 605.03 SP1 07/2011 Edition
5.4.4 Welcome screen

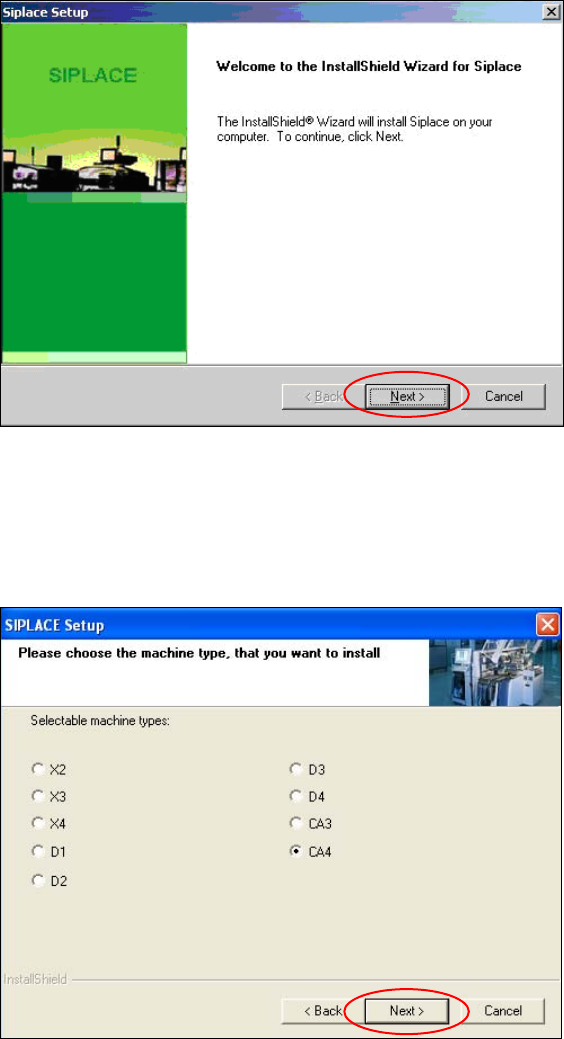

Fig. 5-18: Welcome screen
→ Click the Next button.
5.4.5 Selecting the machine type
Fig. 5-19: Selecting the machine type
→ Select the option for the machine type for which the software is to be configured.
→ Click the Next button.
34 of 48
