Ref No. Remarks R 1 Q'ty 1-B 本体部:SPG Main Body :SPG ｲﾗｽﾄ No. Part No. 品 名 品 番 数量 R 2 パーツリスト Kit No. キット品番 Kit Name キット名称 N610140062AA Part Nam e 備 考 セク ション No . PARTS LIST Section No. R 3 BRACKET 2 1 N210173330AC BR…

100%1 / 520

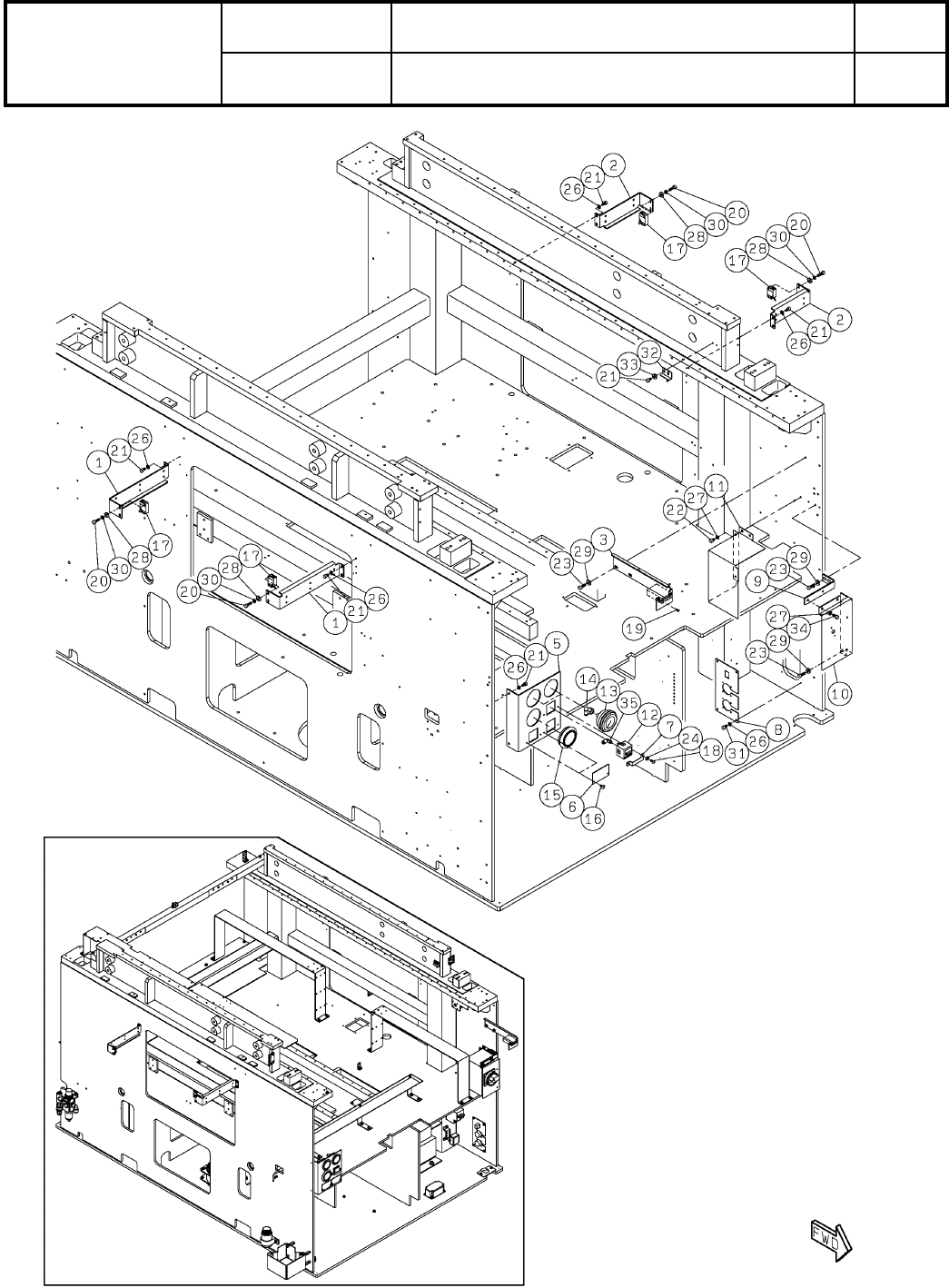

1-B
本体部:SPG
Main Body:SPG
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610140062AA
セクションNo.
PARTS LAYOUT
Section No.
--
S3
( KN610140062AA-24-2 )
Ref
No.
Remarks R
1
Q'ty
1-B
本体部:SPG
Main Body:SPG
ｲﾗｽﾄ
No.
Part No.
品　　名品　　番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610140062AA
Part Name
備　　　考
セクションNo.
PARTS LIST
Section No.
R
3
BRACKET
2
1 N210173330AC
BRACKET
2
2 N210174321AC
BRACKET
1
3 MTPB007594AA
BRACKET
1
5 N210173334AA
COVER
2
6 N210143942AA
COVER
1
7 N210143758AB
BRACKET
1
8 N210173346AB
BRACKET
1
9 N210174303AA
BRACKET
1
10 MTPB016962AA
COVER
1
11 N210173349AB
SENSOR
1
12 MTNS000063AA DP-102-13
GAUGE
2
13 KXF0DY1DA00 G46-4-01-C
JOINT
2
14 N510066661AA KQ2LF04-01A
GROMMET
1
15 KXF0DY1HA00 C-30-SG-48A
SCREW
4
16 N510018253AA
Cross recessed Truss head machine screw M3X6-4.8 A2J (Trivalent)
SENSOR(900mm)
2
17 MTKA011982AA
BOLT
2
18 N510022475AA SRBS-M3X6
BOLT
2
19 N510017333AA
Hexagon socket head cap screw M3X5-10.9 A2J (Trivalent)
BOLT
8
20 N510017308AA
Hexagon socket head cap screw M3X12-10.9 A2J (Trivalent)
BOLT
12
21 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
4
22 N510017419AA
Hexagon socket head cap screw M5X8-10.9 A2J (Trivalent)
BOLT
5
23 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
WASHER
2
24 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
14
26 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
6
27 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
8
28 N510020098AA Thick washer M3
WASHER
5
29 N510020100AA Thick washer M5
WASHER
8
30 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
BOLT
4
31 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
DOG
1
32 N210183022AA
WASHER
2
33 N510020099AA Thick washer M4
BOLT
2
34 N510017386AA
Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent)
JOINT
1
35 N510066684AA KQ2L04-M5N

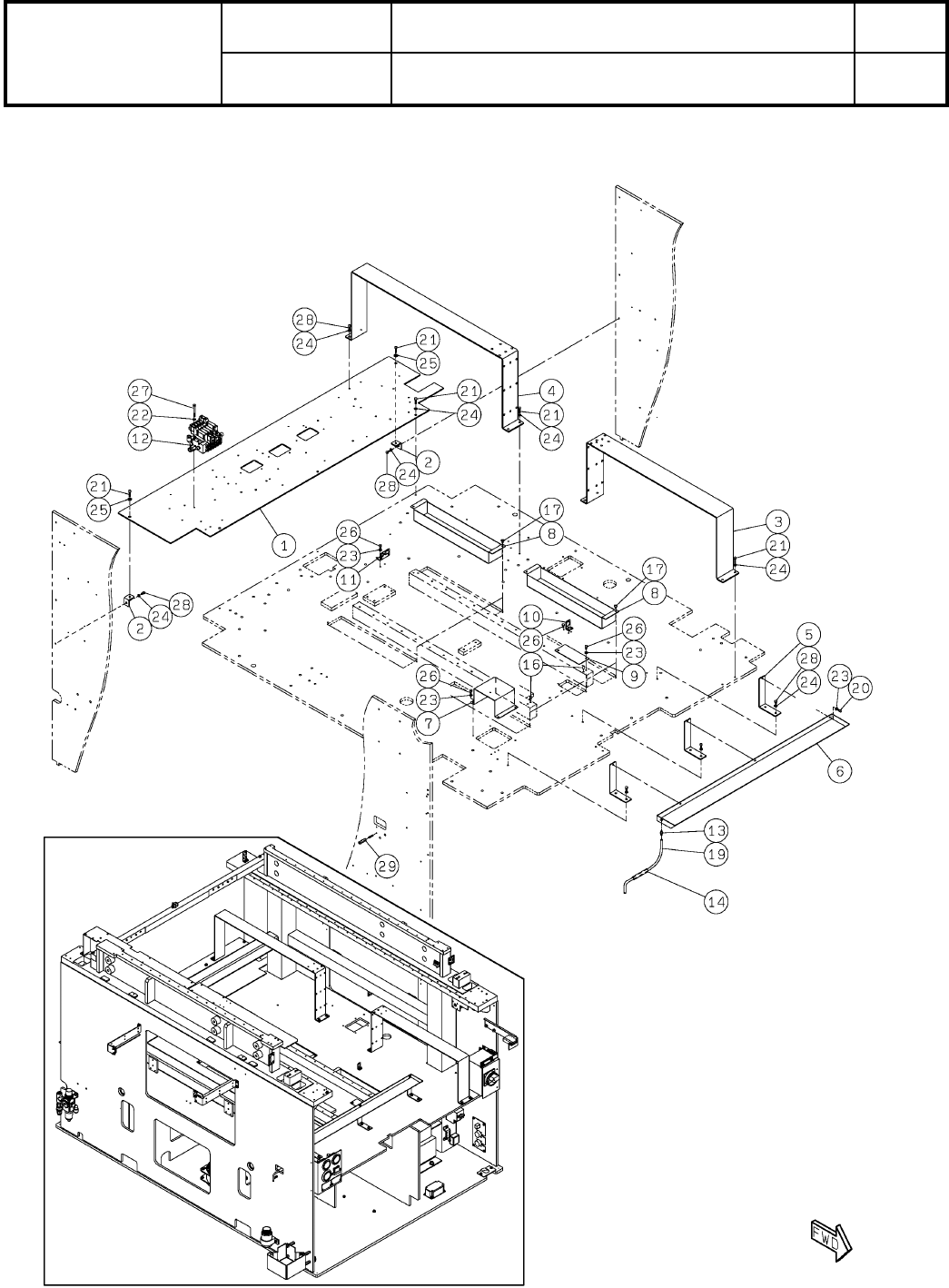

S4
--
( KN610140062AA-24-2 )
1-C
本体部:SPG
Main Body:SPG
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610140062AA
セクションNo.
PARTS LAYOUT
Section No.
--
S5
( KN610140062AA-24-3 )
