24 高さ検出レーザーユニット:SPG Height Detection Laser Unit:SPG パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610140162AA セクションNo. PARTS LAYOUT Section No. - - O59 ( KN610140162AA-04 )
Ref
No.
Remarks R
1
Q'ty
23
はんだ残量検出ユニット:SPG
Remaining Solder Detection Unit:SPG
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610140157AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210186893AA
BRACKET
1
2 N210186894AA
BRACKET
1
3 N210186895AA
BRACKET
1
4 N210186897AA
BRACKET
1
5 N210186898AA
BRACKET
1
6 KXFB02ALA00
PLATE
2
7 N210168120AB
COVER
2
8 MTPB007609AA
GUIDE
2
10 N210176336AB
GUIDE
2
11 N210176335AB
BRACKET
2
12 N210186896AA
BRACKET
1
13 N210186899AB
SENSOR
2
14 N510056317AA FU-E11
BRACKET
1
15 N510019178AA OP-73880
SCREW
4
16 N510018021AA
Cross recessed Pan head machine screw M2X10-4.8 A2J (Trivalent)
BOLT
2
17 N510017725AA
Hexagon head bolt Best class M4X12-6g 4T A2J (Trivalent)
PIN
4
20 N510020589AA MMS3-8
NUT
8
21 N510017859AA
Hexagon nut Type-3 Best class M4-6H-4T A2J (Trivalent)
BOLT
2
22 N510017308AA
Hexagon socket head cap screw M3X12-10.9 A2J (Trivalent)
BOLT
2
23 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J (Trivalent)
BOLT
4
24 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
WASHER
2
25 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
2
26 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
16
27 N510020099AA Thick washer M4
WASHER
2
28 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
BOLT
8
29 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
4
30 N510017354AA
Hexagon socket head cap screw M4X20-10.9 A2J (Trivalent)
AMPLIFIER
1
31 N610157476AA
O58
--
( KN610140157AA-06 )

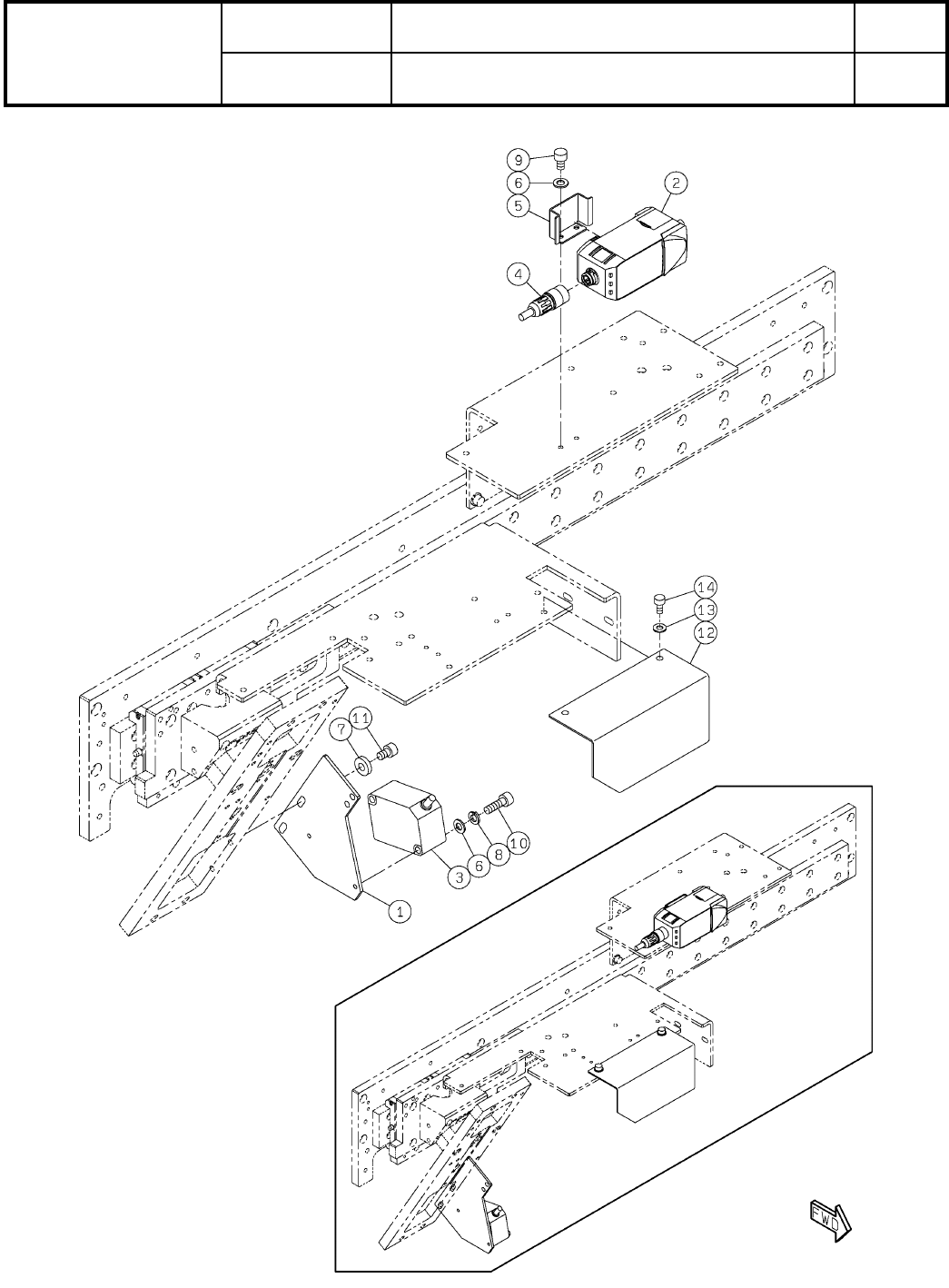

24
高さ検出レーザーユニット:SPG
Height Detection Laser Unit:SPG
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610140162AA
セクションNo.
PARTS LAYOUT
Section No.
--
O59
( KN610140162AA-04 )
Ref
No.
Remarks R
1
Q'ty
24
高さ検出レーザーユニット:SPG
Height Detection Laser Unit:SPG
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610140162AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BRACKET
1
1 N210175564AA
AMP
1
2 N610149641AB
A
SENSOR
1
3 N510064571AA
A S
ZX2-LD50V
CABLE
1
4 N510064573AA ZX2-XC1R
BRACKET
1
5 MTPB000296AA
WASHER
4
6 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
2
7 N510020099AA Thick washer M4
WASHER
2
8 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
BOLT
2
9 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
BOLT
2
10 N510017323AA
Hexagon socket head cap screw M3X30-10.9 A2J (Trivalent)
BOLT
2
11 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
COVER
1
12 N210186918AA
WASHER
2
13 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
BOLT
2
14 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
O60
--
( KN610140162AA-04 )
