3-A
駆動ユニット(Y):SPG
Drive Unit(Y):SPG

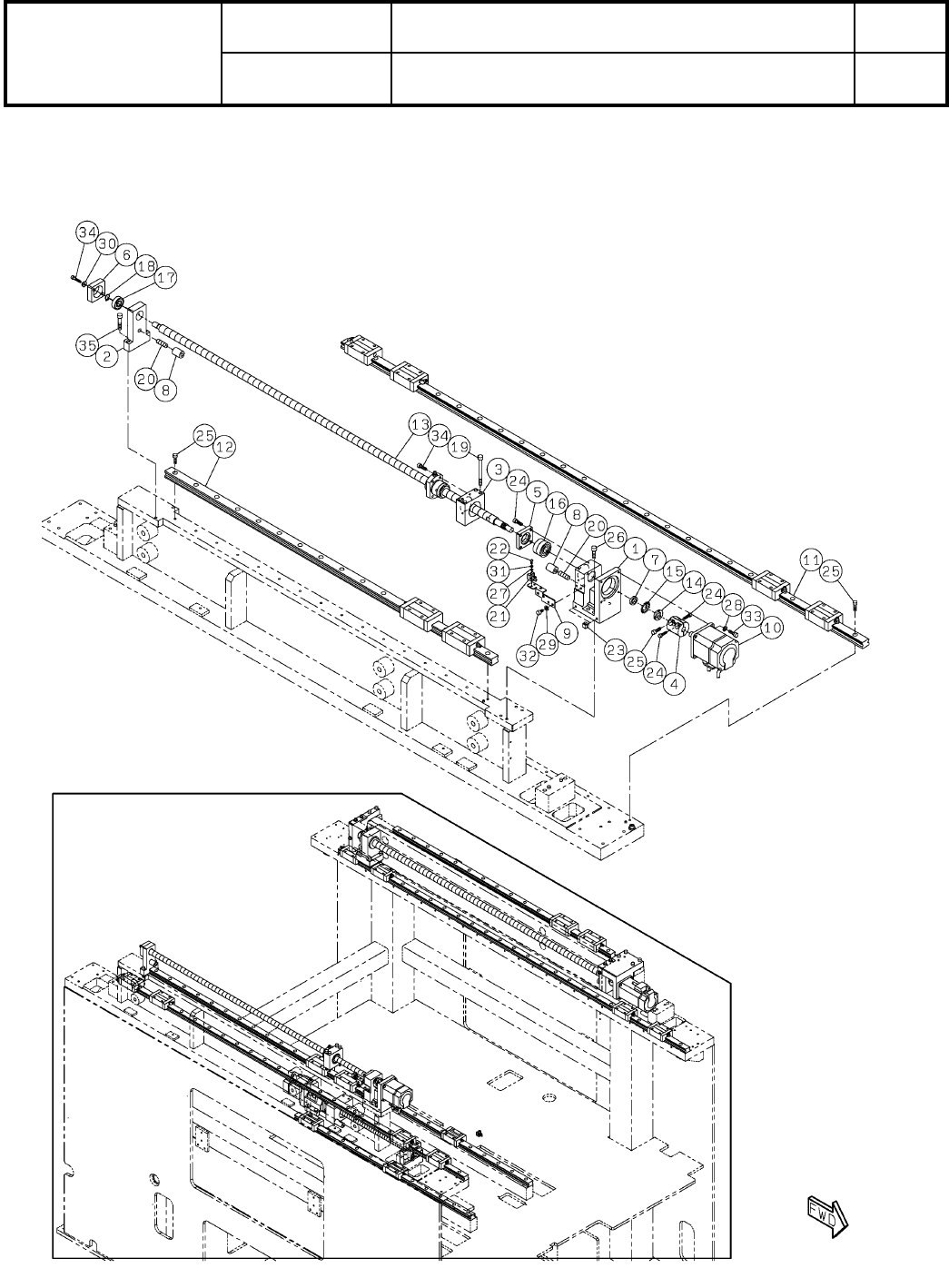

パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610140063AA
セクションNo.
PARTS LAYOUT
Section No.
--
S19
( KN610140063AA-07-1 )
Ref
No.
Remarks R
1
Q'ty
3-A
駆動ユニット(Y):SPG
Drive Unit(Y):SPG
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610140063AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BRACKET
1
1 N610147037AA
BRACKET
1
2 N210143701AA
HOLDER
1
3 N210181202AA
COUPLING
1
4 KXFB02W7A00
PLATE
1
5 N210025238AA
PLATE
1
6 KXFB06SZA00
COLLAR
1
7 N210160507AA
STOPPER
2
8 N210172828AA
BRACKET
1
9 MTPB008253AA
MOTOR
1
10 MSMD022G1A2
S
MSMD022G1A2
LINEAR-WAY
1
11 N510063932AA SSR20XW4UUC1E+1500L-II(02816819G000)
LINEAR-WAY
1
12 N510063933AA SHS20V2UUE+940L-II(02811402G000)
BALL-SCREW
1
13 N510065496AA BLK1616-3.6ZZ+1030LT(32811403K010)
BEARING-NUT
1
14 KXF0E3M2A00 AN01
WASHER
1
15 KXF0E3LDA00 AW01
BEARING
1
16 KXF0A1QAA00 7201T2DF/GNP5
BEARING
1
17 KXF0E3BVA00 6000ZZ
C-RING
1
18 KXF04CRAA00 STW-10
BOLT
4
19 N510017452AA
Hexagon socket head cap screw M6X65-10.9 A2J (Trivalent)
SCREW
2
20 N510057108AA
Hexagon socket set screw Cup point M8X25-45H A2J (Trivalent)
SENSOR
1
21 MTNS000238AA EE-SX951-C2J-R 0.3M
BOLT
2
22 N510017514AA
SSS 003 Hexagon socket button head screw M3X8-10.9 A2J (Trivalent)
CABLE-SUPPORT
2
23 N510048517AA FT4
BOLT
8
24 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
43
25 N510017395AA
Hexagon socket head cap screw M5X16-10.9 A2J (Trivalent)
BOLT
4
26 N510017435AA
Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent)
WASHER
2
27 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
4
28 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
2
29 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
2
30 N510020099AA Thick washer M4
WASHER
2
31 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
BOLT
2
32 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
4
33 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
6
34 N510017354AA
Hexagon socket head cap screw M4X20-10.9 A2J (Trivalent)
BOLT
2
35 N510017438AA
Hexagon socket head cap screw M6X30-10.9 A2J (Trivalent)
