Page
HANWHA TECHWIN
108
SM411

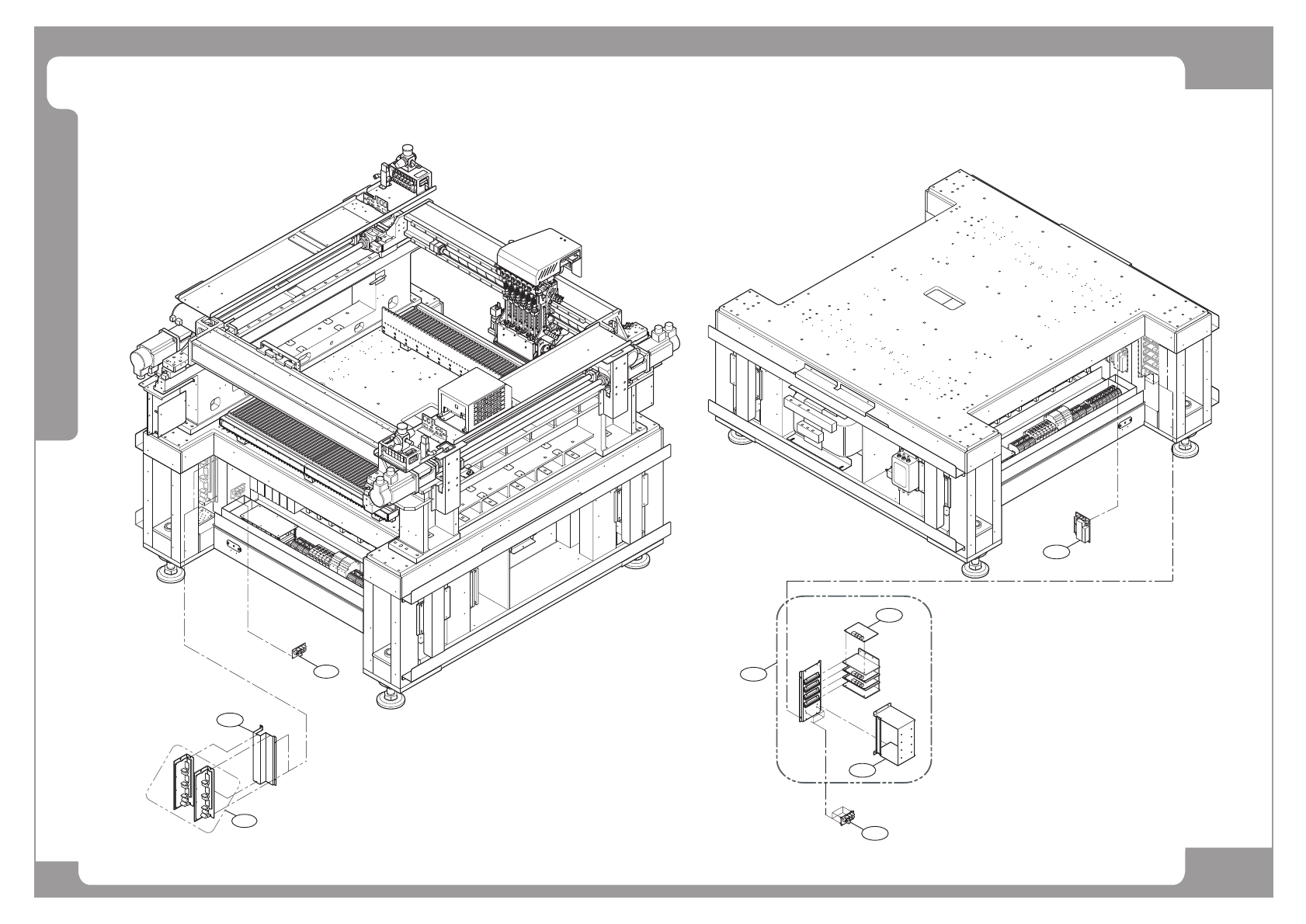

Electric Device Ass’y (3/4)
U F20TBH
NOISE FILTE R
RATING: 450V20A
F.R
R.L
CAN FEEDER BOARD
2
CAN CONVEYOR BOARD
4
3
14
15
U F20TBH
NOISE FILTE R
RATING: 450V20A
1
13
5
SM411
SM411N
18
17
16
20
21
19
2
6
8
22
9
10
7
23
24
25
12
11
Page
HANWHA TECHWIN
109
SM411
Electric Device Ass’y (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 EP06-901007 POWER_SUPPLY 4 EP06-901006
2 J91741026B SM411_AXIS_SENSOR_BOARD 1
3 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
4 AM03-000900A ASSY,BOARD-CAN_CONVEYOR_BOARD_V2.3 1 J9060063E /J91741049A/ J91741049B
5 1
6 J90601030B FR_OPERATE_BOARD 1
7 J91741303A HACB_ASSY 3
8 J90541044A Z_DRIVER_BOX_ASSY 1
9 FC05-000121A BASE-DRIVER_BOX_BASE2;SPCC 1
10 J70541440A DRIVER_BOX_COVER_NEW J70541440A 1
11 J91741282A SSBD_BOARD_ASSY J91741282A 1
12 J70541489A DRIVER_CABLE_SUPPORT J70541489A 1
13 J70511006B POWER_SUPPLY_BRACKET 4
14 EP23-900006 TRANSFOMER 1
15 EP07-901542 NOISE_FILTER UF20TBH 1
16 EP06-901007 POWER_SUPPLY 2 SM411N
17 J70511006A POWER_SUPPLY_BRACKET 2 SM411N
18 FC09-000371A BRACKET-sm400n_smps_base_1;SPCC 1 SM411N
19 EP06-901011 SM411F_POWER_SUPPLY_STW400-S STW400-S 2 SM411N
20 FC09-000372A BRACKET-sm400n_smps_base_2;SPCC 2 SM411N
21 FC09-000371A BRACKET-sm400n_smps_base_1;SPCC 1 SM411N
22 FC09-000373A BRACKET-SM400N_SMPS_BASE_FIXER;SPCC 4 SM411N
23 AM03-000819B ASSY,BOARD-FEEDER IO BOARD ASSY VER 1.6 1 J91741070B/ J91741165A/ AM03-000819A
24 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 J9060339A
Page
HANWHA TECHWIN
110
SM411
Electric Device Ass’y (4/4)
LC1D096BD
LC1D096BD
F.R
R.L
U F20TBH
NOISE FILTE R
RATING: 450V20A
1
2
3
4
8
6
5
7
