Page HANWHA TECHWIN 11 6 SM411 VME IO Board Interface [1 ] [2 ] [3 ] [4 ] [5 ] [6 ] [7 ]
Page
HANWHA TECHWIN
115
SM411

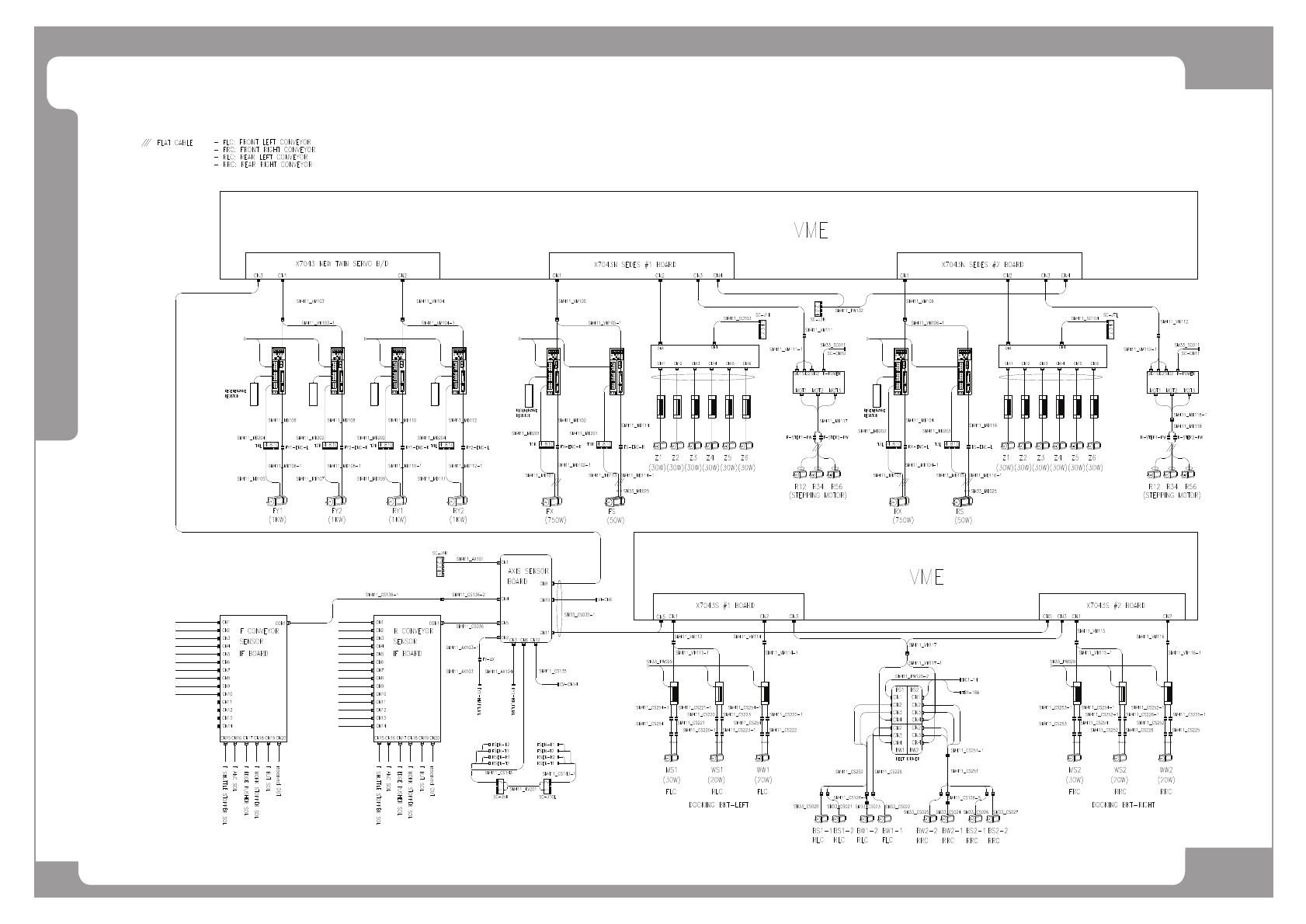

SM411 Wiring Diagram (2/2)
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
Panasonic AC servo
SET
MODE
FRONT SE DES SLAVE B/D
SM33_VM007
SM33_VM009
SM33_MD019
SM33_MD020
SM33_MD021
SM33_MD022
SM33_MD023
SM33_MD024
SM33_PW016
SM33_MD027
REAR SEDES SLAVE B/D
SM33_VM008
SM33_VM009
SM33_MD019
SM33_MD020
SM33_MD021
SM33_MD022
SM33_MD023
SM33_MD024
SM33_PW017
SM33_MD030
SM33_MD008 SM33_MD010
SM33_MD028
SM33_MD029 SM33_MD03131 SM33_MD032
SM33_PW018
SM33_PW019
SM33_CS012
SM33_CS014
SM33_CS013
CONVEYOR HOME SENSORS
F/R Y1 H/+L/-L
CONVEYOR PCB SENSOR
F/R SOL SIGNAL
SENSOR, SOL DATUM
S2-1
SO
S2-2
W1-2
W2-2
WS2H
MS2H
WW1H
F-BUT
reserved IN 2
F STOPPER UP
F STOPPER DN
R STOPPER UP
R STOPPER DN
SENSOR,SOL DATUM
S1-1
SO
S1-2
W1-1
W2-1
WS1H
MS1H
WW2H
R-BUT
reserved IN 1
SM21_MD038 SM21_MD039
SM21_MD039
R-STEPPING
DRIVER
SM33_MD033 SM33_MD035
SM33_MD034
R-STEPPING
DRIVER
SM33_CS012
SM33_CS014
SM33_CS013
Page
HANWHA TECHWIN
116
SM411
VME IO Board Interface
[1] [2]
[3] [4]
[5] [6]
[7]
Page
HANWHA TECHWIN
117
SM411
VME IO Board Interface
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-004373A CABLE ASSY-HD1_VAC_BLOW_CTRL 1
2 AM03-004378A CABLE ASSY-HD1_VAC-BLOW_CTRL_EXT 1
3 AM03-004381A CABLE ASSY-HD2_VAC-BLOW_CTRL 1
4 AM03-004383A CABLE ASSY-HD2_VAC-BLOW_CTRL_EXT 1
5 AM03-004468A CABLE ASSY-VME_IO_BD_PW_J2R 1
6 AM03-004464A CABLE ASSY-RACK_BD_RFDR_PW_SC_J2R 1
7 J90831288A AXIS_SENSOR_BD_DATA_CABLE_ASSY SM33-CS03 1
