Page HANWHA TECHWIN 6 SM411 Feeder Base Ass'y - ST (2/2) CAN FEE DER EXTENSION BOARD LC1D096BD LC1D096BD CAN CONVEYOR BOARD 2-J1301188 2-J1301188 KQ2L04-M5 KQ2L04-M5 U2-4-4*2.5 U2-4-4*2.5 U2-4-4*2.5 U2-4-4*2.5 J6711…
Page
HANWHA TECHWIN
5
SM411

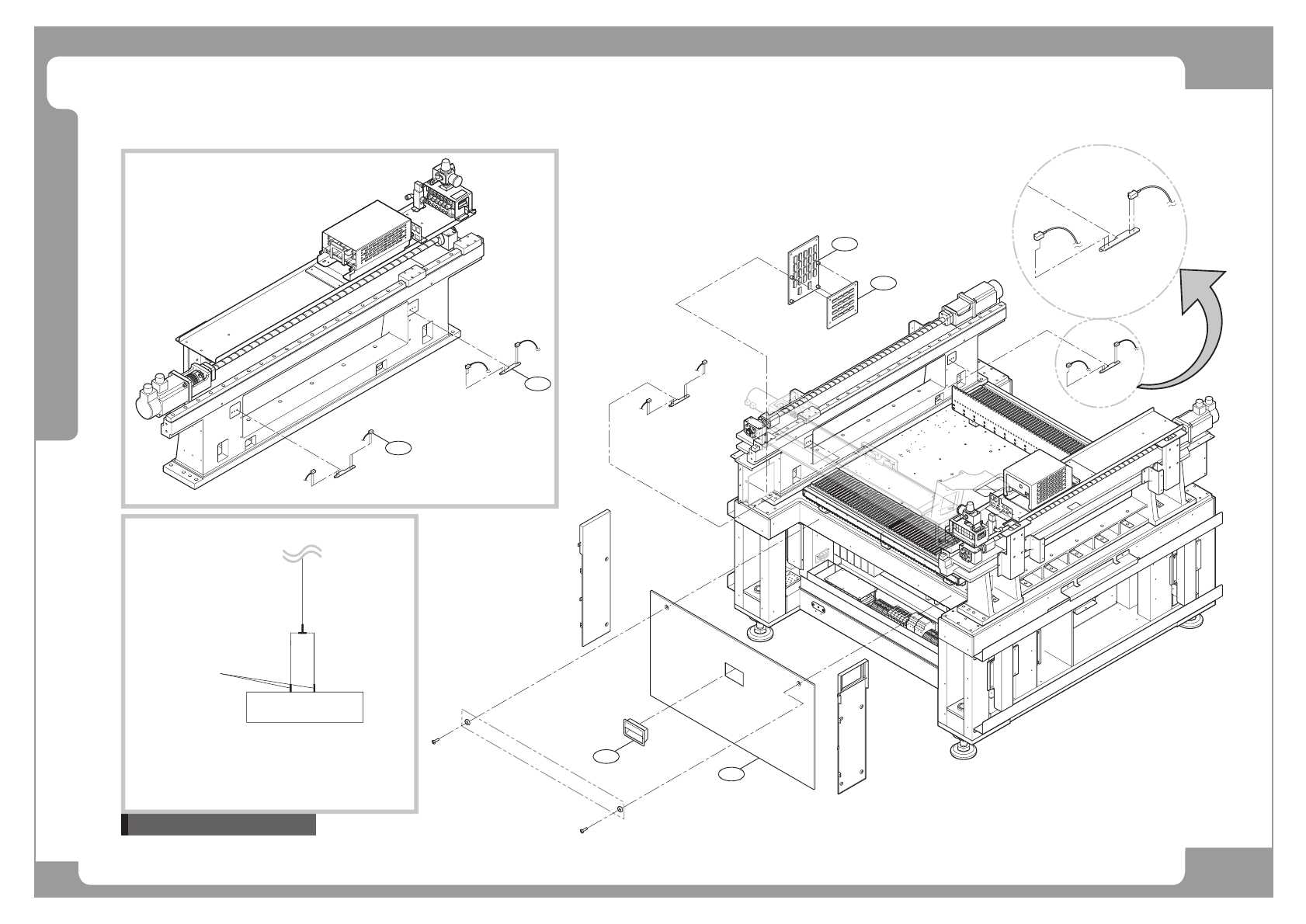

Feeder Base Ass'y - ST (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571010A FEEDER_BASE_ASSY-ST J90571010A 1 SM 411
AM03-001667A ASSY,FEEDER BASE-FEEDER_BASE_ASSY-ST_SM4 1 SM 411N
1 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A
2 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
3 AM03-000694A ASSY,BOARD-FBLN 1 J9060347B /J90600351A
4 FC14-000876 COUPLER 60 HP06-900291/ HP06-900169
5 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060352A
6 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
7 AM03-000693A ASSY,BOARD-FBRN 1 J9060348B
8 HP06-900050 UNION Y FITTING 2 HP06-900199
10 FC09-000901C BRACKET-TOP_PLATE_S 1 FC09-000901A
11 FC09-001200C BRACKET-TOP-PLATE-BACK-HOLE 1 FC09-001200A
12 J90571018A FEEDER_BASE_ST J90571018A 1
13 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 32
14 FC18-902765 SOCKET HEAD CAP SCREW M5*30 (NI/ZN) 13
A-2 J90721011A IT_OPTION_ASSY J90721011A 1 SM411
AM03-001661A ASSY,CHIP MOUNTER IT-IT_OPTION_ASSY_SM411N SM411N
Page
HANWHA TECHWIN
6
SM411
Feeder Base Ass'y - ST (2/2)
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
CAN CONVEYOR BOARD
2-J1301188
2-J1301188
KQ2L04-M5
KQ2L04-M5
U2-4-4*2.5
U2-4-4*2.5
U2-4-4*2.5
U2-4-4*2.5
J6711168A
J6711168A
BUYD06-04
BUYD06-04
J9058086A
J9058086A
SM411 MANIFOLD ASSY
SM411 MANIFOLD ASSY
Feeder Base
Feeder Base
FEEDER BASE ASSY (ST)
FEEDER BASE ASSY (ST)
FEEDER BASE ASSY(REAR-ST)
FEEDER BASE ASSY(REAR-ST)
FEEDER BASE ASSY(FRONT-ST)
FEEDER BASE ASSY(FRONT-ST)
Reference to Air Ass'y
[
Z
Y
X
\
]
Page
HANWHA TECHWIN
7
SM411
Feeder Base Ass'y - ST (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD 2
2 J91741070A FEEDER_IO_BOARD 2
3 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1
J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1
4 J70541103A FRONT_SENSOR_BKT2 J70541103A 2
5 FC29-900144 DRAWER PULL [HD-108] 2
6 FC15-003228A COVER_LFM 1 J70521033B
