Page HANWHA TECHWIN 14 SM411 Feeder Base Ass'y - DC (4/4) Reference to Air Ass'y U2-4-4*2.5 U2-4-4*2.5 U2-4-4*2.5 U2-4-6*4 U2-4-4*2.5 FEEDER BASE ASSY (DC) FEEDER BASE ASSY(FRONT-DC) FEEDER BASE ASSY(REAR-DC) F…

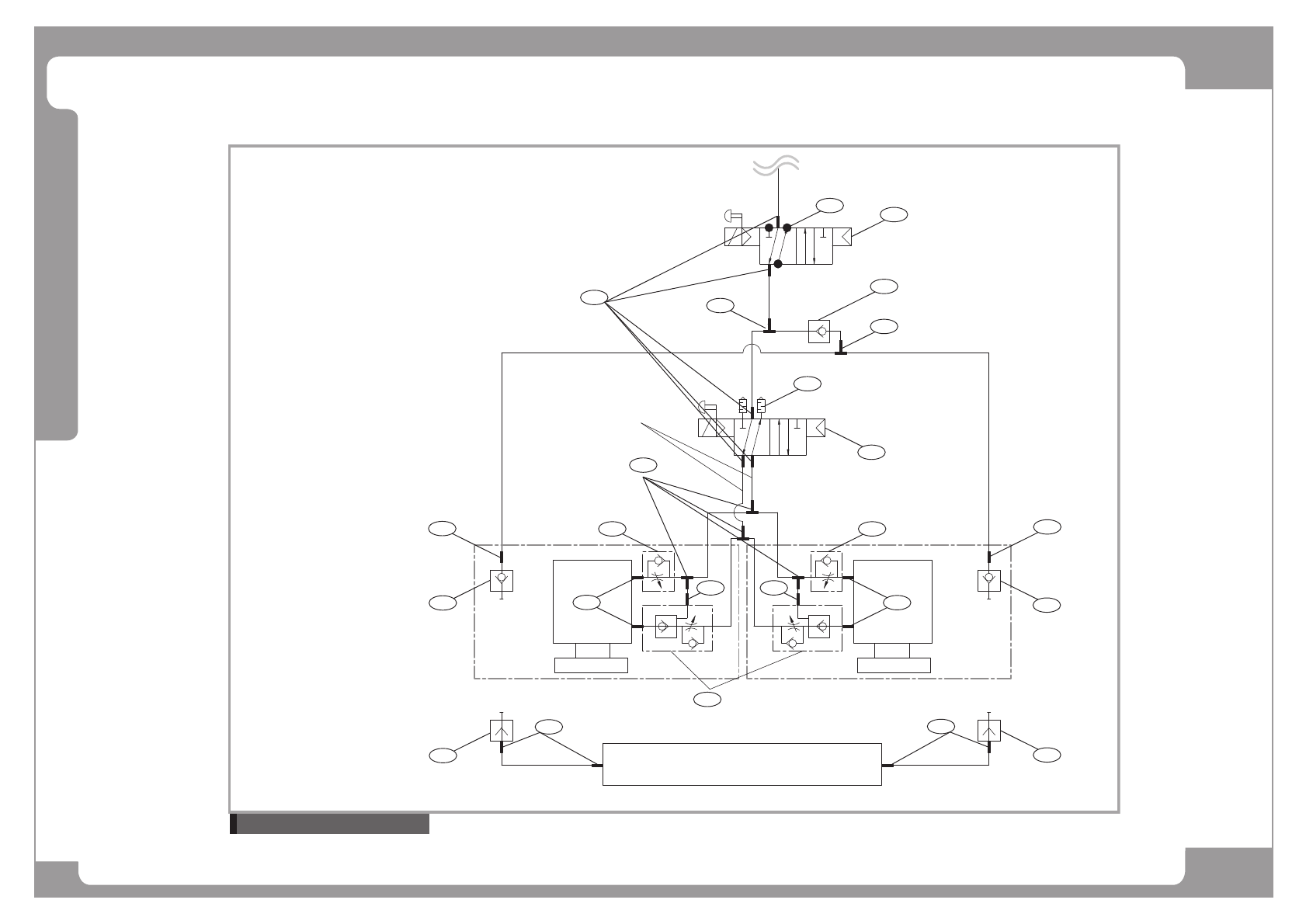

Page
HANWHA TECHWIN
13
SM411
Feeder Base Ass'y - DC (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD 1
2 J91741070A FEEDER_IO_BOARD 1
3 FC18-901203 DOWEL PIN [MS6-10] 8
4 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1
J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1
5 J70541103A FRONT_SENSOR_BKT2 J70541103A 2
6 FC29-900144 DRAWER PULL [HD-108] 2
7 FC15-003228A COVER_LFM 1 J70521033B
Page
HANWHA TECHWIN
14
SM411
Feeder Base Ass'y - DC (4/4)
Reference to Air Ass'y
U2-4-4*2.5
U2-4-4*2.5
U2-4-4*2.5
U2-4-6*4
U2-4-4*2.5
FEEDER BASE ASSY (DC)
FEEDER BASE ASSY(FRONT-DC)
FEEDER BASE ASSY(REAR-DC)
Feeder Base (DC)
12
12
2
4
4
8
8
2
2
5
7 7
6
19
1
14
17
15
16
1
SM411 MANIFOLD ASSY
2
6
15
20
Page
HANWHA TECHWIN
15
SM411
Feeder Base Ass'y - DC (4/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1
2 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
3 HP06-900049 STRAIGHT FITTING 1
4 HP06-900299 COUPLER[KD-M5-SA34697KR] 1
5 HP14-900089 SPEED CON[AS2201F-01-06S] 1
6 HP14-900090 SPEED CON[ASP330F-01-06S] 1
7 HP06-900048 ELBOW FITTING [KQ2L06-M5] 1
8 HP06-900293 ELBOW FITTING[PT18EF] 2
9 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047
10 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
11 J91741070A FEEDER_IO_BOARD 1
12 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2
13 FC14-000876 COUPLER 60 HP06-900291/ HP06-900169
14 FC14-900724 PLUG [PT 1/8] 6
15 HP06-900050 UNION Y FITTING 2 HP06-900199
16 HP09-900162 SILENCER [AN101-01] 4
17 HP14-900092 CHECK VALVE[AKH06-00] 2
18 FC18-901203 DOWEL PIN [MS6-10] 8
19 HP06-900014 FITTING [KQ2L06-01/PL6-01] 10 J6711007A
20 HP06-900018 FITTING [KQ2U06-00/PY6M] 10
