SM411_TRM(Ver12.0_CS16.50).pdf - 第170页
Page HANWHA TECHWIN 158 SM411 Servo Interface (WD) - 2/2 [1 ] [2 ] [3 ] [4 ] [5 ] [6 ] [7 ] [8 ] [9 ] [1 0 ] [1 1 ] [ 12] [1 3 ] [1 4] [1 5 ] [1 6 ] [1 7 ] [ 18]
Page
HANWHA TECHWIN
157
SM411
Servo Interface (WD) - 1/2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-004419A CABLE ASSY-MS1_WS1_DRV_CMD_RACK 1
2 AM03-004420A CABLE ASSY-MS1_WS1_DRV_CMD_EXT 1
3 AM03-004423A CABLE ASSY-WW1_DRV_CMD_RACK 1
4 AM03-004427A CABLE ASSY-WW1_DRV_CMD_EXT 1
5 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 3
6 AM03-004362A CABLE ASSY-MS1_MOTOR_ENC_EXT 1
7 AM03-004361A CABLE ASSY-MS1_MOTOR_ENC 1
8 AM03-004535A CABLE ASSY-MS1_WW1_MOT_PW 1
9 J90831199A MS1_SERVO_MOTOR_CABLE_ASSY SM33-CS012 1
10 AM03-004365A CABLE ASSY-WS1_MOTOR_ENC 1
11 AM03-004367A CABLE ASSY-WS1_MOTOR_ENC_EXT 1
12 AM03-001349A CABLE ASSY-WS1_SERVO_MOTOR 1
13 AM03-004359A CABLE ASSY-WS1_MOTOR_PW 1
14 AM03-004360A CABLE ASSY-WS1_MOTOR_PW_EXT 2
15 AM03-004363A CABLE ASSY-WW1_MOTOR_ENC 1
16 J90831201A WW1_SERVO_MOTOR_CABLE_ASSY SM33-CS014 1
Page
HANWHA TECHWIN
158
SM411

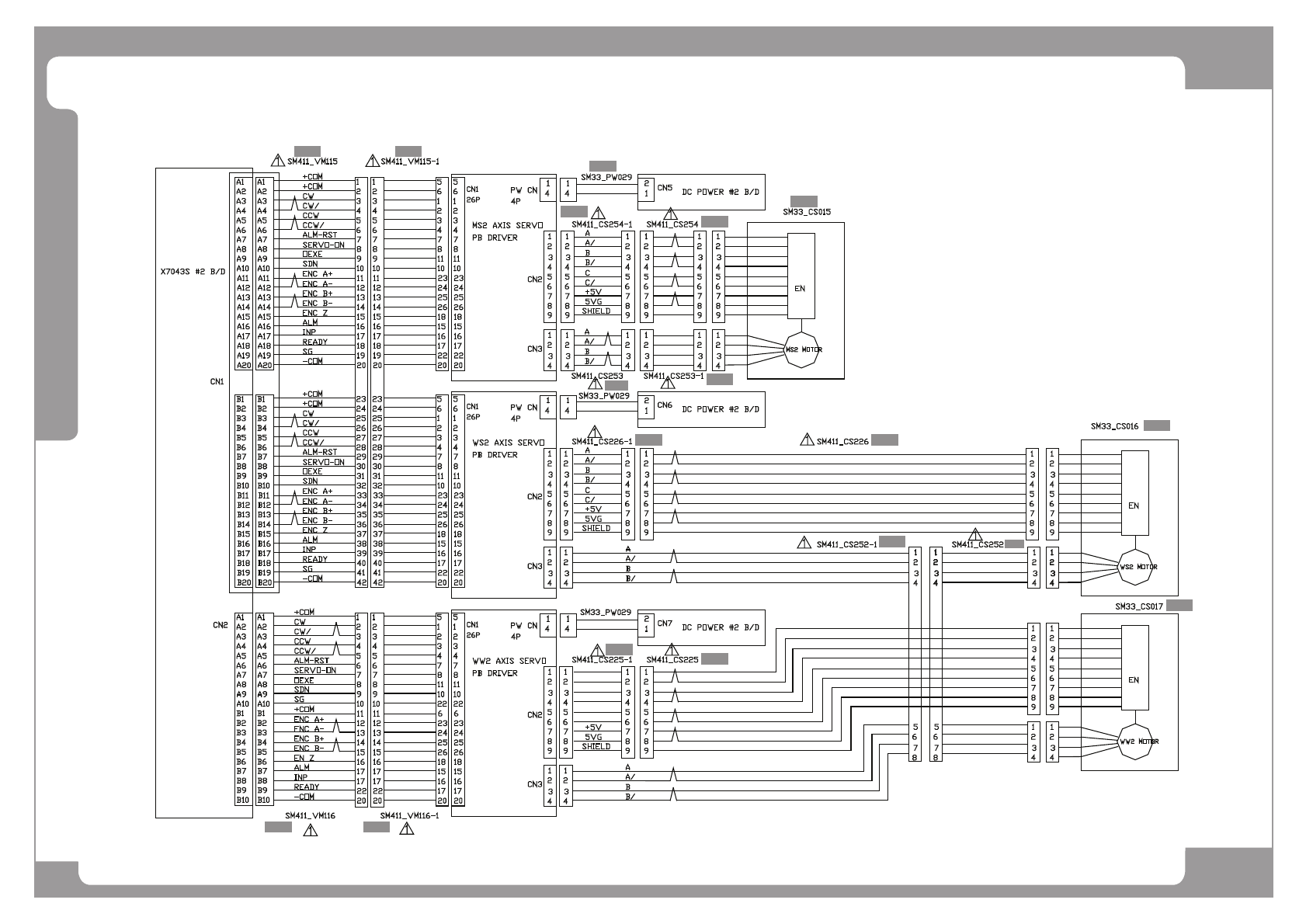

Servo Interface (WD) - 2/2
[1] [2]
[3] [4]
[5]
[6]
[7]
[8]
[9]
[10] [11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
Page
HANWHA TECHWIN
159
SM411
Servo Interface (WD) - 2/2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-004469A CABLE ASSY-MS2_WS2_DRV_CMD_RACK 1
2 AM03-004430A CABLE ASSY-MS2_WS2_DRV_CMD_EXT 1
3 AM03-004433A CABLE ASSY-WW2_DRV_CMD_RACK 1
4 AM03-004435A CABLE ASSY-WW2_DRV_CMD_EXT 1
5 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 3
6 AM03-004535A CABLE ASSY-MS1_WW1_MOT_PW 1
7 AM03-004536A CABLE ASSY-MS1_WW1_MOT_PW_EXT 1
8 AM03-004537A CABLE ASSY-MS2_MOTOR_PW 1
9 AM03-004538A CABLE ASSY-MS2_MOTOR_PW_EXT 1
10 AM03-004380A CABLE ASSY-WS2_MOTOR_ENC_EXT 1
11 AM03-004376A CABLE ASSY-WS2_MOTOR_ENC 1
12 J90831203A MS2_SERVO_MOTOR_CABLE_ASSY SM33-CS016 1
13 AM03-004540A CABLE ASSY-WS2_WW2_MOT_PW_EXT 1
14 AM03-004539A CABLE ASSY-WS2_WW2_MOT_PW 1
15 AM03-004375A CABLE ASSY-WW2_MOTOR_ENC_EXT 1
16 AM03-004372A CABLE ASSY-WW2_MOTOR_ENC 1
17 AM03-001000A CABLE ASSY-WS2_SERVO_MOTOR 1
18 J90831202A WW2_SERVO_MOTOR_CABLE_ASSY SM33-CS015 1
