YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50052
9/27
Click the [ERROR CLEAR] button on the error message, and the [Buffing check result]
dialog is displayed. (See Fig. 4.2.3)
Fig. 4.2.3 Buffing check result dialog
On this dialog, you can see the result of nozzle buffing check.
Moreover, since the Nozzle Station shutter is open while displaying this dialog, you can see
the abnormal nozzle condition and exchange it.
[Table No, Head No, Nozzle Type]
Table No, Head No, and Nozzle Type of all nozzles to execute nozzle buffing check
[Nozzle station No]
Nozzle Station Number corresponding to the Table No, Head No, and Nozzle Type
0 is always displayed for a manual nozzle and a stationary nozzle.
[Result]
Result of nozzle buffing check (See Table 4.2.4)
In addition, select a grid, and you can see its detail on the right area on the screen.
When the nozzle buffing check is executed for the head in which the nozzle is not set, it
becomes abnormality.
YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50052
10/27
Table 4.2.4 Nozzle buffing check execution result list
Result Details
Correctly
Abnormality was not found in the nozzle buffing.
Low
Level
Buffing
Error
The nozzle has slight friction with the buffing action.
Proceed maintenance operation and confirm whether the buffing action is
smooth.
Even if the buffing action is smooth, when the following setting have wrong
value or it is a different setup from an actual nozzle, this error will occur.
(1)[Buffing check spec]-[Measurement height]
(2)[Nozzle Data]-[Length]
Middle
Level
Buffing
Error
The nozzle has friction with the buffing action, or the nozzle is clogged up.
Proceed maintenance operation for the nozzle.
If nozzle don't recover good condition, recommend exchange to spare nozzle.
Even if the buffing action is smooth, when the following setting have wrong
value or it is a different setup from an actual nozzle, this error will occur.
(1)[Buffing check spec]-[Measurement height]
(2)[Nozzle Data]-[Length]
(3)[Nozzle Data]-[Buffing]
High
Level
Buffing
Error
The nozzle has friction with the buffing action, or the nozzle is clogged up.
Proceed maintenance operation for the nozzle.
If nozzle don't recover good condition, recommend exchange to spare nozzle.
Even if the buffing action is smooth, when the following setting have wrong
value or it is a different setup from an actual nozzle, this error will occur.
(1)[Buffing check spec]-[Measurement height]
(2)[Nozzle Data]-[Length]
(3)[Nozzle Data]-[Buffing]
YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50052
11/27

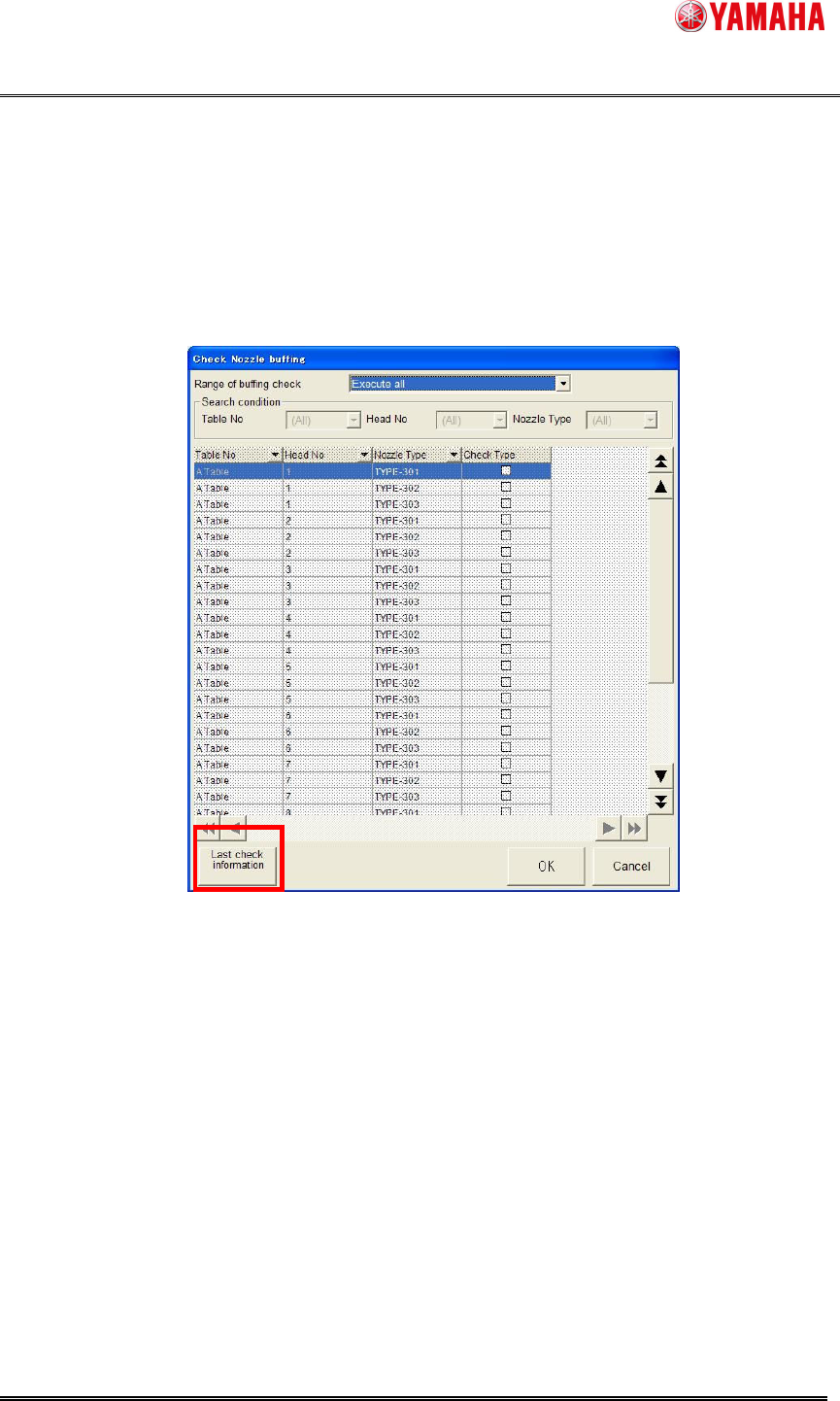

When nozzle buffing check finished normally, the [Unit] - [Head] - [Buffing check] - [Last check
information] button becomes available.
The [buffing check result] dialog can be displayed again by pushing this button. (See Fig. 4.2.5)
Use this button in such a case like you close the [buffing check result] dialog by mistake, and
also you want to see the previous result of checking. (See Fig. 4.2.3)
[Last check information] button becomes invalid if you cancel [nozzle buffing check] or power
down.
Fig. 4.2.5 Last check information
When you select [Execute all], result of a head with [ManualNzlChg] or [Fixed Nozzle]
selected on [VmSpec] - [Machine Data] - [Head] - [Head Offset] - [Head Type] is not
indicated.
