7.3. Output log
After the nozzle buffing check is executed, the execution result is output to [MIS]-[Error log].
The detection result is output in case of normal or abnormal. (See Fig. 0.2)
Moreover, when the detection result is abnormality, the station numbers of the nozzle with the
error can be displayed up to ten.

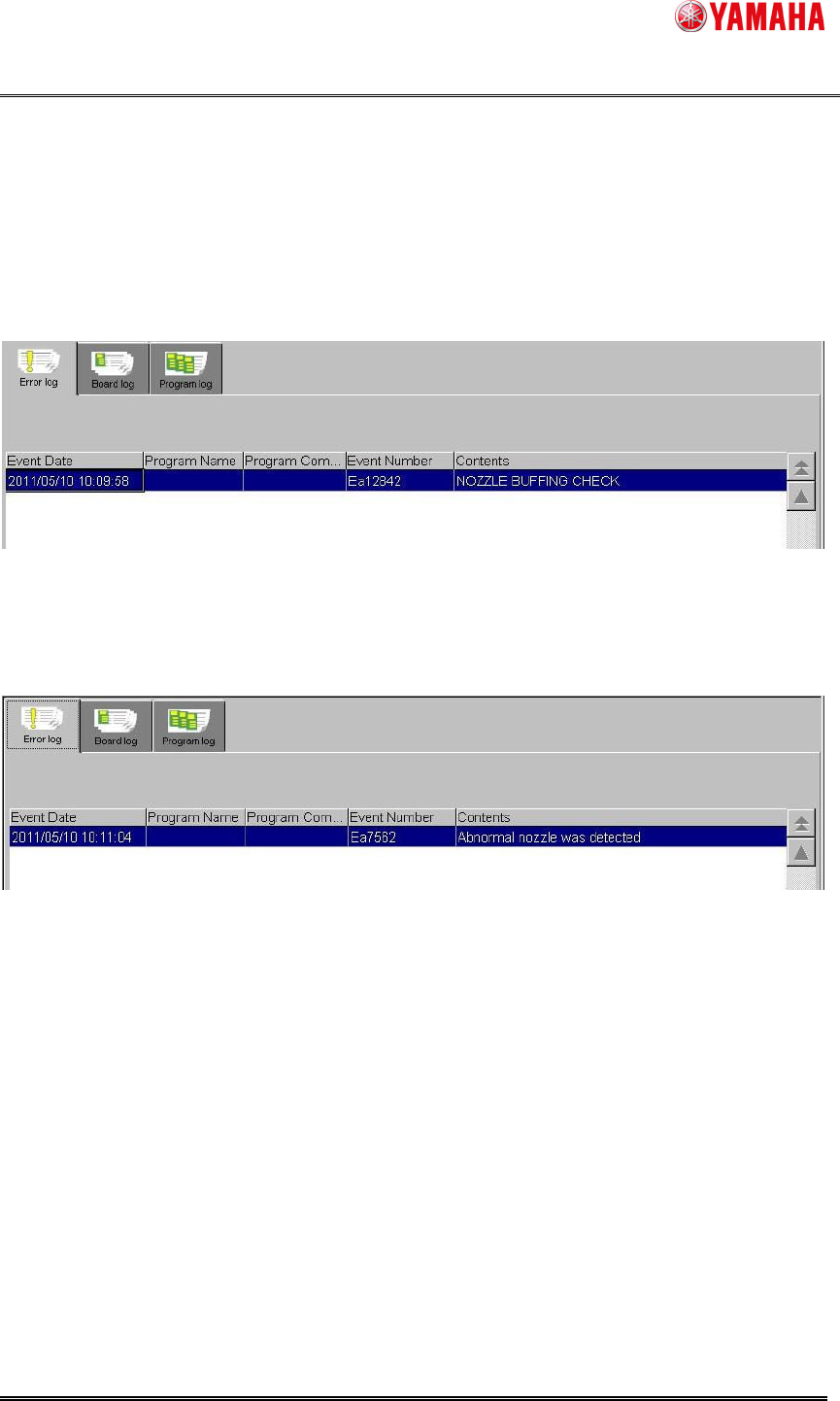

Log output when normality finish.
Fig. 0.1 Error log screen normality finish
Log output when abnormality finish.
Fig. 0.2 Error log screen abnormality finish
YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50052
23/27
7.4. Nozzle buffing check result log
Log file of the latest nozzle buffing check result is output to the following destination.
[D:¥Machine¥My History¥NozzleBuffingCheckResult.csv]
(*) System Backup acquires this file.
Format of log file
Item Contents Record value
Table
A table number Is
expressed.
In an order from 0, A table, B table, C table,
and D table are expressed.
Head
A
Head number is
expressed.
Each head number is expressed in an
order from 0.
Nozzle Type
A number denotes a
nozzle type.
A nozzle type is expressed in an order from
0.
It is display turn of [VmSpec] -
[Specification Information] - [M
ount Nozzle
Specification] - [Nozzle Data].
Target It is records whether it is
a candidate for
execution of nozzle
buffing check.
A decimal number records what carried out
bit expression of the head for execution.
For example, it is set to "21" when
performing a nozzle buffing check to 301
nozzles of No.1, No.3, and a No.5 head.
Result
A result
of nozzle buffing
check is expressed
numerically.
A decimal number records the logical sum
of the following values for a
nozzle buffing
check result.
0：
Correctly
1：It adherence, while it was extended.
2：It adheres a little or motion is astringent.
4：It adherence, while it was shrunk.
8：It not returned, when carrying out buffing
Buffing Target
Height
A target position
of
servo buffing is
recorded.
Z-axis is recorded.
Buffing Intol Height
A
stop position of servo
buffing is recorded.
Z-axis is recorded.
YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50052
24/27
Vacuum Level A
A vacuum release
is
recorded.
Vacuum level
is recorded.
Vacuum Level B
A vacuum sealing of
before buffing
is
recorded.
Vac
uum level is recorded.
Vacuum Level C
A vacuum sealing of
press-in
is recorded.
Vacuum level
is recorded.
Vacuum Level D
A vacuum sealing of after
buffing
is recorded.
Vacuum level
is recorded.
Current Value
A current value
is
recorded.
A maximum of
128 current values are
recorded.
