YAMAHA Motor Co. Ltd.,

IM Company

SMT Software Engineering Group

MDOC-SOFT50052

2/27

1. Introduction

Target models and target versions are as follows.

Table 1.1 Target model and target version

Target model Target version Remarks

YS12 series mounter

YG12 series mounter

YS24 series mounter

YS24X series mounter

Since VGOS V3.28 R1.00

2. Objective

This function is to check a condition of nozzle buffing any time you like.

The following abnormities can be detected.

- Stiff buffing with the nozzle shorten.

- Completely stiff buffing with the nozzle extended.

- Buffing can slide but not smoothly.

- It not returned, when carrying out buffing, and the nozzle became short.

It can cause mis-picking and miss-mounting if you use such nozzles above, so we recommend

maintenance or exchange the nozzle as soon as an abnormity is detected.

YAMAHA Motor Co. Ltd.,

IM Company

SMT Software Engineering Group

MDOC-SOFT50052

3/27

3. Setting method

3.1. Machine Setting

To use this function, Set [VmSpec] – [Specification Information] – [Buffing check spec] to “Use”.

(See Fig. 3.1.1)

Fig. 3.1.1 Machine setting

3.2. Nozzle Buffing Setting

This function is supported only with nozzles with buffing.

You can see if they have buffing or not from [VmSpec] – [Specification Information] – [Mount

Nozzle Specification] – [Nozzle Data]. (See Fig. 3.2.1)

Fig. 3.2.1 Setting the nozzle buffing

YAMAHA Motor Co. Ltd.,

IM Company

SMT Software Engineering Group

MDOC-SOFT50052

4/27

4. Fundamental motion

4.1. Execute function

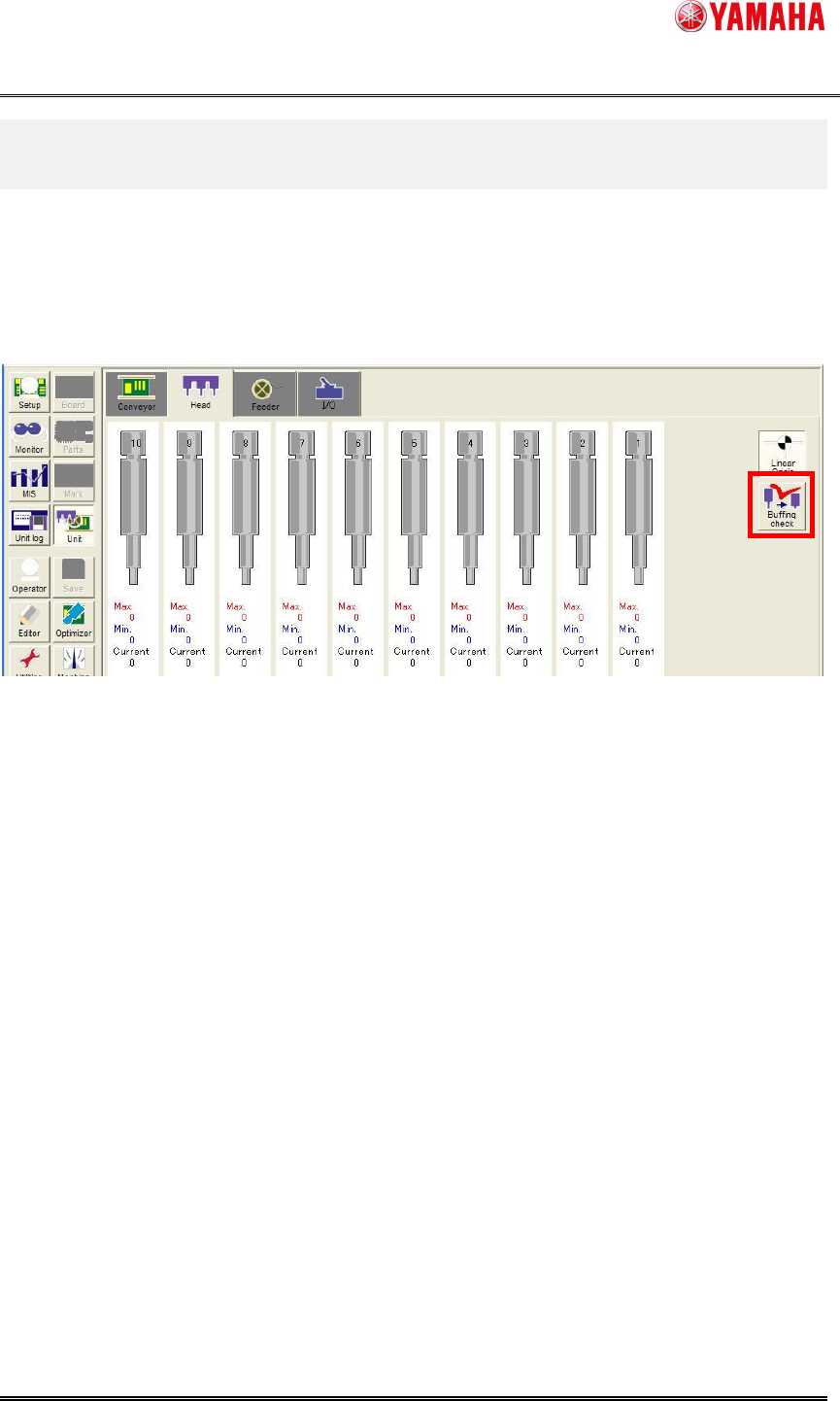

1) To execute the function, click [Unit] - [Head] - [Buffing Check] (See Fig. 4.1.1)

If “None” is set on [VmSpec]-[Machine Information]-[Installation Setting] - [Nozzle Station], the

[Buffing check] button becomes activated after loading board data.

Fig. 4.1.1 Buffing Check button
