MODEL TCM-X210 0306-001 148 XY テーブル配管、配線 XY T ABLE PIPING,WIRING Fig. JE-5 XY シュートカバー XY Chute Cover 413 403 413 413 404 408 409 410 408 409 410 407 413 402 405 401 See Fig.JC-1 Key No. 4 See Fig.JD-4 Key No.307 See Fig.…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
147
JE-4
302 630 003 7005 PIPE FITTINGS 1 801JE-110-302
303 630 080 1439 PIPE FITTINGS 1 801JE-110-303
304 630 123 3260 AIR LINE EQPT 1 801JE-110-304
305 630 003 7302 PIPE FITTINGS 1 801JE-110-305
306 630 076 9005 VALVE 1 YSV54,YSV55,YSV56 801JE-110-306
307 630 000 7633 BOLT,HEX-SCT 2 801JE-110-307
308 630 000 7688 BOLT,HEX-SCT 2 801JE-110-308
309 411 141 2905 WASHER SPR 4 4 801JE-110-309
310 411 141 4008 WASHER V 4X9X0.8 2 801JE-110-310
311 630 079 8432 AIR LINE EQPT 3 801JE-110-311
312 630 001 0213 WASHER 2 801JE-110-312
MODEL TCM-X210
0306-001
148
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

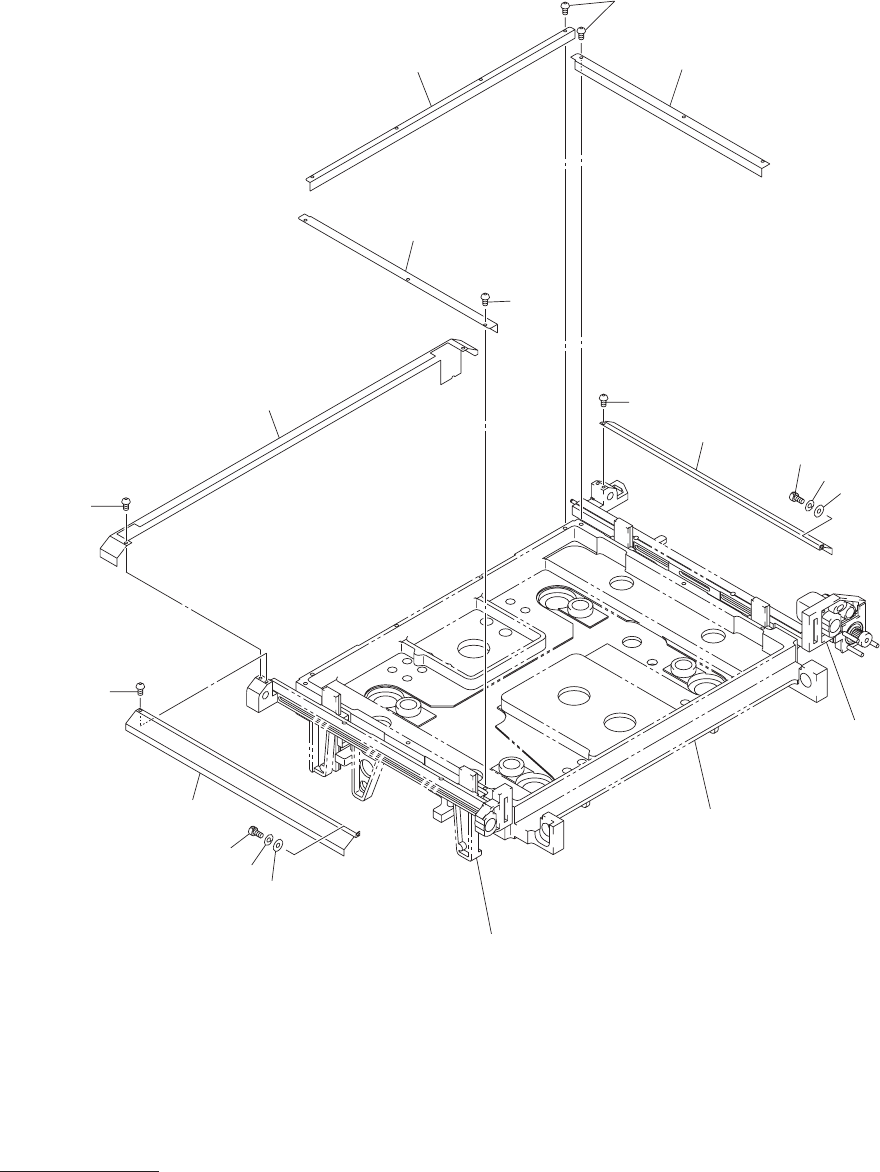

Fig. JE-5 XY
シュートカバー
XY Chute Cover
413
403
413
413
404
408
409
410
408
409
410
407
413
402
405
401
See Fig.JC-1
Key No.
4
See Fig.JD-4
Key No.307
See Fig.JD-4
Key No.306
413
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
149
JE-5
401 630 068 3042 COVER 1 801JE-110-401
402 630 068 3059 COVER 1 801JE-110-402
403 630 068 3066 COVER 1 801JE-110-403
404 630 093 5967 COVER 1 801JE-110-404
405 630 093 5974 COVER 1 801JE-110-405
407 630 093 5981 COVER 1 801JE-110-407
408 630 000 7527 BOLT,HEX-SCT 2 801JE-110-408
409 411 141 2806 WASHER SPR 3 2 801JE-110-409
410 411 141 3902 WASHER V 3X7X0.5 2 801JE-110-410
413 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 14 801JE-110-413
