MODEL TCM-X210 0306-001 292 51 53 54 52 52 See Fig.MB-6 Key No.504 See Fig.MA-1 Key No.20 See Fig.MA-1 Key No.31 See Fig.RK-1 Key No.57 See Fig.MB-6 Key No.505 See Fig.MA-8 Key No.701 55 57 See Fig.RL-4 Key No.366 See Fi…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
291
RM-4
302 630 035 2658 BRACKET 1 801RM-110-302
303 411 088 1702 WASHER V 5X10X1 2 801RM-110-303
304 411 008 2109 WASHER SPR 5 2 801RM-110-304
305 411 140 5105 BOLT HEX 5X14 2 801RM-110-305
351 630 111 6112 ASSY,PILOT LAMP 1 H1,H2,H3 801RM-110-351
MODEL TCM-X210
0306-001
292
51
53
54
52
52
See Fig.MB-6
Key No.504
See Fig.MA-1
Key No.20
See Fig.MA-1
Key No.31
See Fig.RK-1
Key No.57
See Fig.MB-6
Key No.505
See Fig.MA-8
Key No.701
55
57
See Fig.RL-4
Key No.366
See Fig.RG-1
Key No.51
58

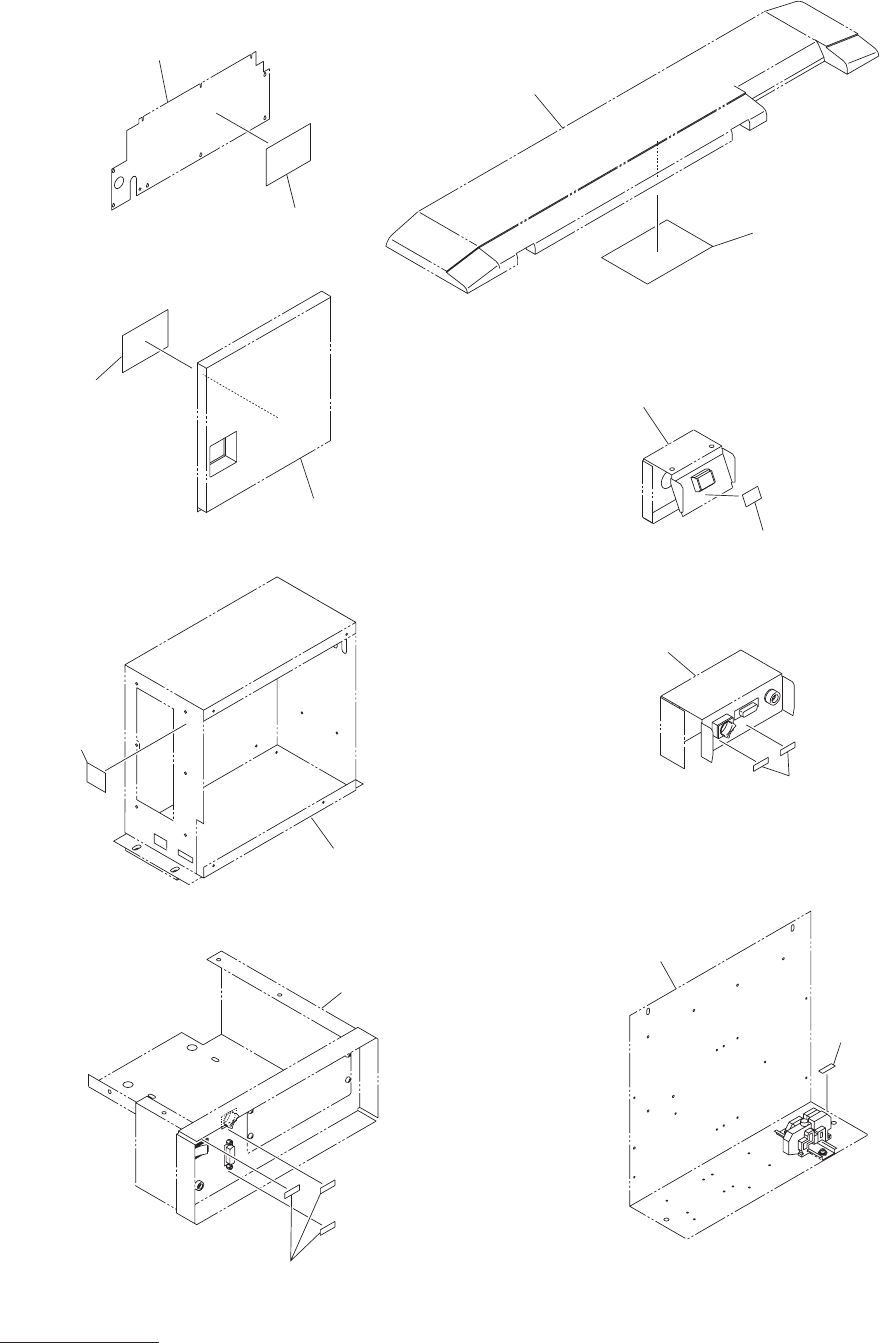

銘板
NAME PLATE
Fig. SA-1
装置銘板
Name Plate for Machine
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
293
51 630 095 3817 NAME PLATE,PARTS 1 801SA-110-051
52 630 097 8094 NAME PLATE,PARTS 1 801SA-110-052
53 630 120 4635 NAME PLATE,PARTS 1 801SA-110-053
54 630 122 4848 NAME PLATE,PARTS 1 801SA-110-054
55 630 120 4666 NAME PLATE,PARTS 1 801SA-110-055
57 630 120 9555 NAME PLATE,PARTS 1 801SA-110-057
58 630 120 9593 NAME PLATE,PARTS 1 801SA-110-058
SA-1
