MODEL TCM-X210 0506-002 36 103 103-0 5 103-11 103-2 1 103-2 0 103-31 103-30 103-4 1 103-40 103-0 7 103-10 103-0 9 103-1 4 103-0 6 103-0 8 103-13 103-1 2 103-02 111 11 2 113 10 2 10 4 10 5 114 106 123 11 2 113 107 10 7 10…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
35
1 630 089 0419 PLATE 1 801D--110-001
2 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 801D--110-002
3 411 141 4305 WASHER V 6X12.5X1.6 8 801D--110-003
4 411 141 3001 WASHER SPR 6 8 801D--110-004
5 630 000 7862 BOLT,HEX-SCT 8 801D--110-005
6 630 001 0220 WASHER 4 801D--110-006
7 411 141 6705 WASHER SPR 5 4 801D--110-007
8 630 000 7770 BOLT,HEX-SCT 4 801D--110-008
9 630 055 2195 VACUUM PUMP 1 M1,#3-040437-1 801D--110-009
9 -10 630 031 8593 AIR LINE EQPT(FILTER) 1 #3-037940
9 -11 630 012 1230 AIR LINE EQPT(FLT ELEM) 1 #XB401379743 4-410A302-4
9 -20 630 055 2171 VACUUM PARTS 1 #4-400A302-1
10 630 055 3062 PIPE FITTINGS 1 801D--110-010
11 630 086 8821 BRACKET 1 801D--110-011
12 411 141 4107 WASHER V 5X10X1 2 801D--110-012
13 411 141 6705 WASHER SPR 5 2 801D--110-013
14 630 000 7749 BOLT,HEX-SCT 2 801D--110-014
15 630 003 7074 PIPE FITTINGS 1 801D--110-015
16 411 141 4503 WASHER V 8X17X1.6 4 801D--110-016
17 411 141 3100 WASHER SPR 8 4 801D--110-017
18 411 141 0901 NUT HEX 8 4 801D--110-018
20 630 003 7845 PIPE FITTINGS 1 801D--110-020
21 630 003 8187 PIPE FITTINGS 5 801D--110-021
22 630 003 8088 PIPE FITTINGS 1 801D--110-022
23 630 003 8279 PIPE FITTINGS 1 801D--110-023
24 630 009 3520 PIPE FITTINGS 1 801D--110-024
25 630 003 7067 PIPE FITTINGS 1 801D--110-025
29 630 004 1026 PIPE FITTINGS 1 801D--110-029
34 630 116 9958 TUBE 1 801D--110-034
35 630 119 6848 TUBE 1 801D--110-035
D-1
MODEL TCM-X210
0506-002
36
103
103-0
5
103-11
103-2
1
103-2
0
103-31
103-30
103-4
1
103-40
103-0
7
103-10
103-0
9
103-1
4
103-0
6
103-0
8
103-13
103-1
2
103-02
111
11
2
113
10
2
10
4
10
5
114
106
123
11
2
113
107
10
7
10
8
10
8
117
10
9
10
9
12
4
115
11
6
121
12
2

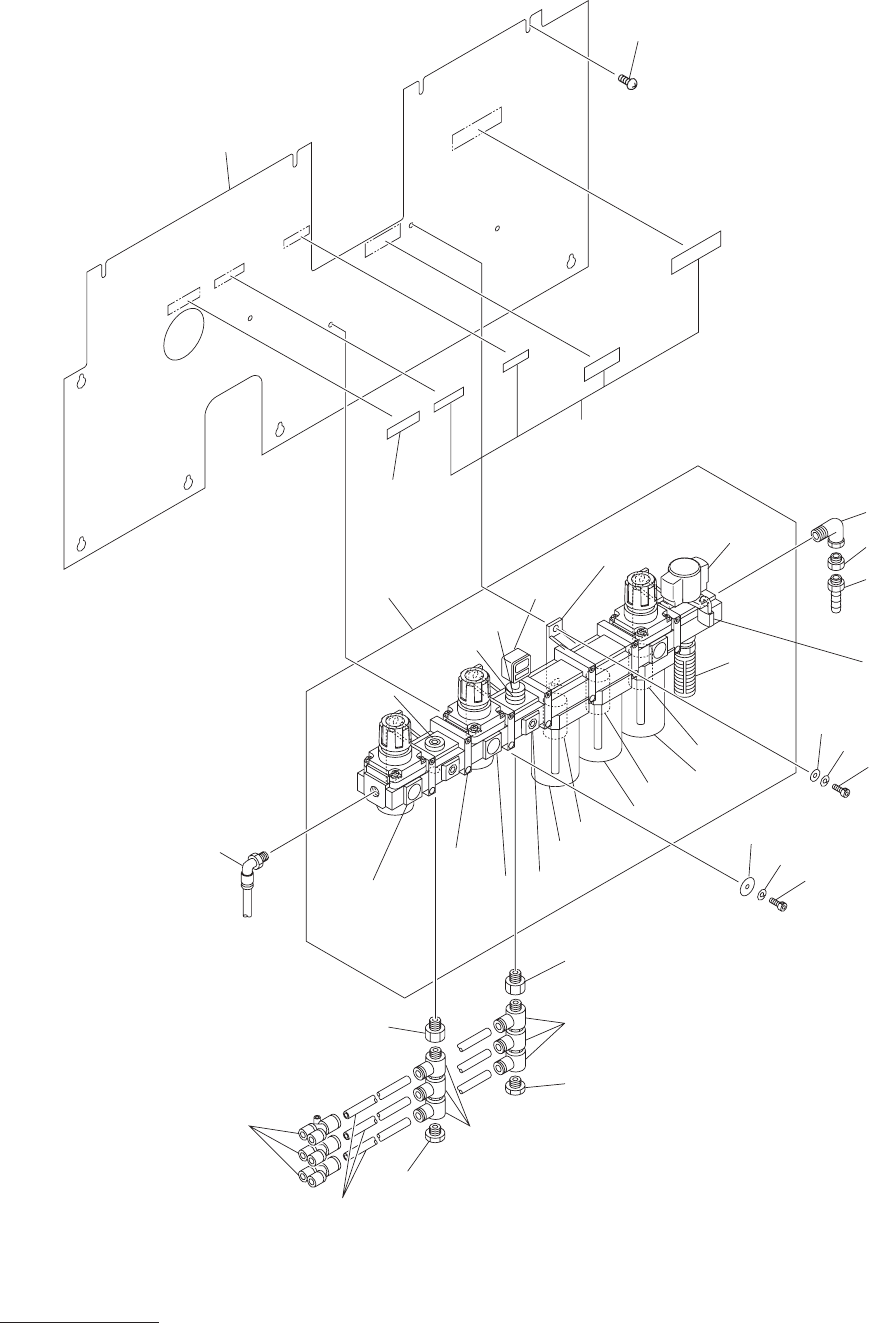

空圧制御部
PNEUMATIC SECTION
Fig. D-2
エアポート配管
Air Port Piping
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
37
102 630 003 7890 PIPE FITTINGS 1 801D--110-102
103 630 118 9109 AIR LINE EQPT 1 801D--110-103
103 -02 630 121 4467 AIR LINE EQPT 1
103 -05 630 121 4481 VALVE 1
103 -06 630 105 7606 SWITCH,PRESSURE 1 SP1
103 -07 630 105 7538 PIPE FITTINGS 2
103 -08 630 121 4504 AIR LINE EQPT 4
103 -09 630 121 4498 AIR LINE EQPT 3
103 -10 630 121 4474 AIR LINE EQPT 1
103 -11 630 105 7521 AIR LINE EQPT 1
103 -12 630 121 4535 PIPE FITTINGS 1
103 -13 630 105 7545 PIPE FITTINGS 1
103 -14 630 105 7569 PIPE FITTINGS 5
103 -20 630 121 4436 AIR LINE EQPT 1
103 -21 630 121 5648 AIR LINE EQPT(ELEMENT) 1
103 -30 630 121 4443 AIR CLEAN EQPT 1
103 -31 630 121 5655 AIR LINE EQPT(ELEMENT) 1
103 -40 630 121 4450 AIR CLEAN EQPT 1
103 -41 630 121 5662 AIR LINE EQPT(ELEMENT) 1
104 630 003 8033 PIPE FITTINGS 1 801D--110-104
105 630 008 0285 PIPE FITTINGS 1 801D--110-105
106 630 003 7364 PIPE FITTINGS 1 801D--110-106
107 630 003 8231 PIPE FITTINGS 2 801D--110-107
108 630 003 8224 PIPE FITTINGS 6 801D--110-108
109 630 003 8248 PIPE FITTINGS 2 801D--110-109
111 411 141 4305 WASHER V 6X12.5X1.6 2 801D--110-111
112 411 141 3001 WASHER SPR 6 4 801D--110-112
113 630 000 7893 BOLT,HEX-SCT 4 801D--110-113
114 630 053 4917 MECH PARTS (PADLOCK) 1 801D--110-114
115 630 120 9203 COVER 1 801D--110-115
116 411 113 9109 SCR TRS 5X10 9 801D--110-116
117 630 089 9559 PIPE FITTINGS 3 801D--110-117
121 630 101 4593 NAME PLATE,PARTS 1 801D--110-121
122 630 131 6277 NAME PLATE,PARTS 1 801D--110-122
123 630 001 0237 WASHER 2 801D--110-123
124 630 119 6848 TUBE 1 801D--110-124
D-2
