MODEL TCM-X210 0506-002 226 フィーダキャリッジカバー部 FEEDER CARRIAGE COVER SECTION Fig. MB-6 後面操作パネル Rear Operation Panel 515 530 543 VIEW "A" VIEW "B" 501 524 523 522 522 A B C B 512 532 530 513 516 526 530 532…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
225
MB-3
201 630 119 7012 BRACKET 1 801MB-110-201
202 630 119 7029 BRACKET 1 801MB-110-202
203 630 097 4065 BRACKET 1 801MB-110-203
204 630 119 6992 BRACKET 8 801MB-110-204
205 630 119 8774 BRACKET(R) 1 801MB-110-205
206 630 119 8781 BRACKET(L) 1 801MB-110-206
209 630 089 2284 NAME PLATE,INDEX 6 801MB-110-209
212 630 097 4072 BRACKET 1 801MB-110-212
213 630 119 7036 SUPPORT 2 801MB-110-213
214 630 119 7043 SUPPORT 2 801MB-110-214
215 630 097 6748 STAY 1 801MB-110-215
216 630 097 6755 STAY 1 801MB-110-216
219 630 119 7067 BRACKET 1 801MB-110-219
220 630 119 7074 BRACKET 1 801MB-110-220
221 630 117 1715 COVER(R) 1 801MB-110-221
222 630 117 1692 COVER(L) 1 801MB-110-222
224 630 119 7081 STAY 1 801MB-110-224
225 630 119 7098 STAY 1 801MB-110-225
227 630 107 9318 ACCESSORY,WIRING 2 801MB-110-227
230 411 113 9109 SCR TRS 5X10 2 801MB-110-230
231 630 000 7770 BOLT,HEX-SCT 8 801MB-110-231
232 630 000 7763 BOLT,HEX-SCT 68 801MB-110-232
233 630 000 7756 BOLT,HEX-SCT 8 801MB-110-233
235 411 141 6705 WASHER SPR 5 84 801MB-110-235
236 630 001 0220 WASHER 54 801MB-110-236
237 411 141 4107 WASHER V 5X10X1 30 801MB-110-237
239 411 140 8007 SCR TRS 5X6 2 801MB-110-239
MODEL TCM-X210
0506-002
226

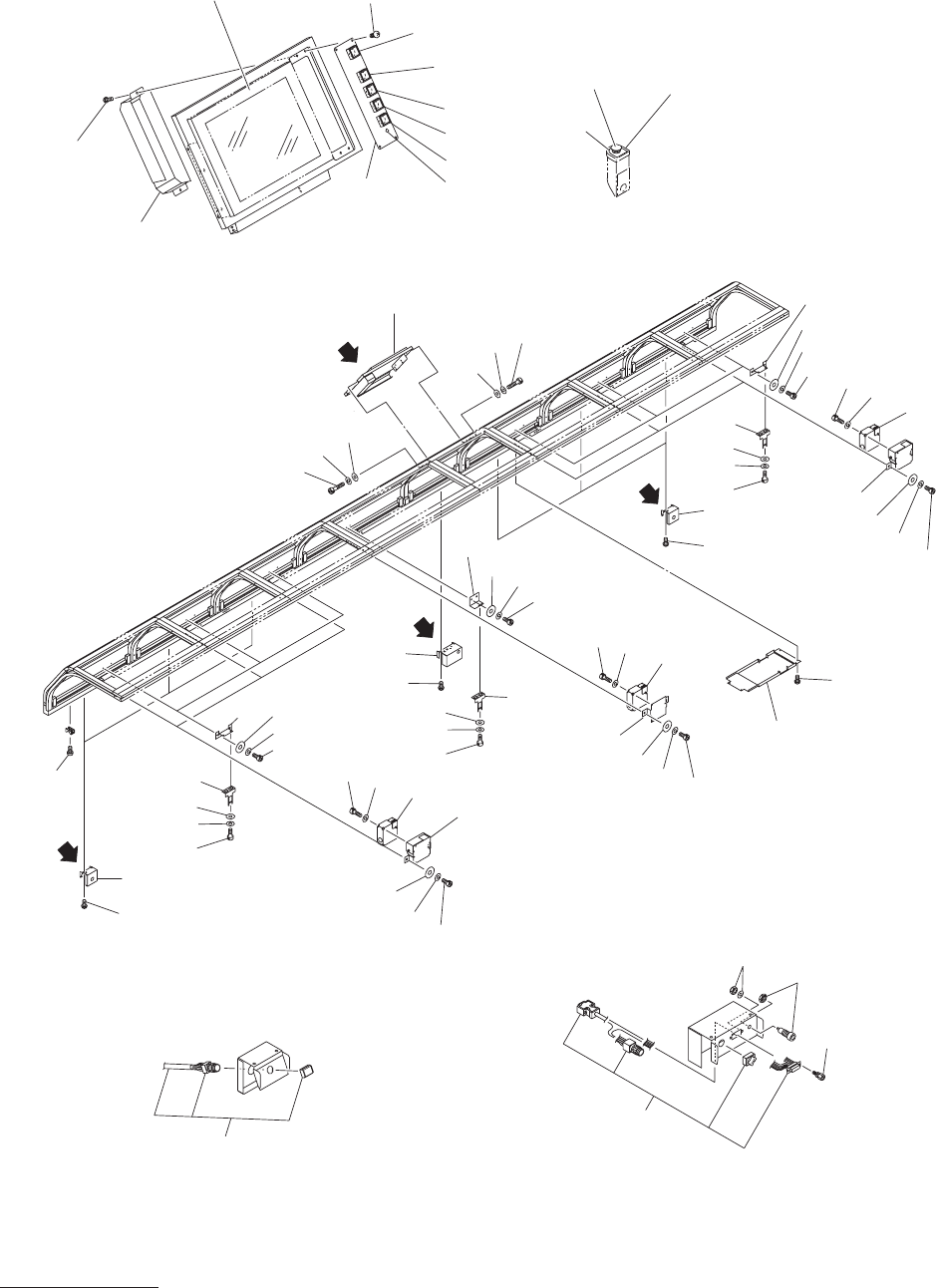

フィーダキャリッジカバー部
FEEDER CARRIAGE COVER SECTION
Fig. MB-6
後面操作パネル
Rear Operation Panel
515
530
543
VIEW "A"
VIEW "B"
501
524
523
522
522
A
B
C
B
512
532
530
513
516
526
530
532
513
530
532
512
515
511
504
534
527
523
528
520
See Fig.MB-
1
Key No.20
506
505
534
504
521
510
531
530
529
515
509
530
543
527
523
528
534
523
524
564
561
560
562
560
527
523
528
VIEW "C"
511
565
563
551
552
.
553
.
555
554
555
556
502
558
557
.
535
536
533
See Fig.MA-10
Key No.902
530
543
516
526
530
532
516
526
530
532
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
227
MB-6
501 630 119 3700 PANEL(LCD) 1 801MB-110-501
502 630 119 3489 PANEL(CNL-SW) 1 801MB-110-502
504 630 097 4690 PANEL 6 801MB-110-504
505 630 097 4706 PANEL 1 801MB-110-505
506 630 116 4304 COVER(CABLE) 1 801MB-110-506
509 630 138 3040 BRACKET(SENSOR) 1 801MB-110-509
510 630 138 3057 BRACKET(ACTUATOR) 1 801MB-110-510
511 630 133 2536 BRACKET 6 801MB-110-511
512 630 133 2543 BRACKET 6 801MB-110-512
513 630 000 7633 BOLT,HEX-SCT 12 801MB-110-513
515 630 124 9865 SWITCH,LIMIT 7 SQ4(YSOL5),SQ5(YSOL6),
SQ12(YSOL10),SQ10(YSOL12),
SQ13(YSOL11),SQ6(YSOL7),
SQ7(YSOL8) 801MB-110-515
516 630 073 5727 SWITCH,LIMIT 7 801MB-110-516
520 411 051 2804 SCR TRS 4X8 4 801MB-110-520
521 411 043 6803 SCR PAN 5X12 18 801MB-110-521
522 630 000 7794 BOLT,HEX-SCT 4 801MB-110-522
523 411 141 6705 WASHER SPR 5 18 801MB-110-523
524 411 141 4107 WASHER V 5X10X1 4 801MB-110-524
526 630 000 7619 BOLT,HEX-SCT 14 801MB-110-526
527 630 001 0220 WASHER 14 801MB-110-527
528 630 000 7763 BOLT,HEX-SCT 14 801MB-110-528
529 630 000 7657 BOLT,HEX-SCT 2 801MB-110-529
530 411 141 2905 WASHER SPR 4 49 801MB-110-530
531 630 001 0213 WASHER 2 801MB-110-531
532 411 141 4008 WASHER V 4X9X0.8 26 801MB-110-532
533 411 140 8304 SCR BIN 4X10 4 801MB-110-533
534 411 113 9109 SCR TRS 5X10 14 801MB-110-534
535 630 119 3717 COVER(SWITCH) 1 801MB-110-535
536 411 051 1708 SCR TRS 4X6 2 801MB-110-536
543 630 000 7695 BOLT,HEX-SCT 21 801MB-110-543
551 630 033 4609 SWITCH,BUTTON 1 SPB2 801MB-110-551
552 630 033 4586 DISPLAY ELEMENT 1 LED2 801MB-110-552
553 630 033 4593 ACCESSORY,SW 1 801MB-110-553
554 630 000 2515 SWITCH,BUTTON 1 SPB21 801MB-110-554
555 630 000 2713 SWITCH,BUTTON 2 SPB20(LED20),SPB22(LED22)
801MB-110-555
556 630 000 2744 SWITCH,BUTTON 1 SPB23(LED23) 801MB-110-556
557 630 000 0382 ACCESSORY,SW 1 801MB-110-557
558 407 035 4704 LED SLP-721F 1 LED21 801MB-110-558
560 630 068 8375 ACCESSORY,CONN 2 801MB-110-560
561 630 121 8915 ASSY,CONNECTOR 1 SW5 801MB-110-561
562 630 089 0556 SOCKET 1 801MB-110-562
563 630 093 6445 ASSY,SWITCH,BUTTON 2 SPB7,SPB8 801MB-110-563
564 630 093 6407 ASSY,SWITCH,BUTTON 6 SPB31(LED31) - SPB36(LED36)
801MB-110-564
565 630 114 5167 NAME PLATE,NOTICE 2
