MODEL TCM-X210 0506-002 200 カバー部 COVER SECTION Fig. MA-1 本体カバー Body Cover 23 1 1 1 1 1 1 1 1 1 1 21 20 19 18 24 1 1 1 1 10 1 1 1 1 30 1 1 1 1 1 1 31 32 33 7 1 1 38 43 42 41 39 40 1 1 9 1 1 24 25 1 1 1 1 26 15 1 1 17 16 4…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
199
LB-2
106 630 116 9606 PIPE FITTINGS 2 801LB-110-106
107 630 118 4074 TUBE 1 801LB-110-107
109 630 009 3544 PIPE FITTINGS(BAND) 1 801LB-110-109
110 411 141 4107 WASHER V 5X10X1 3 801LB-110-120
111 411 141 6705 WASHER SPR 5 3 801LB-110-111
112 630 000 7763 BOLT,HEX-SCT 3 801LB-110-112
121 630 110 5260 BRACKET 1 801LB-110-121
122 630 110 5277 BRACKET 1 801LB-110-122
123 411 141 4107 WASHER V 5X10X1 4 801LB-110-123
124 411 141 6705 WASHER SPR 5 4 801LB-110-124
125 630 000 7763 BOLT,HEX-SCT 4 801LB-110-125
126 630 001 0220 WASHER 4 801LB-110-126
127 411 141 6705 WASHER SPR 5 4 801LB-110-127
128 630 000 7770 BOLT,HEX-SCT 4 801LB-110-128
130 630 110 5291 COVER 1 801LB-110-130
131 411 140 8007 SCR TRS 5X6 8 801LB-110-131
132 630 087 1203 ACCESSORY,WIRING 1 801LB-110-132

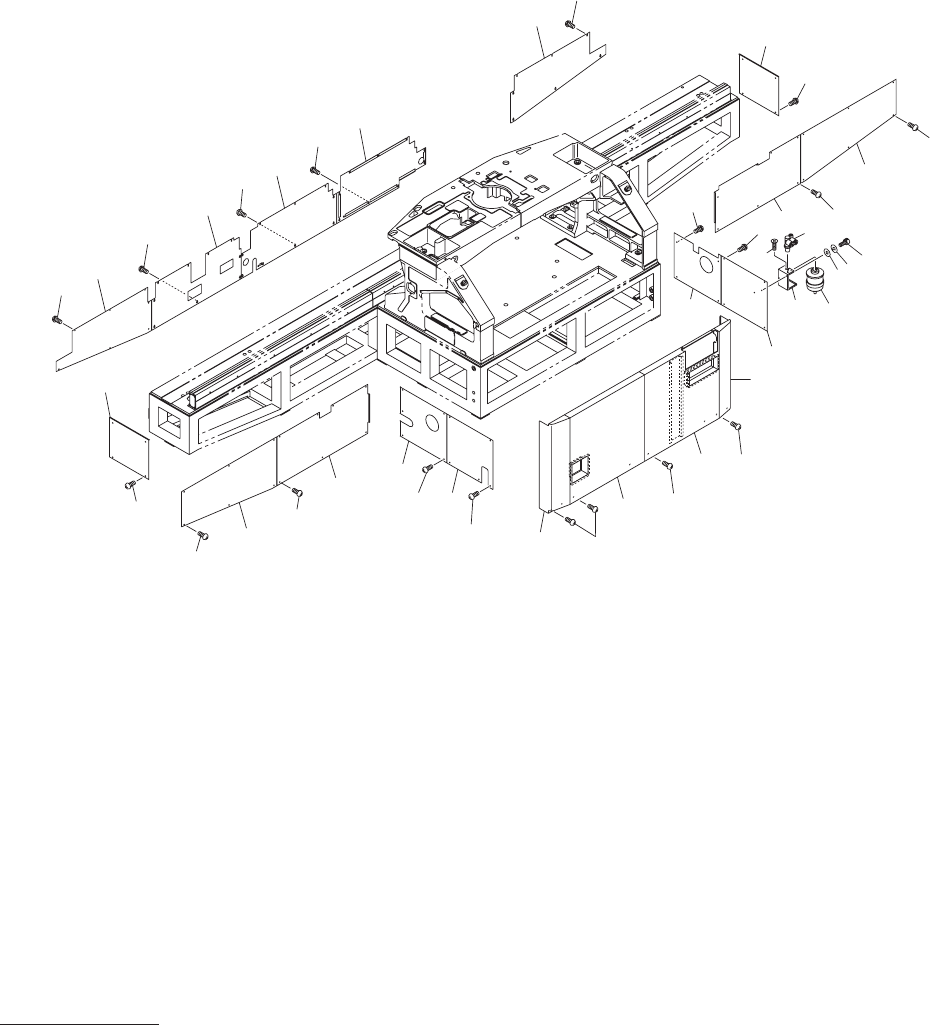

MODEL TCM-X210
0506-002
200
カバー部
COVER SECTION
Fig. MA-1
本体カバー
Body Cover
23
11
11
11
11
11
21
20
19
18
24
11
11
10
11
11
30
11
11
11
31
32
33
7
11
38
43
42
41
39
40
11
9
11
24
25
11
11
26
15
11
17
16
45
39-01
.
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
201
MA-1
7 630 109 3529 COVER(RFR) 1 801MA-110-007
9 630 119 9412 COVER(RFR) 1 801MA-110-009
10 630 116 9880 COVER(FSL) 1 801MA-110-010
11 411 113 9000 SCR TRS 5X8 101 801MA-110-011
15 630 116 9897 COVER(FSL) 1 801MA-110-015
16 630 109 3543 COVER(RFL) 1 801MA-110-016
17 630 120 0279 COVER(RFL) 1 801MA-110-017
18 630 097 2924 COVER(RBL) 1 801MA-110-018
19 630 120 4741 COVER(RBL) 1 801MA-110-019
20 630 117 0855 COVER(RBC) 1 801MA-110-020
21 630 122 2189 COVER(RBC) 1 801MA-110-021
23 630 119 5216 COVER(RBR) 1 801MA-110-023
24 630 120 0705 COVER(RS) 2 801MA-110-024
25 630 123 1983 COVER(FSR) 1 801MA-110-025
26 630 099 6579 COVER 1 801MA-110-026
30 630 095 1127 COVER 1 801MA-110-030
31 630 097 2139 COVER(ML) 1 801MA-110-031
32 630 098 1223 COVER(MR) 1 801MA-110-032
33 630 097 7790 COVER 1 801MA-110-033
38 630 122 4671 PIPE FITTINGS 1 801MA-110-038
39 630 123 2225 AIR CLEAN EQPT 1 801MA-110-039
39 -01 630 130 8203 AIR CLEAN EQPT 1 AMC-EL3
40 630 123 2164 BRACKET 1 801MA-110-040
41 411 141 4107 WASHER V 5X10X1 2 801MA-110-041
42 411 141 6705 WASHER SPR 5 2 801MA-110-042
43 630 000 7756 BOLT,HEX-SCT 2 801MA-110-043
45 411 034 7208 SCR FLT 3X8 3 801MA-110-045
