MODEL TCM-X210 0306-001 260 100V 電源部 100V POWER SUPPL Y SECTION Fig. RE-4 100V 電源４ 100V Power Supply 4 351 352 353 . 399 398 397 See Fig.RE-1 Key No.65 399 398 396 399 398 396 354 395
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
259
RE-3
251 402 061 5206 WIRE WOUND 100 JB 80W 1 801RE-110-251
252 630 115 8259 COVER 1 801RE-110-252
253 630 127 0937 TERMINAL 10 801RE-110-253
254 630 127 0975 ACCESSORY,WIRING 1 801RE-110-254
255 630 127 0982 ACCESSORY,WIRING 1 801RE-110-255
256 630 127 0999 ACCESSORY,WIRING 1 801RE-110-256
257 630 091 1749 BRACKET,WIRING 3 801RE-110-257
258 630 058 8460 ACCESSORY,WIRING 1 801RE-110-258
259 630 068 9723 RELAY 10 K30,K35,K36,K31,K32,K33,K34,K37,
K38,K9 801RE-110-259
260 630 049 2064 SOCKET 10 801RE-110-260
261 630 085 4152 RELAY 1 K62 801RE-110-261
296 411 113 7501 SCR TRS 4X10 2 801RE-110-296
297 411 043 5004 SCR PAN 4X8 2 801RE-110-297
298 411 008 1706 WASHER SPR 4 2 801RE-110-298
299 411 119 2104 WASHER V 4X9X0.8 2 801RE-110-299
MODEL TCM-X210
0306-001
260
100V
電源部
100V POWER SUPPLY SECTION

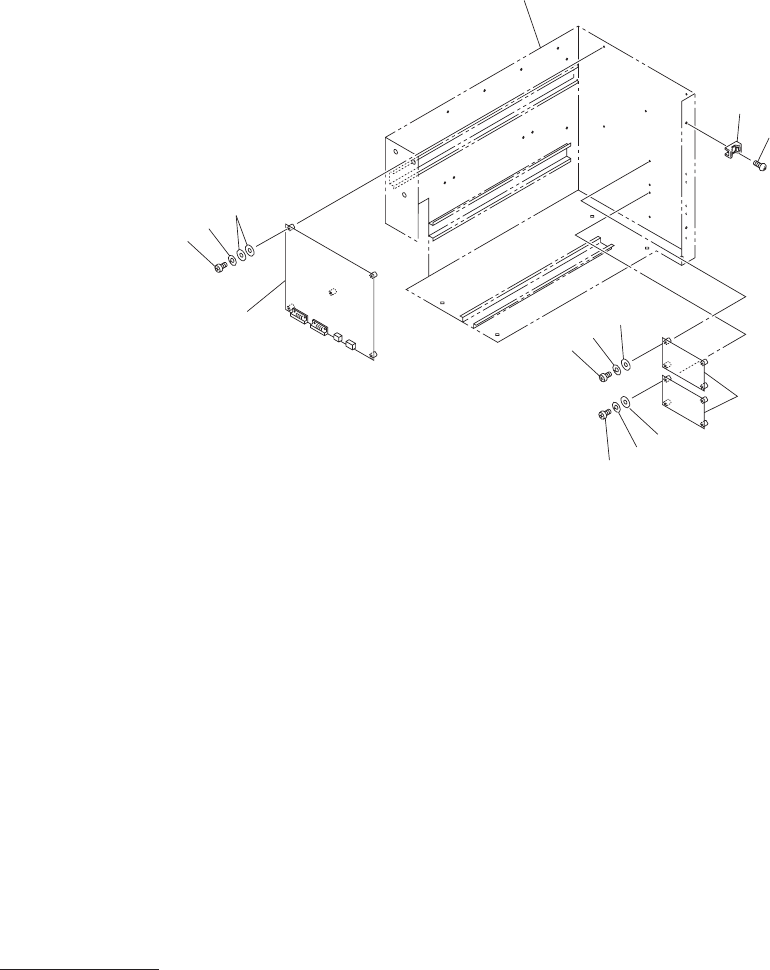

Fig. RE-4 100V
電源４
100V Power Supply 4
351
352
353
.
399
398
397
See Fig.RE-1
Key No.65
399
398
396
399
398
396
354
395
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
261
RE-4
351 630 090 1078 P.C.B,MOUNT(P.C.B.) 1 UA54*001*0000 801RE-110-351
352 630 087 7816 PROGRAM ROM 1 #CPLD CZXYE2 801RE-110-352
353 630 109 9446 P.C.B,MOUNT 2 #UB01(CONN) 801RE-110-353
354 630 048 3833 MECH PARTS(MOUNTING BASES 2 801RE-110-354
395 411 113 7501 SCR TRS 4X10 2 801RE-110-395
396 411 040 6202 SCR PAN 3X10 8 801RE-110-396
397 411 162 1604 SCR PAN 3X20 5 801RE-110-397
398 411 086 4408 WASHER SPR 3 13 801RE-110-398
399 411 119 1909 WASHER V 3X7X0.5 18 801RE-110-399
