MODEL TCM-X210 0306-001 244 200V 電源部１ 200V POWER SUPPL Y SECTION 1 Fig. RC-1 200V 電源１ 200V Power Supply 1 55 59 60 55 58 53 59 65 54 62 52 56 66 65 51 57 99 98 97 97 98 99 61
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
243
51 630 086 3857 BREAKER 1 Q200 801RA-110-051
52 630 094 1500 CIRCUIT PROTECTOR 1 Q204 801RA-110-052
53 630 083 5441 HANDLE 1 801RA-110-053
54 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 801RA-110-054
55 630 127 0920 TERMINAL 2 801RA-110-055
56 630 071 3343 COVER 5 801RA-110-056
57 630 071 3350 COVER 1 801RA-110-057
58 630 115 5760 COVER 1 801RA-110-058
59 630 115 4480 BRACKET 1 801RA-110-059
60 630 124 5669 PANEL 1 801RA-110-060
61 630 127 0913 TERMINAL 6 801RA-110-061
62 630 127 0968 ACCESSORY,WIRING 1 801RA-110-062
63 630 127 1019 ACCESSORY,WIRING 3 801RA-110-063
64 630 089 5377 ACCESSORY,WIRING 1 801RA-110-064
65 630 091 1749 BRACKET,WIRING 2 801RA-110-065
66 630 093 0764 RAIL,WIRING 1 801RA-110-066
67 630 115 5883 BRACKET 1 801RA-110-067
68 630 083 5601 ACCESSORY,WIRING 1 801RA-110-068
69 630 048 3833 MECH PARTS(MOUNTING BASES 3 801RA-110-069
83 411 113 7501 SCR TRS 4X10 3 801RA-110-083
84 411 140 8007 SCR TRS 5X6 2 801RA-110-084
85 630 000 7626 BOLT,HEX-SCT 6 801RA-110-085
86 411 141 2905 WASHER SPR 4 6 801RA-110-086
87 411 141 4008 WASHER V 4X9X0.8 2 801RA-110-087
88 630 001 0213 WASHER 4 801RA-110-088
89 411 042 3001 SCR PAN 4X10 2 801RA-110-089
90 411 043 5004 SCR PAN 4X8 5 801RA-110-090
91 411 008 1706 WASHER SPR 4 7 801RA-110-091
92 411 119 2104 WASHER V 4X9X0.8 7 801RA-110-092
93 411 174 6604 SCR PAN+SW+W 5X10 2 801RA-110-093
94 630 000 7510 BOLT,HEX-SCT 2 801RA-110-094
95 411 141 2806 WASHER SPR 3 2 801RA-110-095
96 630 001 0206 WASHER 2 801RA-110-096
97 630 000 7756 BOLT,HEX-SCT 4 801RA-110-097
98 411 141 6705 WASHER SPR 5 4 801RA-110-098
99 630 001 0220 WASHER 4 801RA-110-099
RA-1
MODEL TCM-X210
0306-001
244

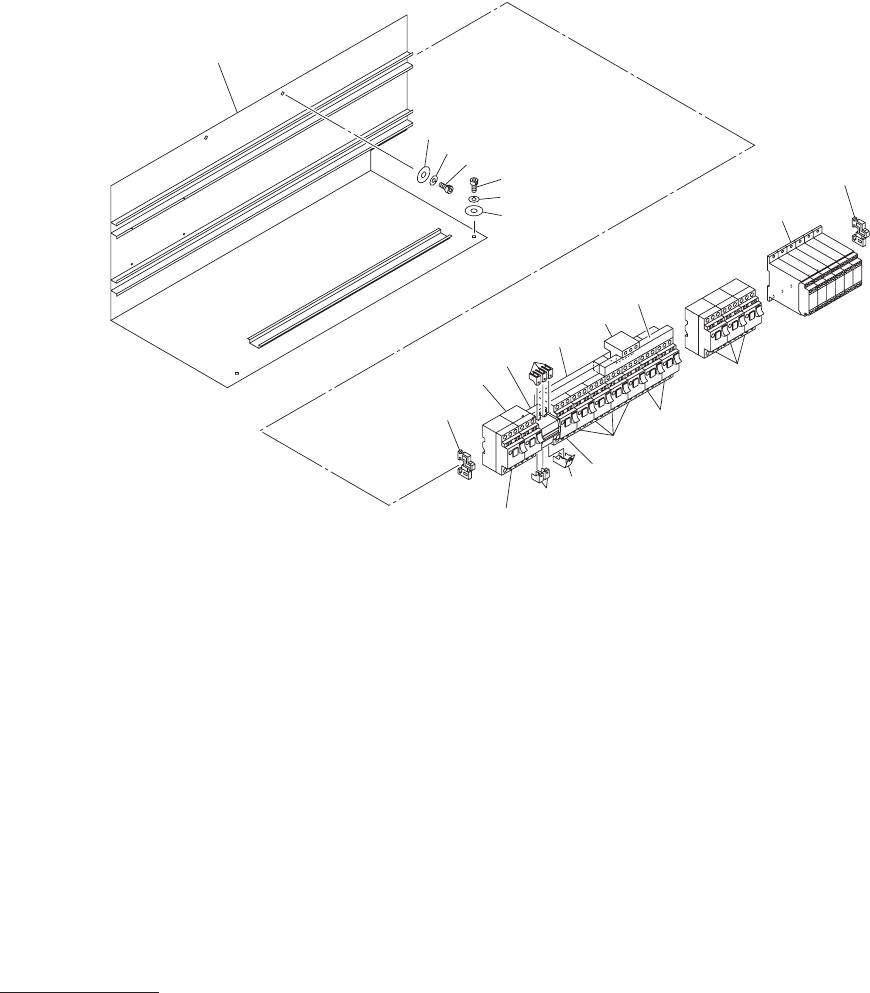

200V
電源部１
200V POWER SUPPLY SECTION 1
Fig. RC-1 200V
電源１
200V Power Supply 1
55
59
60
55
58
53
59
65
54
62
52
56
66
65
51
57
99
98
97
97
98
99
61
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
245
RC-1
51 630 106 7209 CIRCUIT PROTECTOR 4 Q211,Q212,Q213,Q214
801RC-110-051
52 630 106 7186 CIRCUIT PROTECTOR 1 Q207 801RC-110-052
53 630 085 8792 ACCESSORY,WIRING 1 801RC-110-053
54 630 120 6806 CIRCUIT PROTECTOR 1 Q203 801RC-110-054
55 630 091 1749 BRACKET,WIRING 2 801RC-110-055
56 630 106 7216 CIRCUIT PROTECTOR 1 Q210 801RC-110-056
57 630 106 7193 CIRCUIT PROTECTOR 2 Q215,Q216 801RC-110-057
58 630 106 7186 CIRCUIT PROTECTOR 3 Q217,Q218,Q219 801RC-110-058
59 630 092 8648 WIRE PARTS 2 801RC-110-059
60 630 116 8753 RELAY 6 K11,K12A,K12B,K13A,K13B,K14
801RC-110-060
61 630 115 3711 PANEL 1 801RC-110-061
62 630 106 7179 CIRCUIT PROTECTOR 1 Q202 801RC-110-062
65 630 071 3343 COVER 5 801RC-110-065
66 630 071 3350 COVER 1 801RC-110-066
97 630 000 7756 BOLT,HEX-SCT 4 801RC-110-097
98 411 141 6705 WASHER SPR 5 4 801RC-110-098
99 630 001 0220 WASHER 4 801RC-110-099
