10
Machine Areas
The figure below provides a diagrammatic overview of the individual areas
of a SIPLACE placement station.
The terms used in the figure to describe these areas are also used in the
texts in the user interface and in the User Manual.
The PCB conveyor is divided into the following sections:
– Input conveyor
– Processing conveyor 1 (PC1)
– Intermediate conveyor
– Processing conveyor 2 (PC2)
– Output conveyor
Direction of transport
Input
area
Location 3
Location 1
Location 2
Gantry 4
Gantry 3
Gantry 2
Gantry 1
Conveyor 2
(left)
Conveyor 1
(right)
Location 4
Processing
area PC1
Intermedi-
ate area
Processing
area PC2
Output
area
11
Safety devices
Emergency stop mushroom-head push-buttons
If serious problems occur:
The placement system will stop immediately. Attempt to
eliminate the problem. If this is not possible, call the line
engineer.
Continue processing
Turn the emergency stop mushroom-head push-button to the left to
release it.
Press the Start key.
Protective covers
Make sure that all covers are closed when the machine is operating. As
soon as a cover is opened, the machine will stop and an error message of
the following type may be displayed during placement:
General error: 270 PCB interrupted due to EMERGENCY STOP
Transp.: 1 DEV:1 #E:1
Close the covers and press the Start key.
a Emergency stop mushroom-head push-button, input side
s Emergency stop mushroom-head push-button, output side
d Protective cover, input side, right
f Front panel
g Protective cover, output side, right
h Guard, output side
j Protective cover, output side, right
k Protective cover, input side, left
l Guard, input side
Á
F
12
Menu control of the machine
The menu control and the user interface of the machine are based on the
Microsoft Windows standard. You can initiate actions in the individual
menus by using
– function keys F1 to F12 on the keyboard,
– the trackball and the left-hand mouse button or
– the touchscreen.
– You can open pull-downs and their submenus by pressing the Alt-key in
combination with a ’hot key.

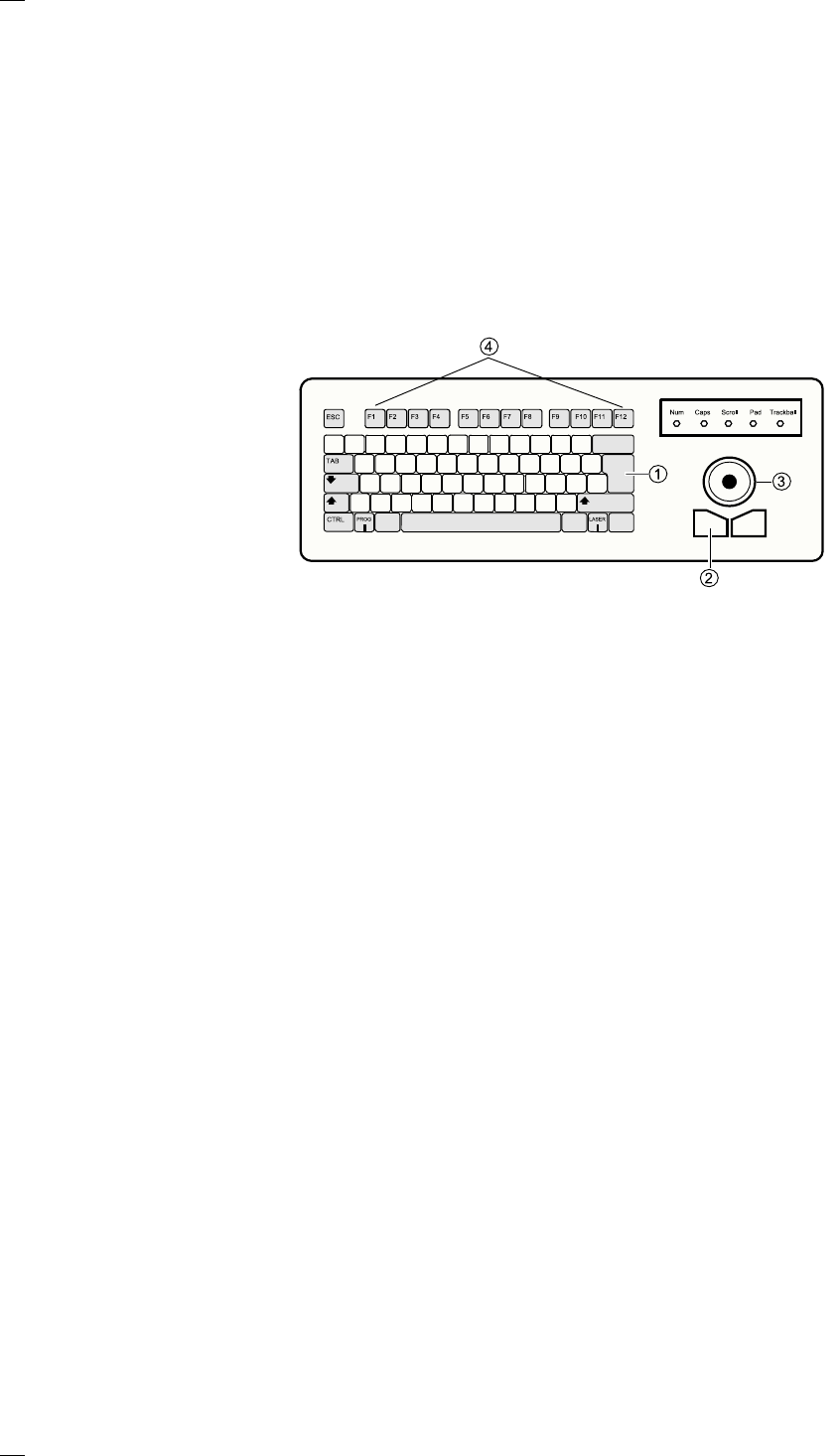

Keyboard with integrated mouse (trackball)
IBM-compatible
keyboard with
German
character set
a Return key
s Left-hand mouse button
d Trackball
f Function keys F1 to F12
Touchscreen
As an alternative to the trackball you can position the mouse pointer on
the screen and operate it by touching the screen with your finger.
