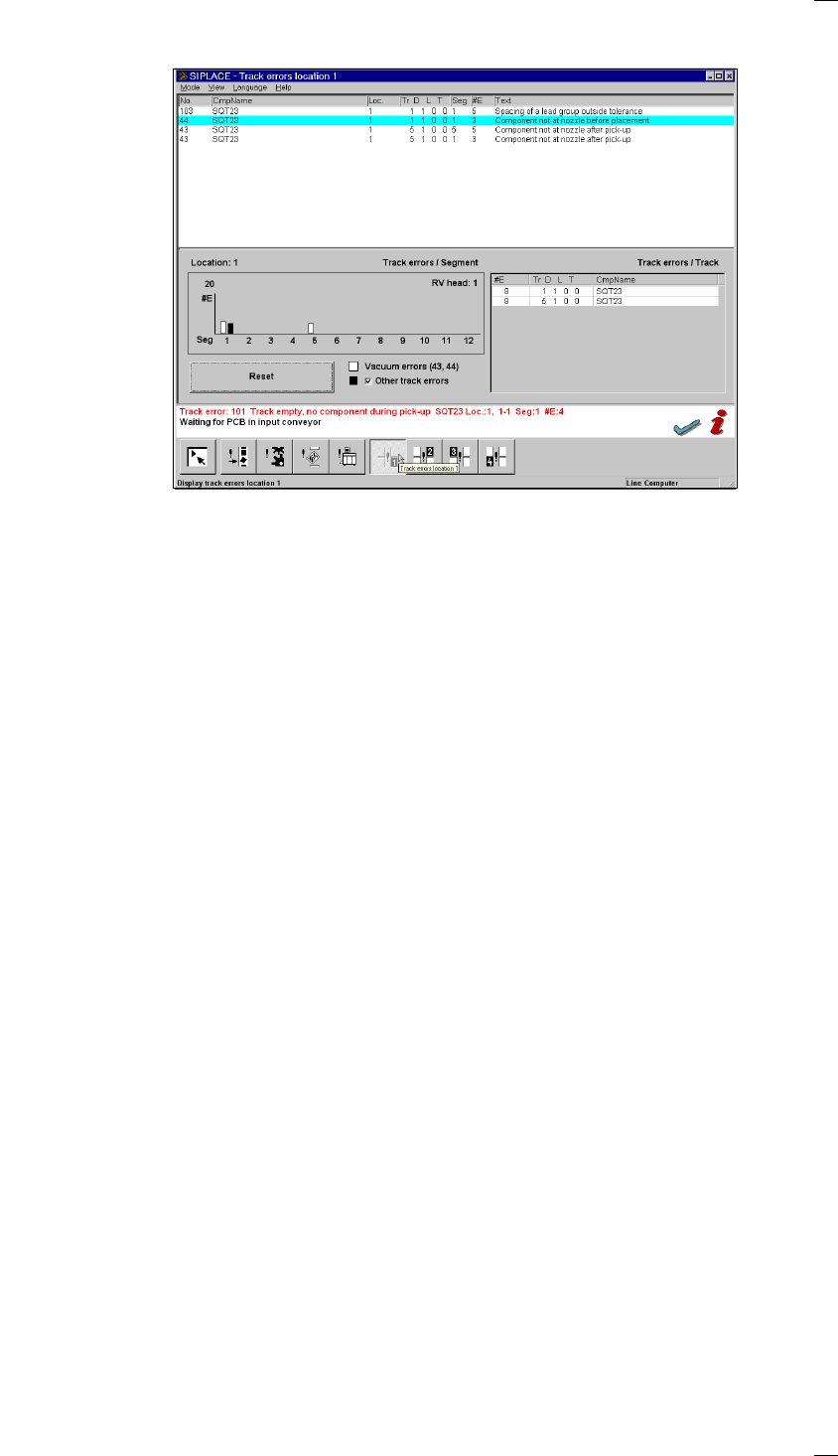

’Track errors location X’ menu

The “Track errors view” menu contains a general overview of all the track

errors. The “Track errors location X” menu also displays the errors sepa-

rately for locations 1 – 4. This list contains all track errors, apart from

‘Track empty’. The errors are also totaled and then displayed in the “Track

errors / Segment’ bar chart, sorted by segment number.

Vacuum errors 43 and 44 take the form of white bars. All other errors are

shown as black bars. The black error bars can be hidden, as required.

The track errors are not deleted when tracks or locations are filled,

although they can be deleted using the “Reset” button. The counter is

reset when a new set-up is loaded.

The tracks are displayed, sorted in ascending frequency of errors, in the

table beside the “Track errors / Segment” bar chart. This provides the rele-

vant data in a format suitable for error analysis.

’Feeders’ menu

The Feeders menu has four submenus for querying or checking the status

of all feeder modules:

– Displaying empty tracks and setting them full

– Omit components. (This menu can only be accessed from the ’Line engi-

neer’ operator control level or higher).

– Displaying magazines and changing inventory levels

Displaying and vibrating linear feeders

Type S-25 HM machine with an MTC (matrix tray changer) installed also

have a Matrix tray changer location 1 and/or Matrix tray changer location 3

submenu.

’Display and refill empty tracks’ menu

The empty tracks of feeder modules are displayed in this menu. After fill-

ing, you can set the tracks to full. Depending on the option which has been

activated, the following submenus will be called:

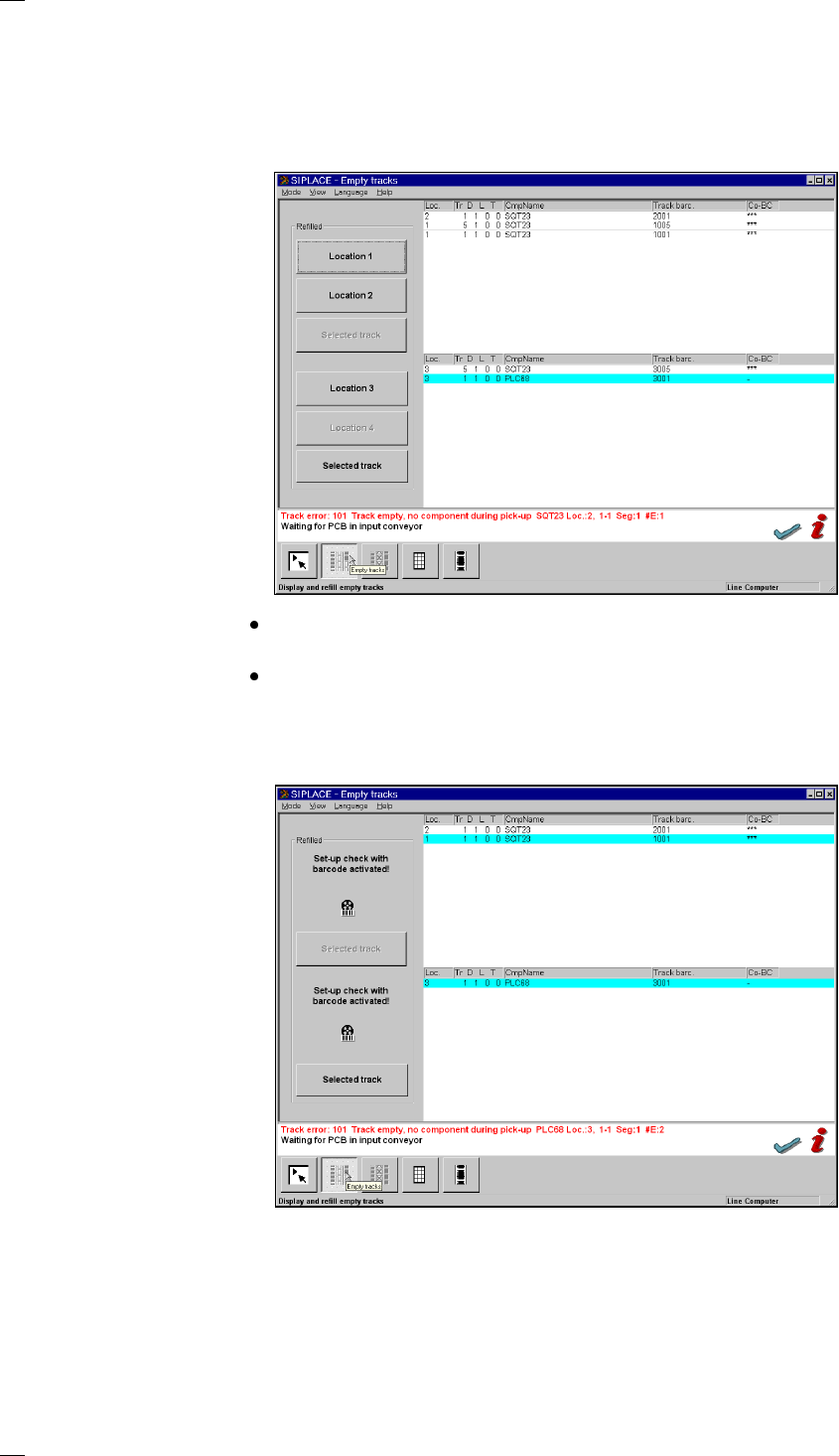

’Display empty tracks without component verification’

When you click on the button for location 1, 2, 3 or 4, the entire location

which you selected will be set to full.

When you select a particular feeder module in the list section and then

click on the Selected track button, the individual track will be set to full.

’Display empty tracks with component verification’

If the Component verification with barcode option has been configured

and activated, the following menu will appear:

Within this menu, locations 1 to 4 or individual tracks which have been

given a barcode cannot be set to full. Apart from displaying the empty

tracks, this menu also allows to individually set to full those empty tracks

which have not been provided with a barcode. Tracks which do not have a

component barcode are indicated by a dash in the CO-BC column. The

Selected track button is activated here.

’Display magazines and change inventory levels’ menu

This menu only appears for S-25 HM and F machines.

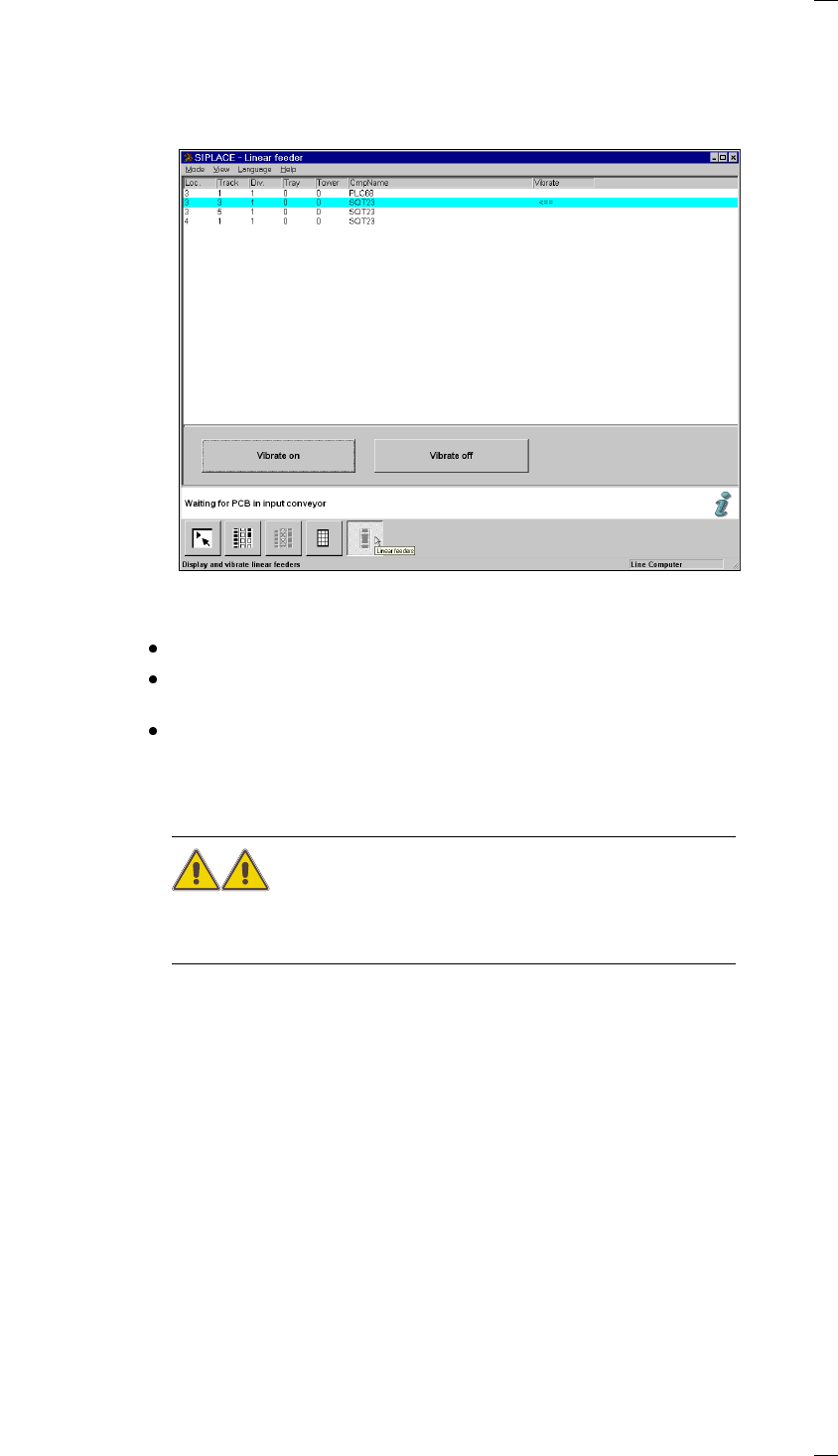

’Display linear feeder and vibrate’ menu

When you have filled a linear feeder, you can use this menu to select it

and turn vibration on.

Select the linear feeder from the list.

Click on the Vibrate on button. The arrow in the Vibrate column shows that

the module is being vibrated.

You can stop vibration by clicking on the Vibrate off button.

’Single functions - Gantries 1/2/3/4’ menu

The Single function menu for gantries 1 to 4 are identical.

Only personnel with the corresponding training and qualifi-

cations are permitted to access the Single functions Gantry X (X = 1, 2, 3,

or 4) menu since improper treatment of the machine may result in serious

physical injury and considerable damage to property.

The Single functions Gantry X menu has the following submenus:

– Gantry functions

– Revolver head functions

– Vacuum test revolver head

– Nozzle offset revolver head

– Nozzle configuration

– Nozzle-changer configuration revolver head (if this option has been

installed and configured)
